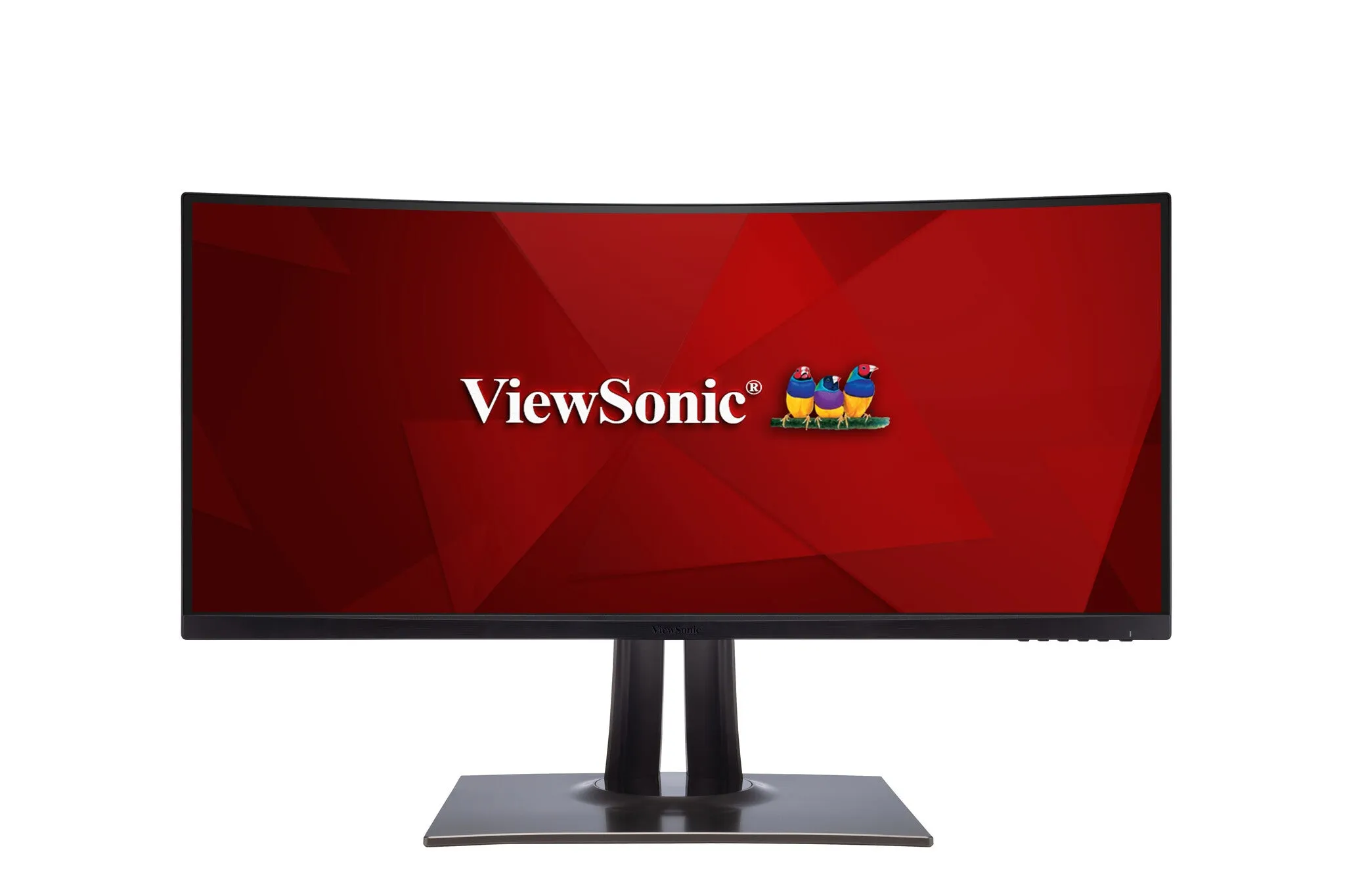

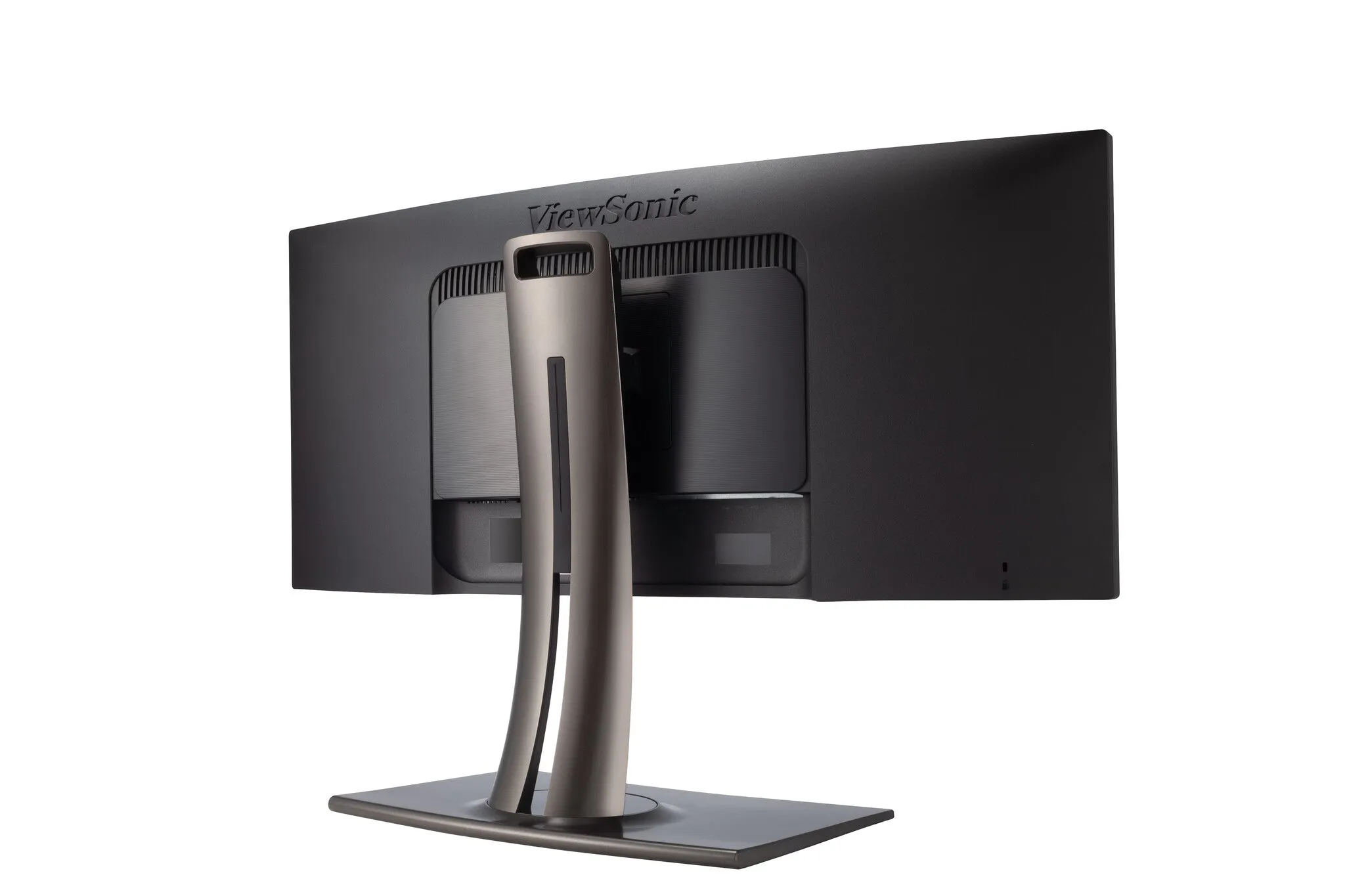

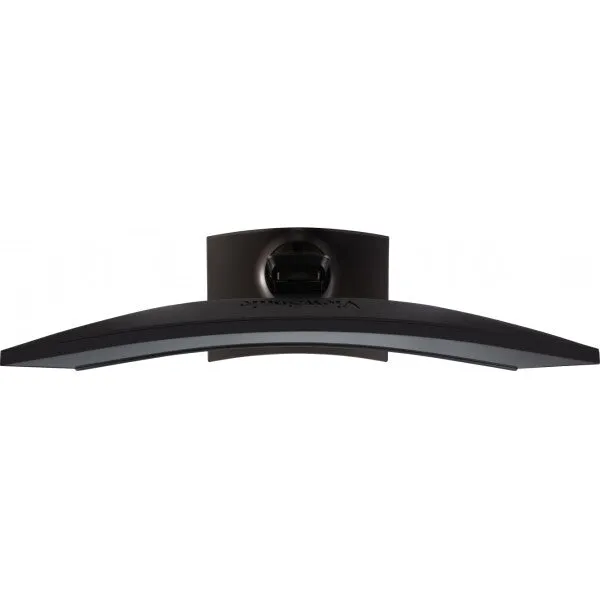

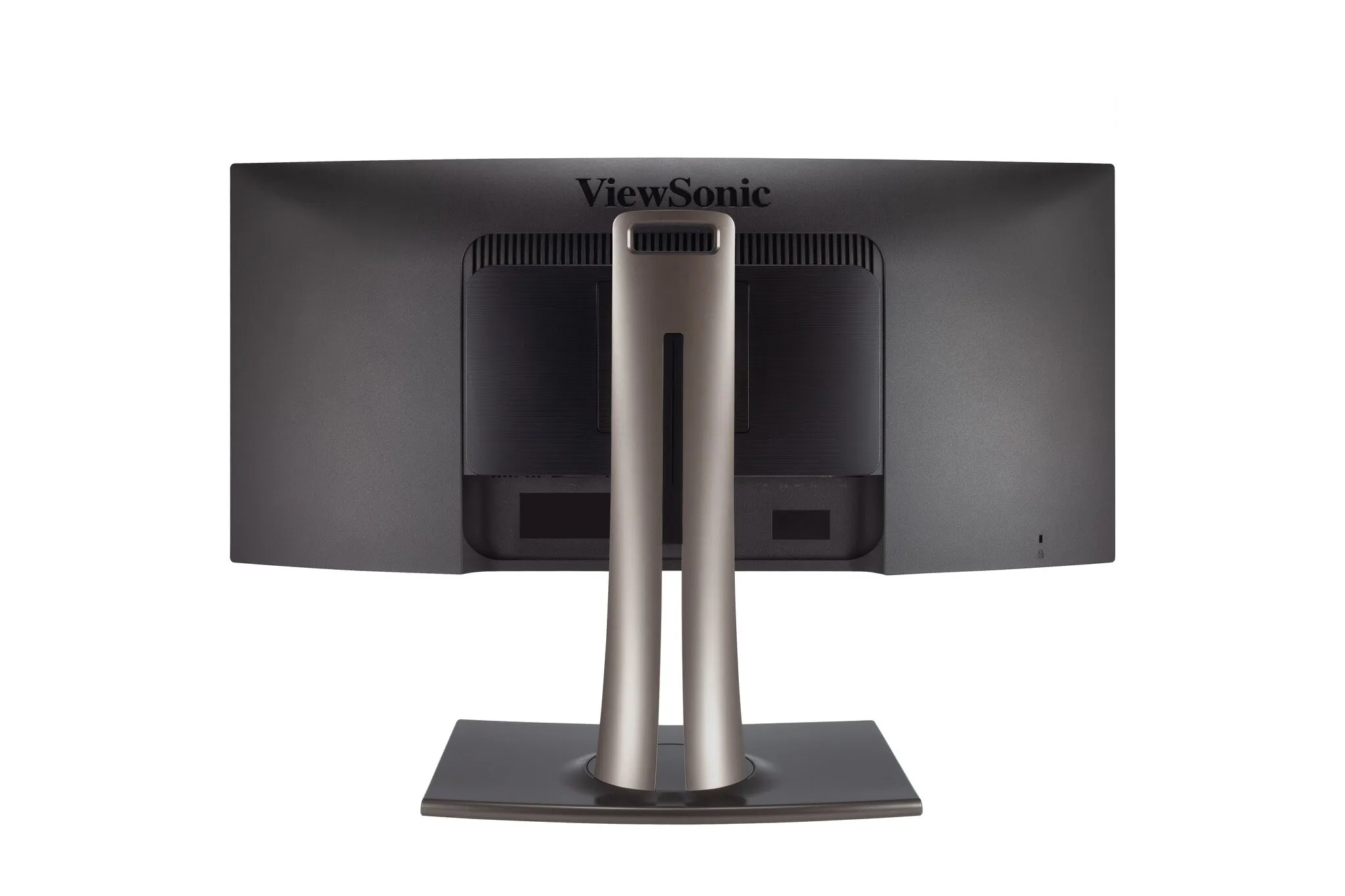

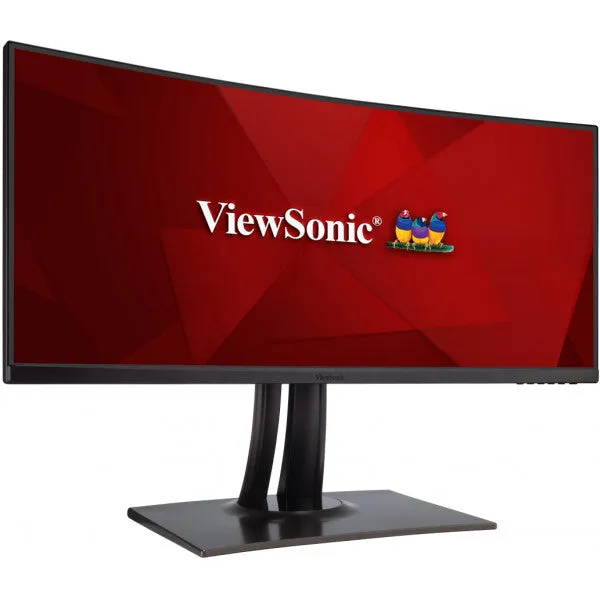

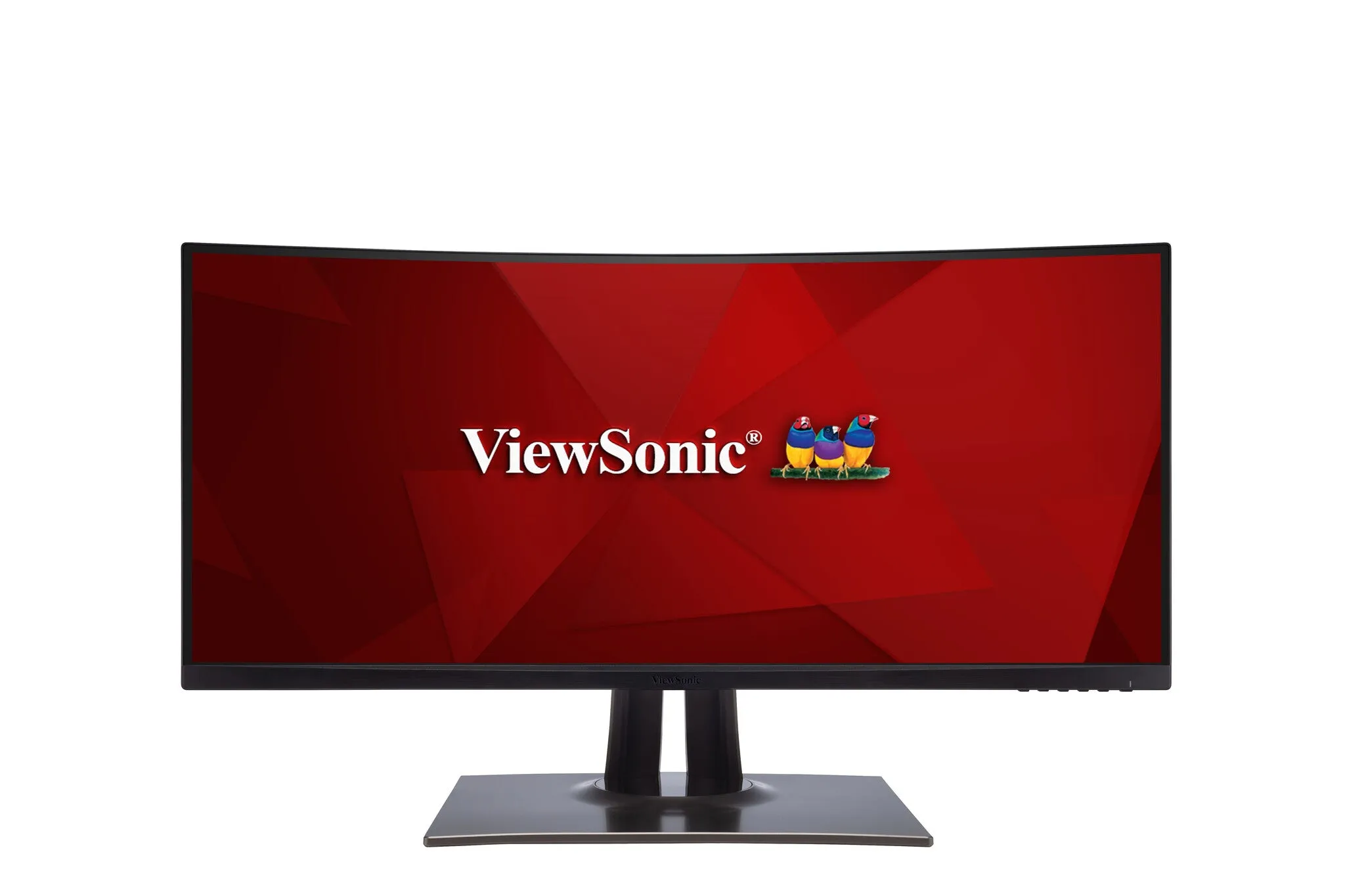

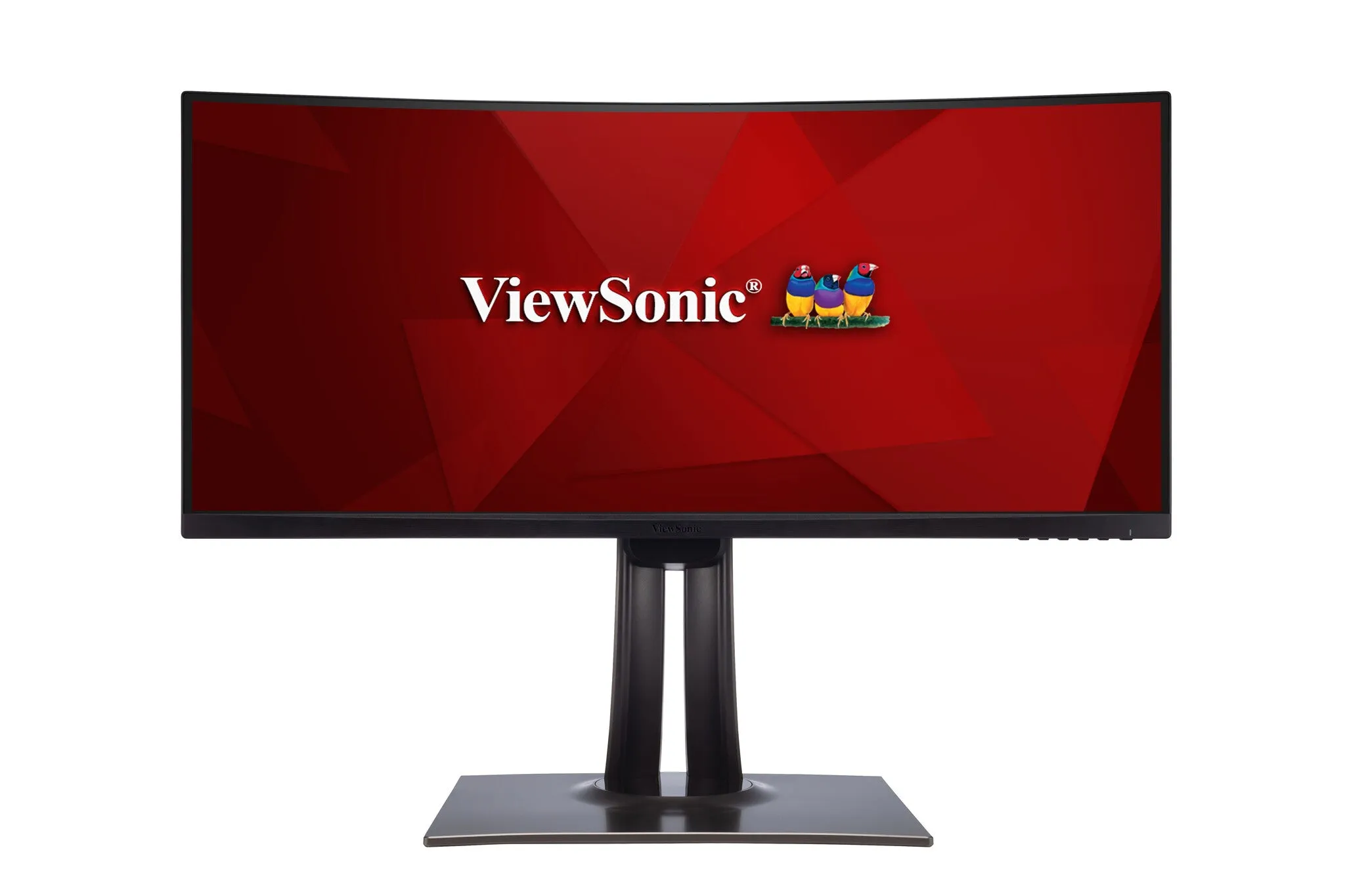

Viewsonic VP Series VP3481. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: Wide Quad HD , Display technology: LED, Response time: 5 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178, Viewing angle, vertical: 178. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
| Display | |
|---|---|
| Adobe RGB coverage | 84% |
| NTSC coverage (typical) | 80% |
| sRGB coverage (typical) | 113% |
| Colour depth | 8 bit |
| Display diagonal (metric) | 86.36 cm |
| Viewable size, vertical | 33.4 cm |
| Viewable size, horizontal | 79.7 cm |
| Vertical scan range | 24 - 75 Hz |
| Horizontal scan range | 15 - 135 kHz |
| Pixel pitch | 0.232 x 0.232 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178 |
| Viewing angle, horizontal | 178 |
| Maximum refresh rate | 100 Hz |
| Contrast ratio (dynamic) | 20000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Supported graphics resolutions | 640 x 350, 640 x 400, 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 1024 x 768 (XGA), 1152 x 864 (XGA ), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA ), 1400 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA ), 1920 x 1080 (HD 1080), 1920 x 1600, 2048 x 1152, 2560 x 1080, 2560 x 1440, 3440 x 1440 |
| Screen curvature rating | 1800R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Display technology | LED |
| HD type | Wide Quad HD |
| Response time | 5 ms |
| Display brightness (typical) | 400 cd/m |
| Panel type | VA |
| Native aspect ratio | 21:9 |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 10 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | CB, CE, CE EMC, WEEE, RoHS, ErP, REACH, UkrSEPRO cTUVus, FCC-B, ICE, Mexico CoC, EPEAT, Energy Star, Mexico Energy CCC, CEL, China RoHS |
| Country of origin | China |
| Feet colour | Black |
| Detachable stand | Yes |
| Front bezel colour | Black |
| Frameless design | Yes |
| Product colour | Black |
| Market positioning | Graphics design |

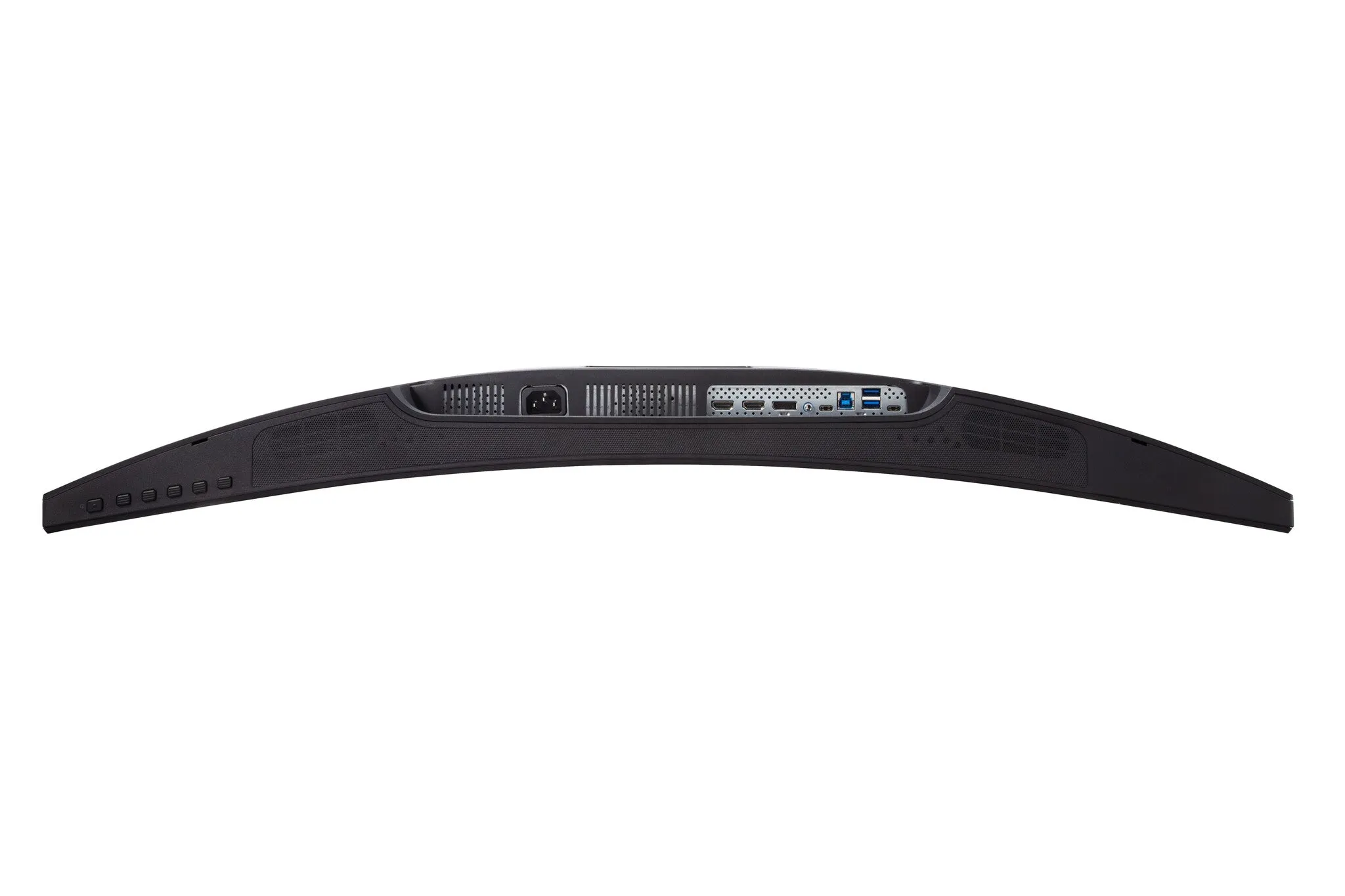

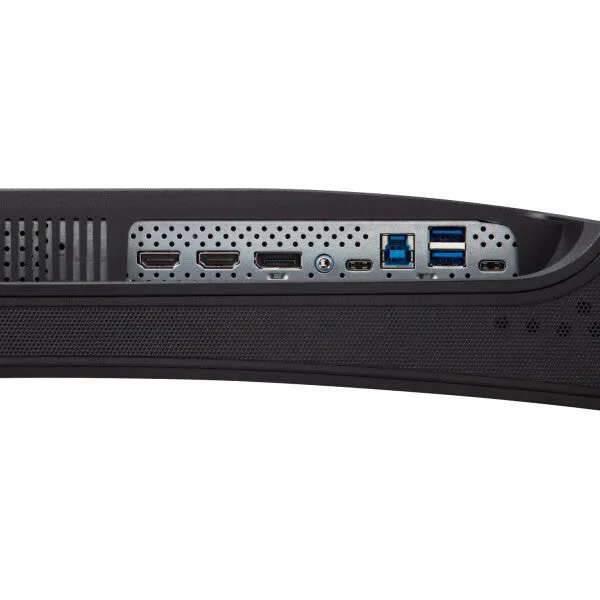

| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio input | No |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| DVI port | No |
| USB Type-C downstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Number of OSD languages | 14 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -6 - 21 |
| Swivel angle range | 0 - 120 |
| Swivelling | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Adjustable height (max) | 13 cm |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 53.5 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 74.5 W |
| Energy consumption (HDR) per 1000 hours | 50 kWh |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 34 kWh |
| Energy efficiency class (SDR) | G |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 C |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 372479 |
| General | |
|---|---|
| Product family | VP Series |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 7.4 kg |
| Height (without stand) | 366 mm |
| Depth (without stand) | 105 mm |
| Width (without stand) | 809 mm |
| Weight (with stand) | 12.1 kg |
| Height (with stand) | 610 mm |
| Depth (with stand) | 299 mm |
| Width (with stand) | 809 mm |
| Packaging data | |
|---|---|
| Package weight | 17.2 kg |
| Package height | 370 mm |
| Package depth | 590 mm |
| Package width | 965 mm |
| Cables included | Audio (3.5mm), DisplayPort, HDMI, USB |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| Touchscreen | No |
