AC750 Wireless Dual Band 4G LTE Router, 3x 10/100Mbps LAN, 1x 10/100Mbps LAN/WAN, 1x SIM Card, 3G/4G, 802.11ac/a/b/g/n, 433Mbps 5GHz 300Mbps 2.4GHz
TP-Link Archer MR200. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 433 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 2G standards: Edge, GPRS, GSM, 3G standards: DC-HSPA , HSPA, HSPA , UMTS. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: DoS, SPI Firewall, IP and MAC Address Binding. Data link protocols: IPv4, IPv6
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.
Great Coverage and Dual Band Wi-Fi

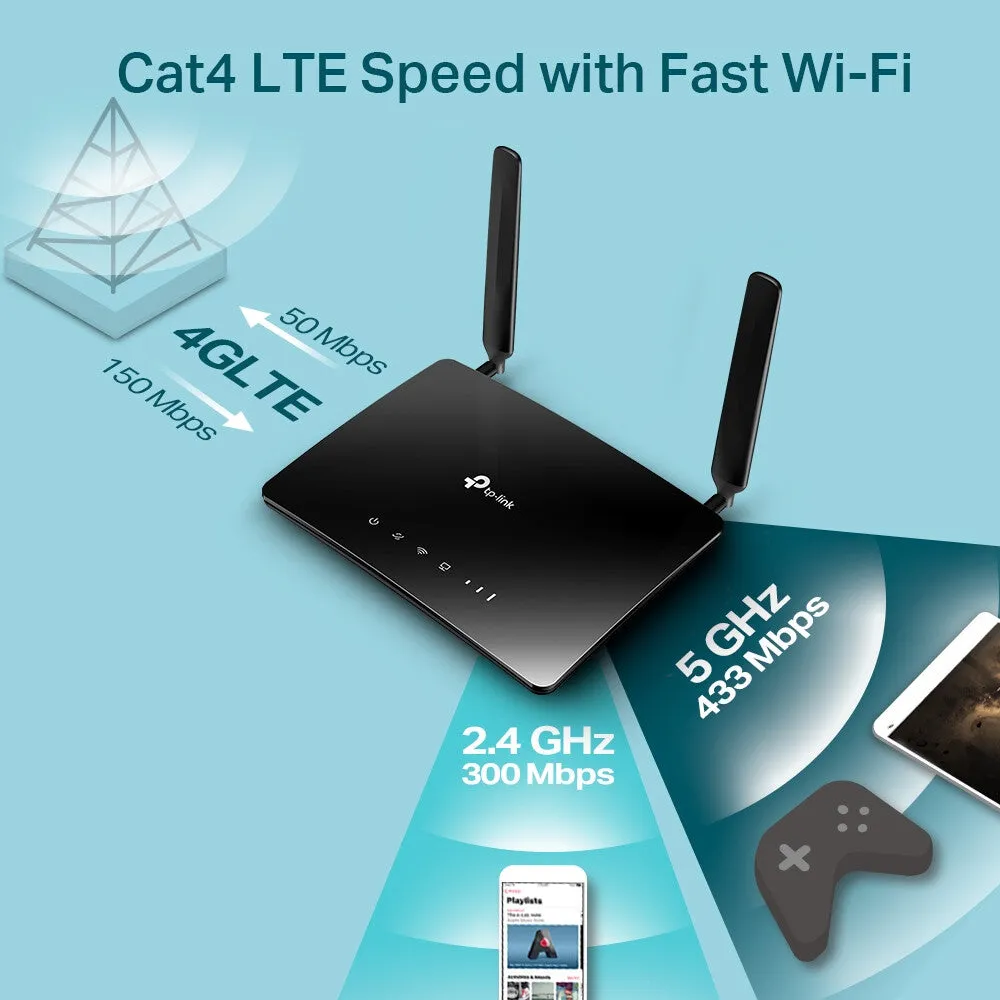

The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks, utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage.
No Configuration Required
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Wi-Fi Where You Need It
The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.
Available WAN Connection
With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.
3 year
| WAN connection |
|---|
| 3G/4G USB modem compatibility | No |
| SIM card slot | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (second band) | 433 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 433 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm11ac HT20: -67dBm11ac HT40: -64dBm11ac HT80 : -60dBm11n HT20: -71dBm11n HT40: -70dBm2.4G: 11g 54M: -76dBm11n HT20: -73dBm11n HT40: -67dBm |
| VPN support | PPTP, L2TP, IPSec |
| VPN Passthrough | Yes |
| VPN server | PPTP VPN, IPSec VPN , OpenVPN |
| Dynamic DNS (DDNS) | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Mobile network |
|---|
| SIM card type | MicroSIM |
| GSM bands supported | 850,900,1800,1900 MHz |
| UMTS bands supported | 900,2100 MHz |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
| 4G standard | LTE |
| 3G standards | DC-HSPA , HSPA, HSPA , UMTS |
| 2G standards | Edge, GPRS, GSM |
| 4G | Yes |
| 3G | Yes |
| Mobile network generation | 4G |
| Ports & interfaces |
|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features |
|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia(WMM)/(WME) | Yes |
| Web-based management | Yes |
| Security |
|---|
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| DoS attack prevention | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Access Control List (ACL) | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Guest access | Yes |
| Firewall | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| Data link protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| General |
|---|
| Product family | Archer |
| Design |
|---|
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Antenna |
|---|
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Antenna design | External |
| Features |
|---|
| Certification | CE, FCC, RoHS |
| Harmonized System (HS) code | 85176990 |
| Power |
|---|
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | AC |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 C |
| Storage temperature (T-T) | -40 - 70 C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements |
|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Weight & dimensions |
|---|
| Width | 202 mm |
| Depth | 141 mm |
| Height | 33.6 mm |
| Packaging data |
|---|
| Package type | Box |
| Package weight | 670 g |
| Package height | 70 mm |
| Package depth | 223 mm |
| Package width | 307 mm |
| Quick start guide | Yes |
| Nano to standard SIM card adapter | Yes |
| Micro to standard SIM card adapter | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
