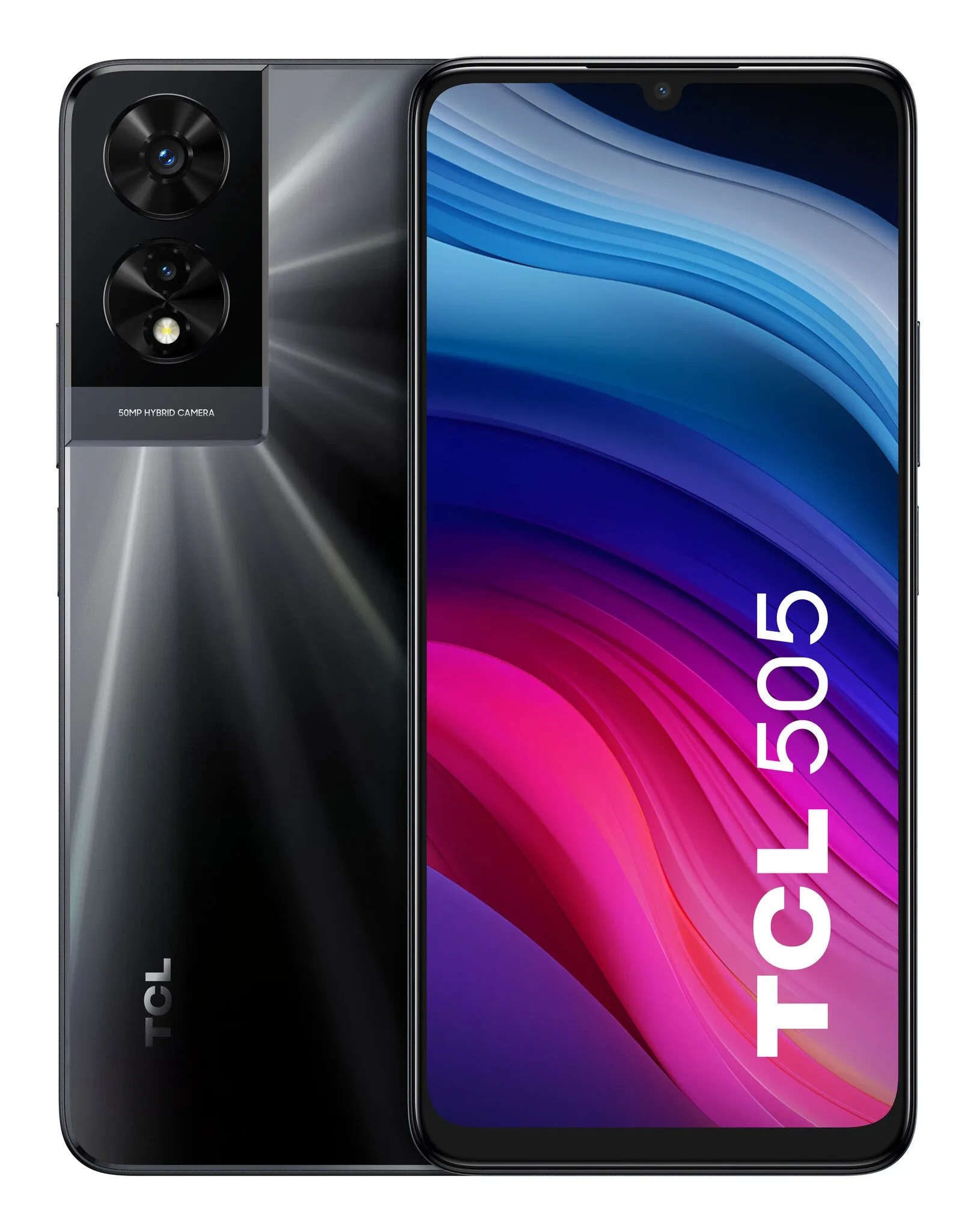

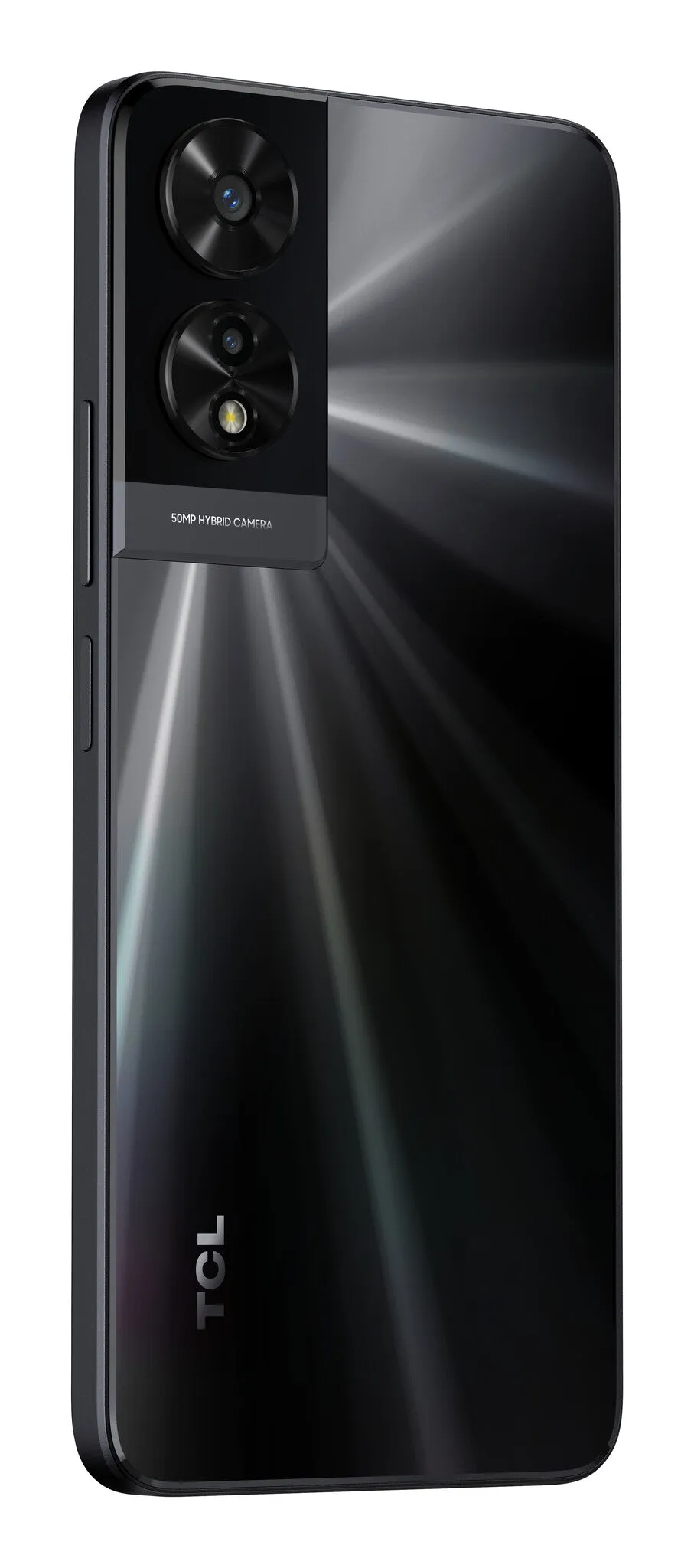

6.75", HD , 720 x 1600, MTK G36, 4 4 GB RAM, 128 GB ROM, 50 2 MP / 5 MP, 5010 mAh, 2x Nano SIM micro SD, 76.67 x 8.32 x 168.29 mm, 190 g, Space Grey
TCL 505. Display diagonal: 17.1 cm (6.75"), Display resolution: 720 x 1600 pixels. Processor frequency: 2.2 GHz, Processor family: MediaTek, Processor model: Helio G36. RAM capacity: 4 GB, Internal storage capacity: 128 GB. Rear camera resolution (numeric): 50 MP, Rear camera type: Dual camera. SIM card capability: Dual SIM. Operating system installed: Android 14. Battery capacity: 5010 mAh. Product colour: Grey. Weight: 190 g

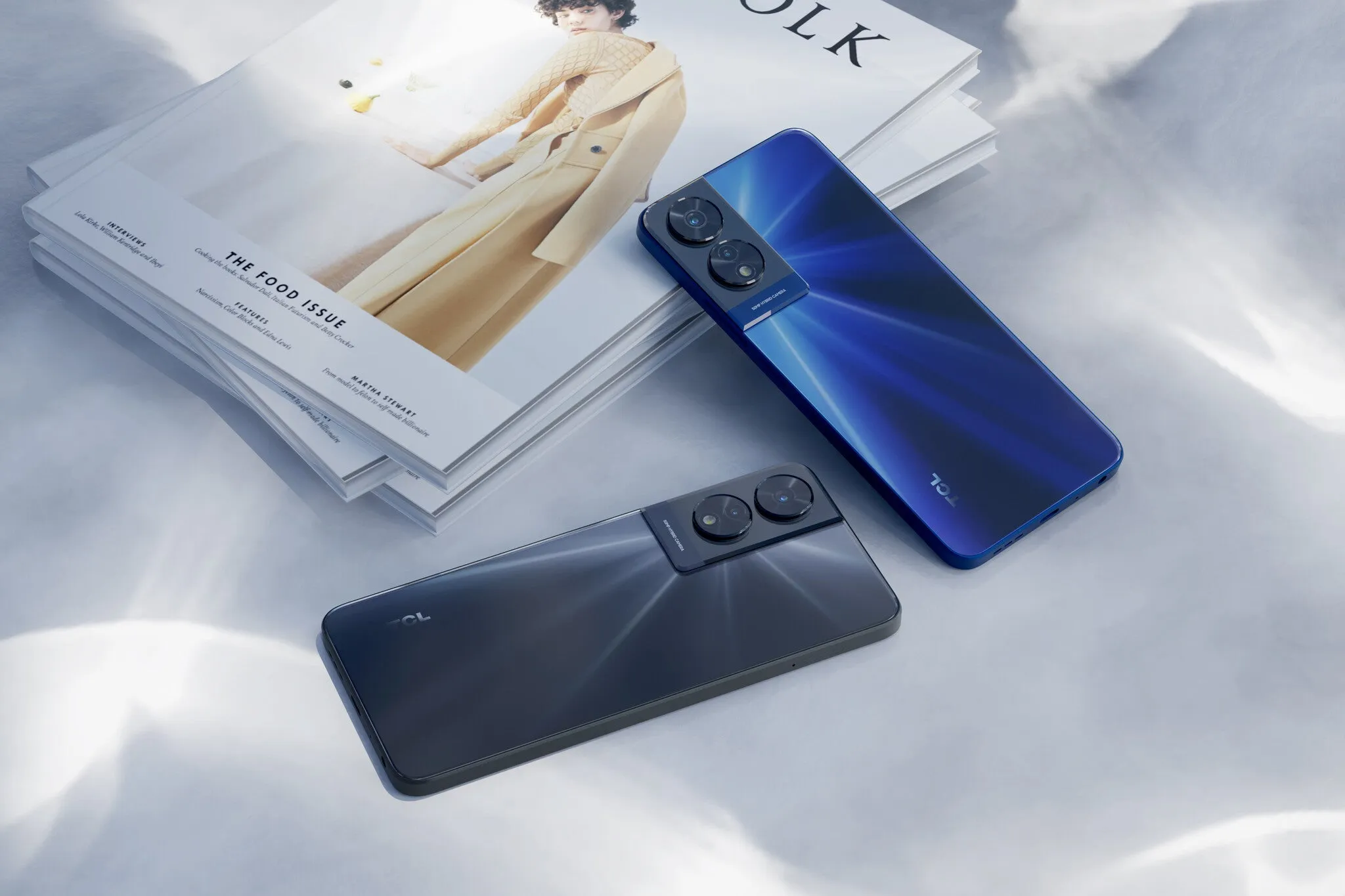

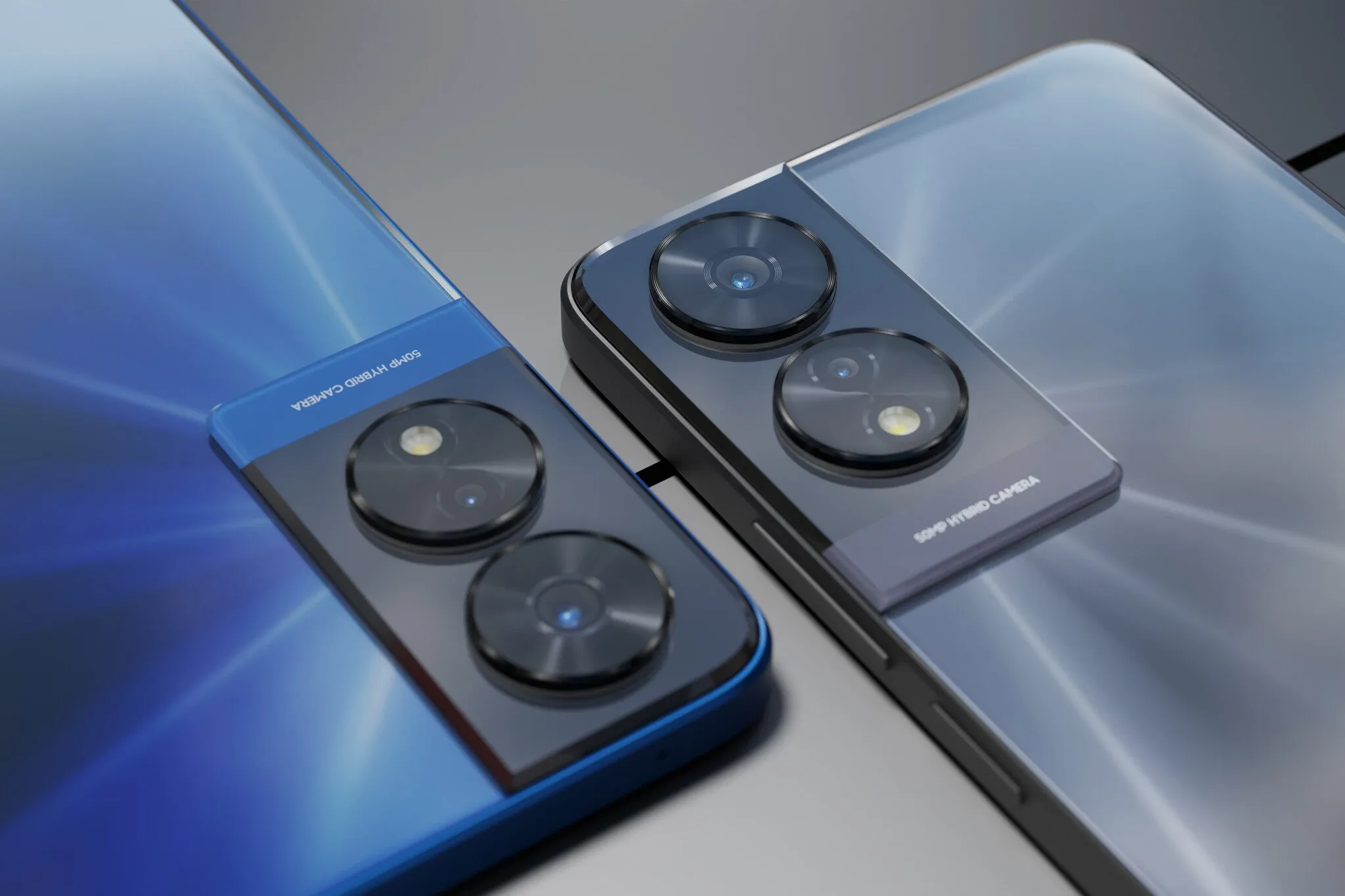

Immerse yourself in the TCL 505's sleek design and unparalleled audiovisual experience. Featuring a 6.75" HD display with a 90Hz refresh rate, and enhanced by NXTVISION & NXTURBO technologies, it delivers a seamlessly smooth visual experience with sharp clarity and deeper details for streaming, gaming, and browsing. Capture highly detailed photos, exquisite macros, and artistic portraits with the 50MP dual 2-in-1 Hybrid camera., and never worry about storage limitations with 128GB memory for all your favourite photos, videos, and media. Effortlessly multitask with up to 8GB of RAM, 4GB powered by TCLs RAM Expansion, enabling you to keep more applications open in the background without compromising performance, and with TCL's intelligent power-saving modes and a robust 5010mAh battery, you can stream, game, and browse worry-free all day long.

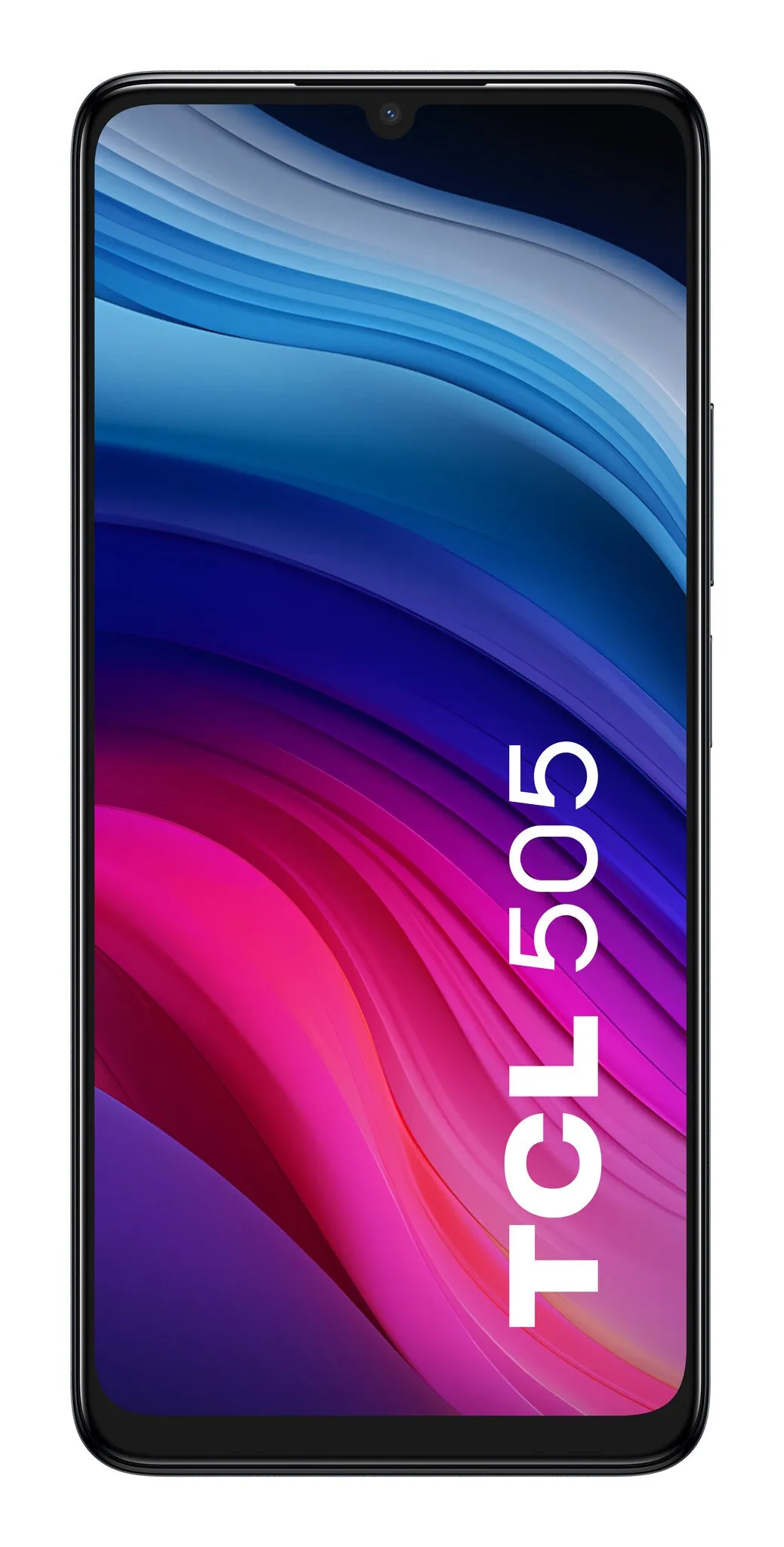

| Display |
|---|
| Oleophobic coating | Yes |
| Touchscreen type | Capacitive |
| Pixel density | 260 ppi |
| Display brightness | 400 cd/m |
| Display glass type | 2.5D tempered glass |
| Display technology marketing name | NXTVISION |
| Screen shape | Flat |
| Display resolution | 720 x 1600 pixels |
| Display diagonal | 17.1 cm (6.75") |
| Processor |
|---|
| Coprocessor cores | 4 |
| Coprocessor architecture | ARM Cortex-A53 |
| Coprocessor frequency | 1.6 GHz |
| Processor cores | 4 |
| Processor architecture | ARM Cortex-A53 |
| Processor model | Helio G36 |
| Processor family | MediaTek |
| Processor frequency | 2.2 GHz |
| Storage |
|---|
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| User memory | 108 GB |
| RAM expansion (max) | 4 GB |
| Internal storage capacity | 128 GB |
| RAM capacity | 4 GB |

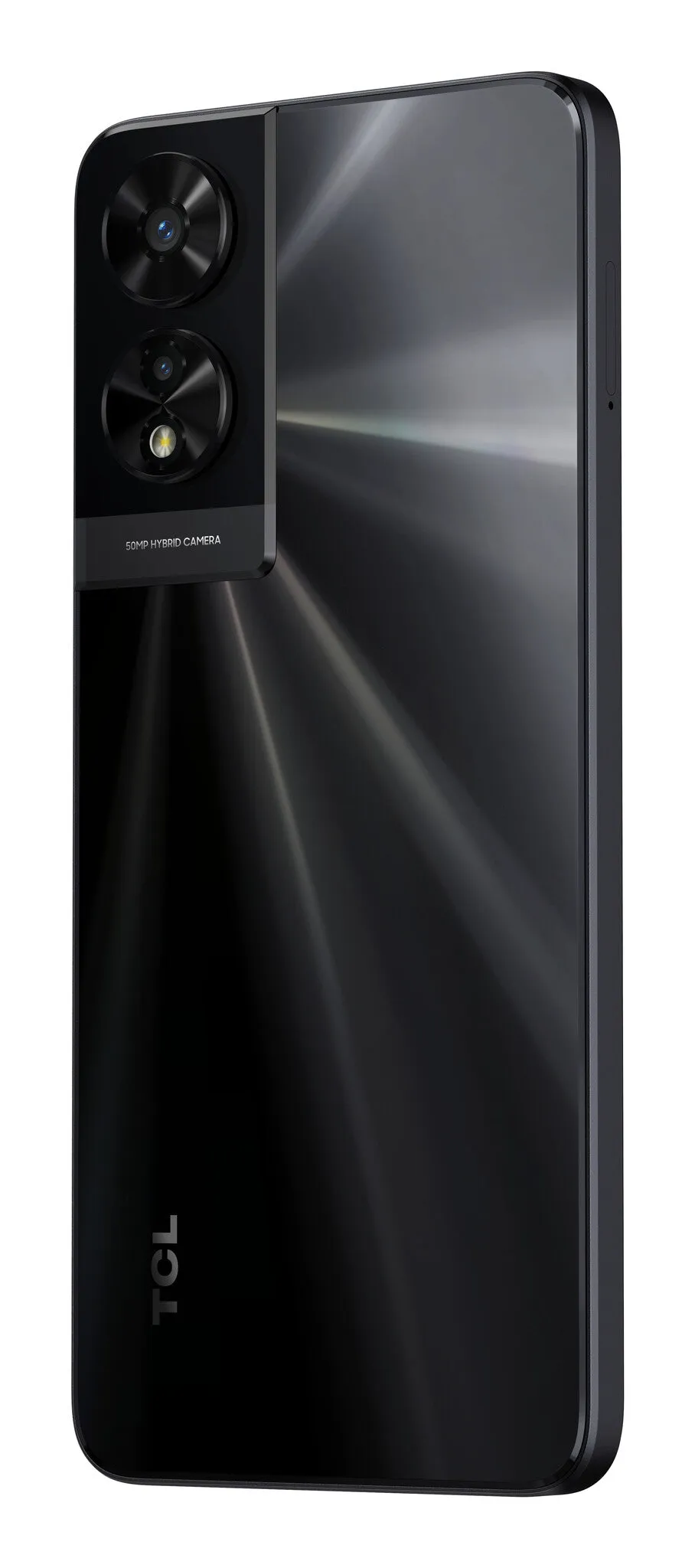

| Camera |
|---|
| AI scene recognition | Yes |
| Panorama | Yes |
| Camera High Dynamic Range (HDR) mode | Yes |
| Face detection | Yes |
| Video recording modes | 1080p |
| Resolution at capture speed | 1920x1080@30fps |
| Rear camera flash | Yes |
| Front camera field of view (FOV) angle | 76.8 |
| Front camera pixel size | 1.12 m |
| Front camera aperture number | 2.2 |
| Front camera resolution (numeric) | 5 MP |
| Front camera type | Single camera |
| Front camera lens elements | 3-element lens |
| Second rear camera lens elements | 3-element lens |
| Rear camera lens elements | 5-element lens |
| Second rear camera field of view (FOV) angle | 88.8 |
| Rear camera field of view (FOV) angle | 79.4 |
| Second rear camera pixel size | 1.75 m |
| Rear camera pixel size | 0.7 m |
| Second rear camera aperture number | 2.4 |
| Rear camera aperture number | 1.8 |
| Second rear camera resolution (numeric) | 2 MP |
| Rear camera resolution (numeric) | 50 MP |
| Rear camera sensor size | 1/2.55" |
| Second rear camera sensor size | 1/5" |
| Rear camera type | Dual camera |
| Network |
|---|
| Near Field Communication (NFC) | Yes |
| Wi-Fi Direct | Yes |
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Voice over LTE (VoLTE) supported | Yes |
| 5G standard | Not supported |
| 4G standard | LTE |
| 3G standards | HSPA |
| SIM card type | NanoSIM |
| Mobile network generation | 4G |
| SIM card capability | Dual SIM |
| Subscription |
|---|
| Subscription type | No subscription |
| Ports & interfaces |
|---|
| Headphone connectivity | 3.5 mm |
| USB version | 2.0 |
| USB connector type | USB Type-C |
| USB port | Yes |
| Design |
|---|
| Colour name | Space Grey |
| Product colour | Grey |
| Form factor | Bar |
| Performance |
|---|
| Country of origin | China |
| Graphics card | IMG GE8320 |
| Navigation |
|---|
| Galileo | Yes |
| GLONASS | Yes |
| BeiDou | Yes |
| GPS (satellite) | Yes |
| Assisted GPS (A-GPS) | Yes |
| Position location | Yes |
| Multimedia |
|---|
| Video formats supported | H.263, H.264, H.265, MPEG2, MPEG4, VP8, VP9 |
| Audio formats supported | AAC, AMR, AWB, FLAC, HE-AAC, HE-AAC v2, MIDI, MP3, OGG, OPUS, Vorbis, WAV |
| Software |
|---|
| Operating system installed | Android 14 |
| Platform | Android |
| Battery |
|---|
| Battery recharge time | 3 h |
| Battery capacity | 5010 mAh |
| Sensors |
|---|
| Proximity sensor | Yes |
| Accelerometer | Yes |
| Power |
|---|
| USB Type-C charging port | Yes |
| Weight & dimensions |
|---|
| Package weight | 382 g |
| Package height | 180 mm |
| Package depth | 60 mm |
| Package width | 87 mm |
| Height | 168.3 mm |
| Depth | 8.32 mm |
| Width | 76.7 mm |
| Weight | 190 g |
| Packaging content |
|---|
| Cables included | USB Type-C |
| SIM card ejector pin | Yes |
| Quick start guide | Yes |
