4 x USB 3.0, Gigabit Ethernet, VESA, 170 x 220 x 102mm, 1.44kg, Black, ABS
Targus DOCK171EUZ. USB connector type: USB Type-A. Product colour: Black, Cable lock slot type: Kensington, Housing material: Acrylonitrile butadiene styrene (ABS). Power source type: DC. Width: 125 mm, Depth: 210 mm, Height: 55 mm. Package width: 110 mm, Package depth: 235 mm, Package height: 160 mm

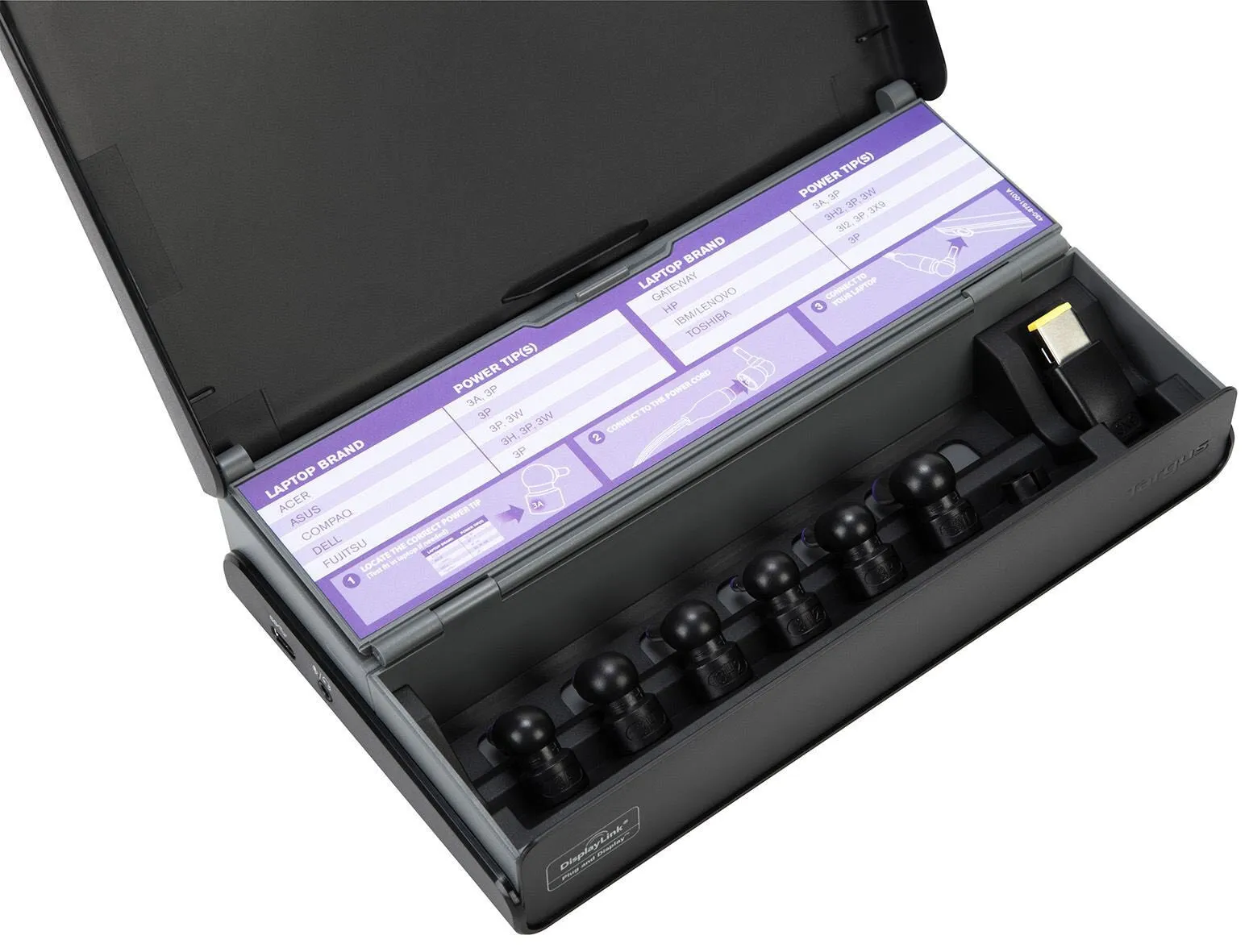

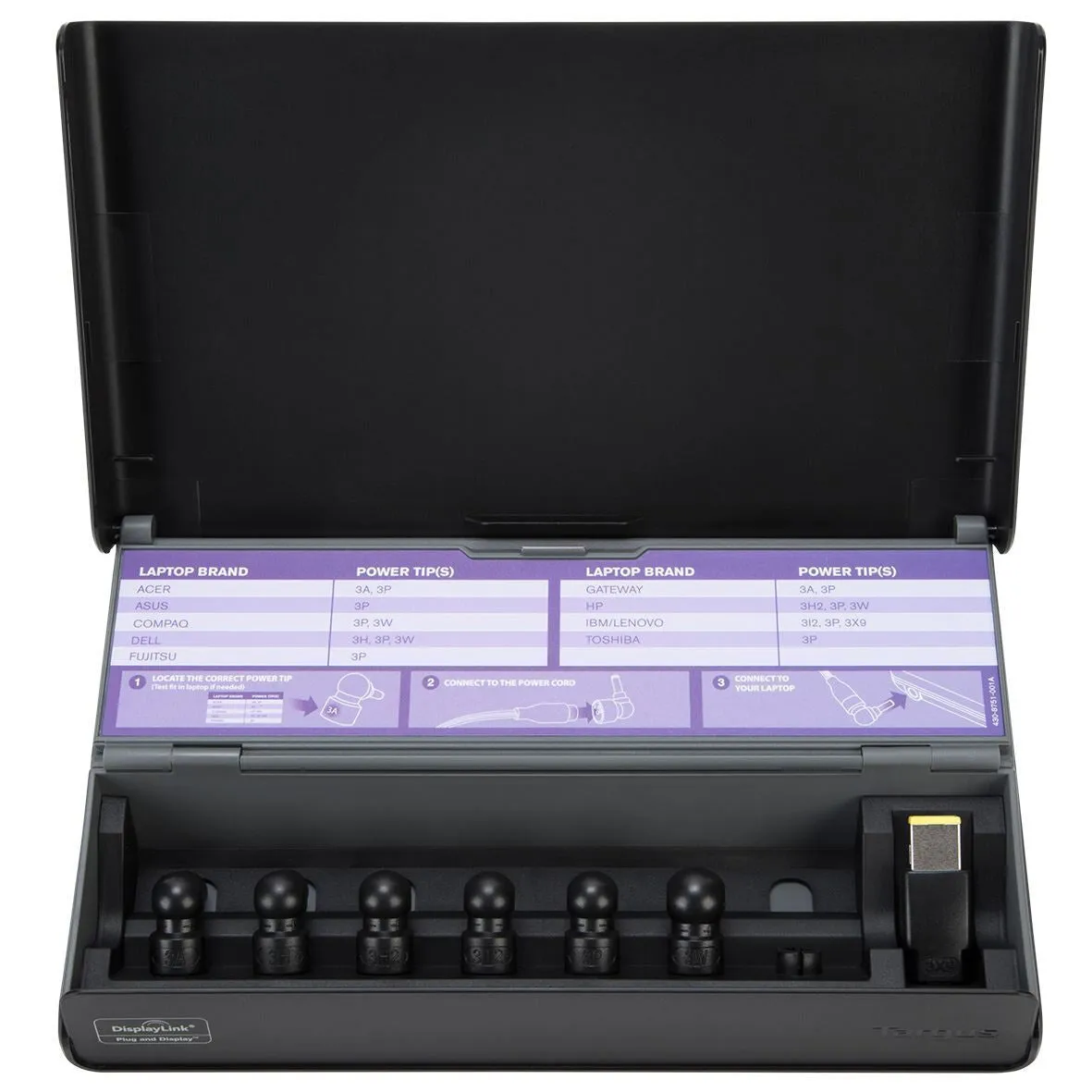

Create a dual beyond HD video workstation or connect a single 2K monitor with the Universal USB 3.0 DV Docking Station. It delivers integrated power and charging, and its designed to support multiple host platforms and brands for a broad range of compatibility with peripherals and devices. With five USB 3.0 ports (including one thats high-powered for charging devices and one thats Type-C), plus an Audio In/Out port for speakers, mics, or headphones, its easy to customise your workstation. The integrated Gigabit Ethernet connection is more secure and faster than most Wi-Fi connections. Charging tips are included so that the dock can power most major laptop brands, and theyre all neatly stored within a removable compartment in the dock.
- Dual monitor support with up to 2048 x 1152 at 60Hz 24 bpp colour video (single 2K 2560 x 1440 at 50Hz HDMI) leveraging the DisplayLink DL-3900 technology
- HDMI 1.4 port can be converted to second DVI-D port, DVI-I port can be converted to VGA (adapters not included)
- 4 USB 3.0 Type-A ports (right side BC 1.2 fast charging up to 1.5A)
Ports & interfaces |
---|
USB connector type | USB Type-A |
DC-in jack | Yes |
Headphone outputs | 1 |
Microphone in | Yes |
DVI-D ports quantity | 1 |
HDMI version | 1.4 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network |
---|
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN | Yes |
Performance |
---|
Housing material | Acrylonitrile butadiene styrene (ABS) |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Product colour | Black |
Software |
---|
Windows operating systems supported | Yes |
Weight & dimensions |
---|
Weight | 1.62 kg |
Height | 55 mm |
Depth | 210 mm |
Width | 125 mm |
Packaging data |
---|
Package weight | 1.8 kg |
Package height | 160 mm |
Package depth | 235 mm |
Package width | 110 mm |
Logistics data |
---|
Shipping (inner) case net weight | 5.61 kg |
Shipping (inner) case height | 17.8 cm |
Shipping (inner) case length | 35 cm |
Shipping (inner) case width | 24.8 cm |
Master (outer) case weight | 23.9 kg |
Quantity per shipping (inner) case | 3 pc(s) |
Quantity per master (outer) case | 12 pc(s) |
Master (outer) case width | 370 mm |
Master (outer) case length | 515 mm |
Master (outer) case height | 380 mm |
Other features |
---|
Quantity per pallet | 192 pc(s) |
