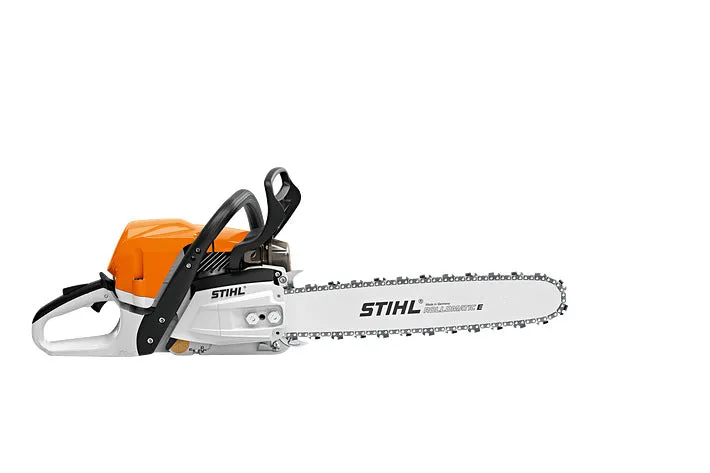

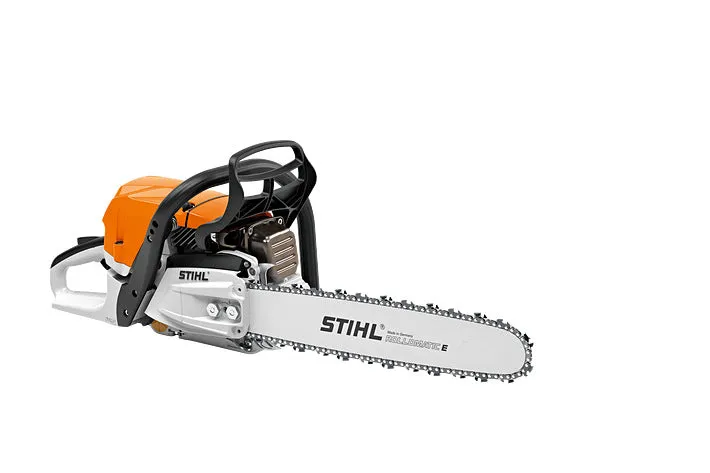

Thanks to these intelligent design features, the MS 400 C-M has an impressive power-to-weight ratio of 1.45 kilograms per kilowatt, making it ideal to use when working in the forest, especially over prolonged periods. The powerhead on its own weighs 5.8 kg. In addition to the new 66.8 cc engine, the MS 400 C-M features STIHLs latest M-Tronic 3.0 technology which has STIHLs simple re-calibration procedure and an improved HD2 filter, which all help deliver optimum performance from the saw at all times.

The chainsaw also features Elastostart technology that enables effortless starting of the tool. Designed for forestry and arb professionals, the MS 400 C-M can be used for a range of applications, including felling, de-limbing and cutting timber down to size.

Technical data:

• Displacement cm - 66.8
• Power output kW/bhp - 4/5.4
• Weight kg 1) - 5.8
• System weight kg 2) - 6.88 / 7.07 / 7.11
• Power-to-weight ratio kg/kW - 1.4
• Sound pressure level dB(A) 3) - 107
• Sound power level dB(A) 3) - 118
• Vibration values left/right m/s 4) - 3.5/3.5
• Oil pump - Adjustable oil filter
• Tank volume l - 0.60
• Chain pitch - 3/8"
• Chain tensioning - Lateral chain tension
• Sprocket - number of teeth - 7 Z
• Filter - Long-term filter system (pre-separation) / cartridge filter HD2
• Bumper spike - Steel claw
• Cylinder - Chrome
• Oil tank volume cm3 - 325
• Sprocket - Ring sprocket
• Anti-vibration system - Standard AV-System
• Filler cap - Tool-free filler cap
• Starting system - ElastoStart / Recoilless Ignition / single-lever control / decompression valve
• EPA Certified fuel consumption l/h - 2.265
• CO2 g/kWh - 656



1) Without fuel, without bar and chain
2) Unfueled, with guide bar and saw chain
3) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4) K-factor according to DIR 2006/42/EC = 2m / s
