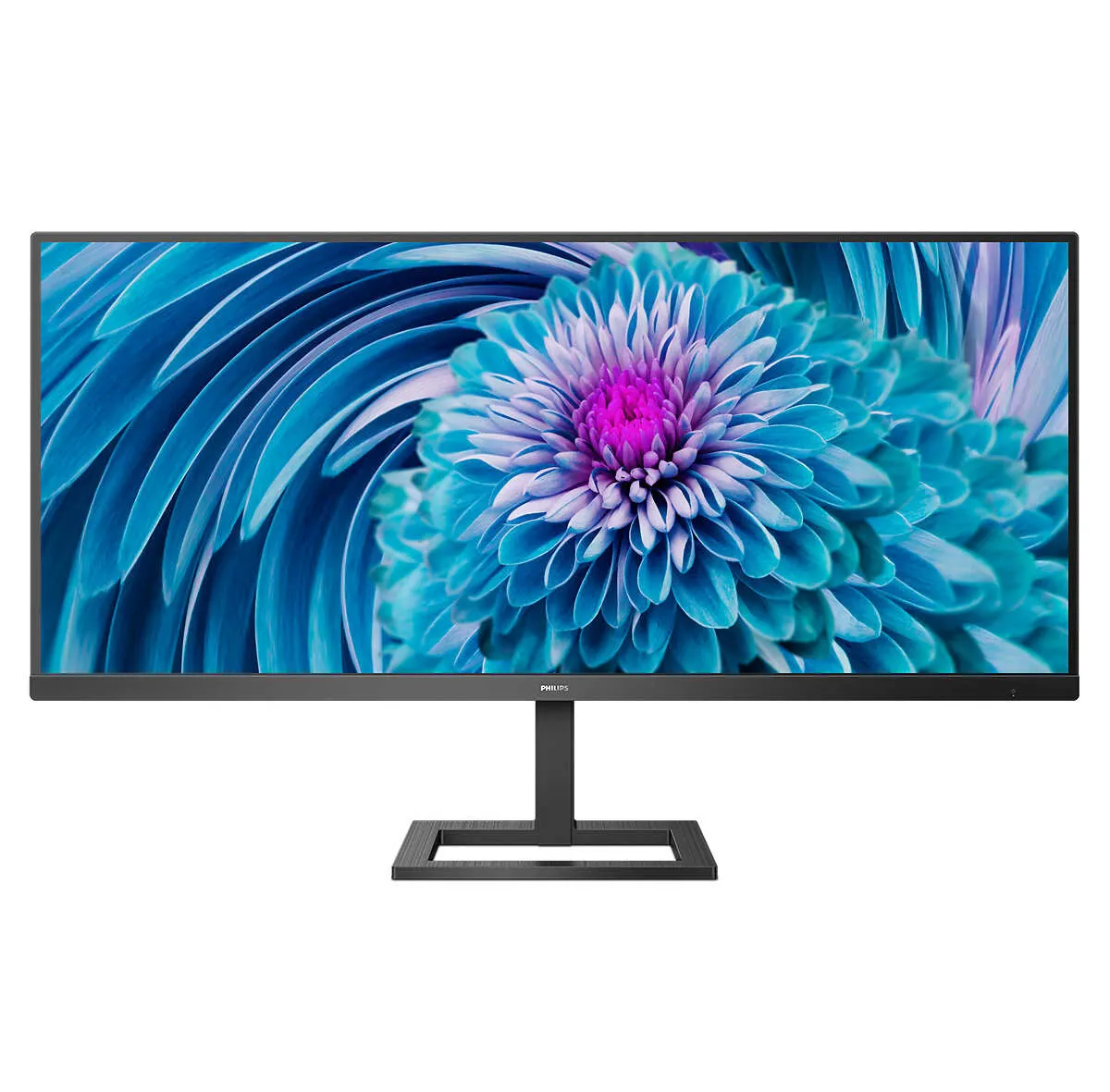

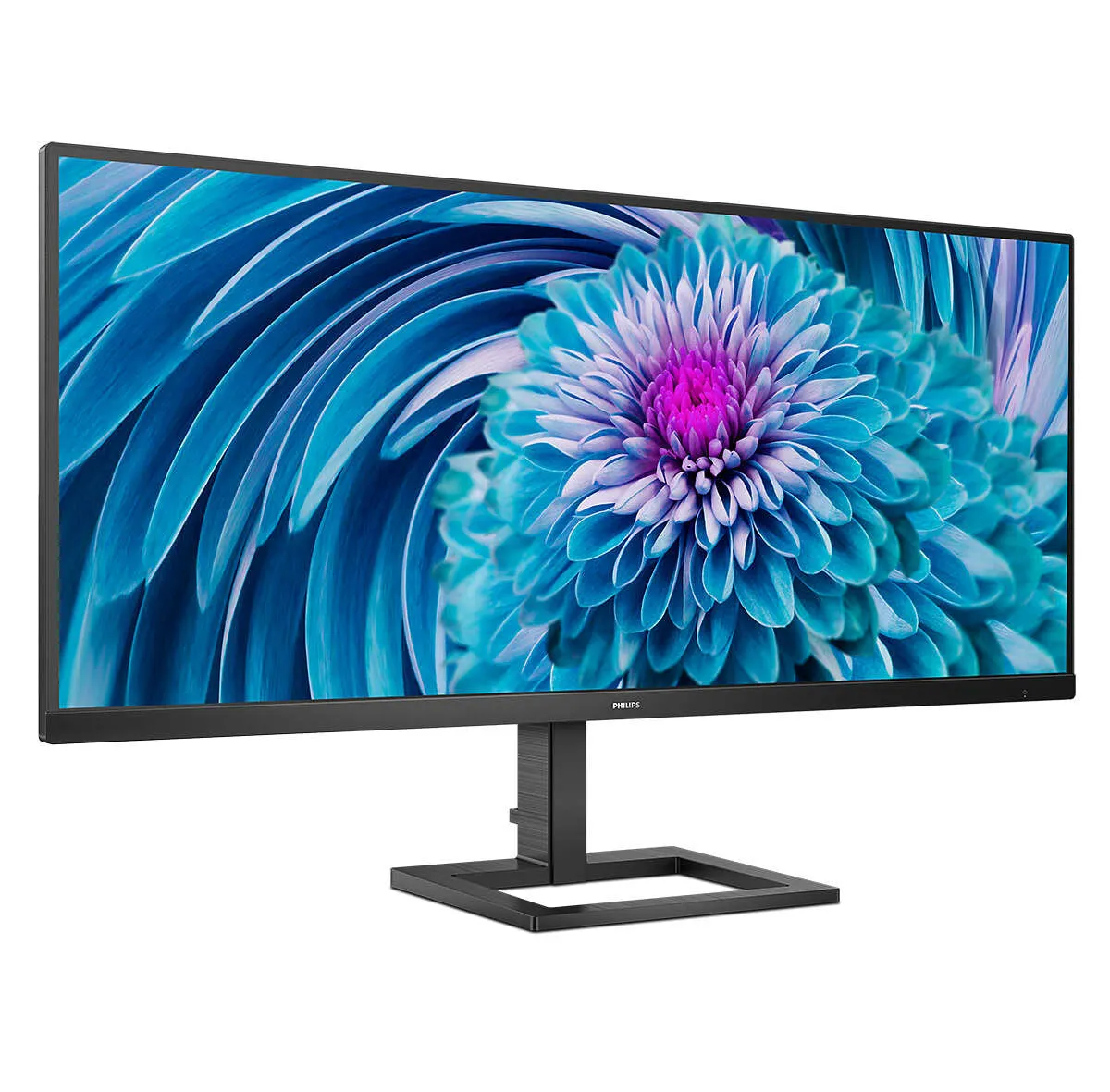

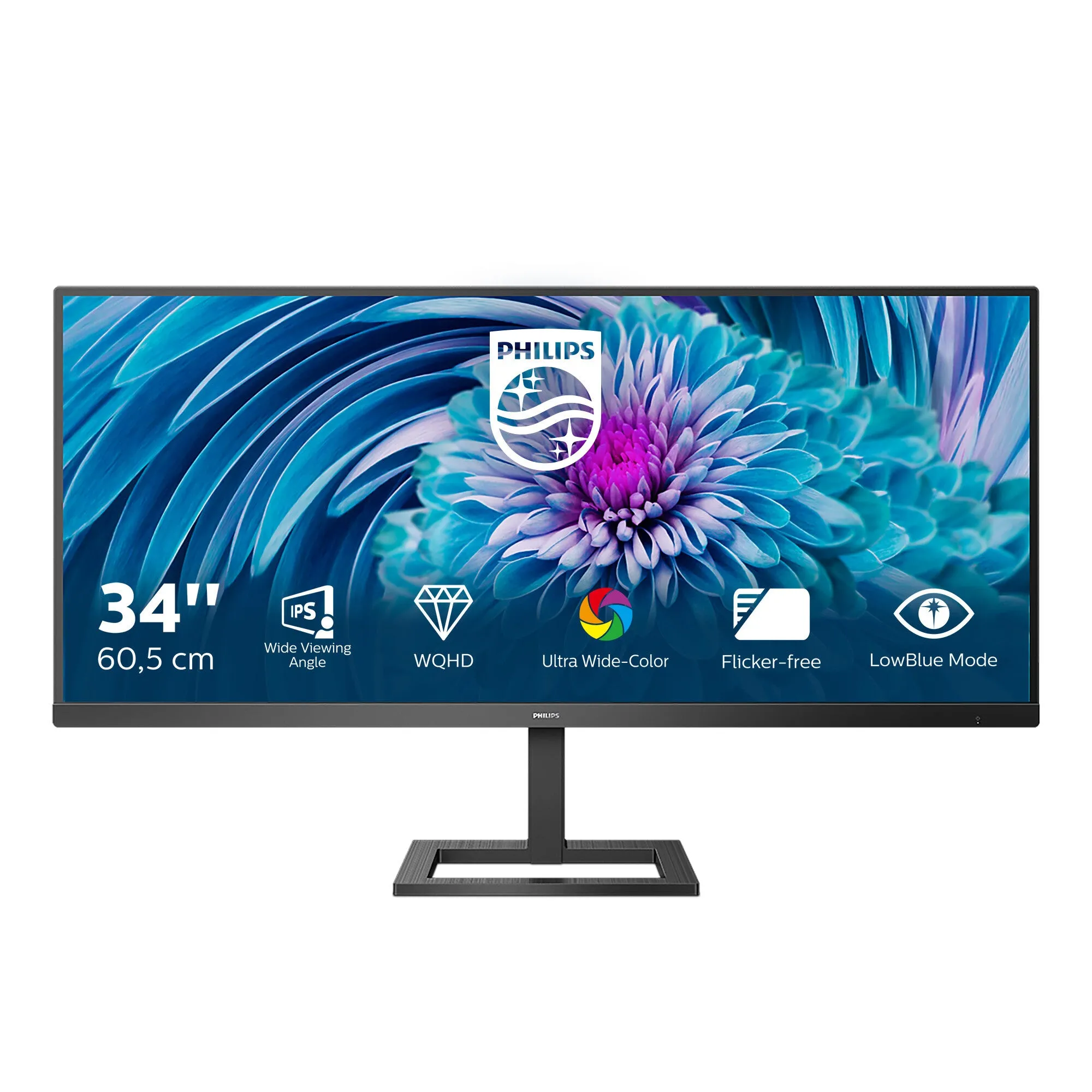

Philips E Line 345E2AE/00. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, Response time: 4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178, Viewing angle, vertical: 178. Built-in speaker(s). VESA mounting, Height adjustment. Product colour: Black
The Philips E line UltraWide display gives an expansive panoramic visual. A CrystalClear WQHD display, Ultra Wide-Color and ergonomic stand design make for optimal viewing conditions. MultiView meets the need for usability and productivity.
| Display | |
|---|---|
| NTSC coverage (typical) | 106.8% |
| sRGB coverage (typical) | 120.3% |
| Colour gamut | 106.8% |
| Surface hardness | 3H |
| Haze rate | 25% |
| Colour gamut standard | sRGB |
| DDC/CI | Yes |
| Display sRGB | Yes |
| Display diagonal (metric) | 86.36 cm |
| Digital vertical frequency | 48 - 75 Hz |
| Digital horizontal frequency | 30 - 120 kHz |
| Viewable size, vertical | 33.5 cm |
| Viewable size, horizontal | 80 cm |
| Vertical scan range | 48 - 75 Hz |
| Horizontal scan range | 30 - 120 kHz |
| Pixel pitch | 0.2325 x 0.2325 mm |
| Pixel density | 119.68 ppi |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178 |
| Viewing angle, horizontal | 178 |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 21:9 |
| Supported graphics resolutions | 3440 x 1440 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Backlight type | W-LED |
| Response time | 4 ms |
| Display brightness (typical) | 300 cd/m |
| Display brightness (peak) | 300 cd/m |
| Panel type | IPS |
| Native aspect ratio | 21:9 |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Component video sync | Separate sync |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | CB, TUV/ISO9241-307, TUV-BAUART, CU-EAC, EAEU RoHS, MEPS, PSB, BSMI, CE Mark |
| Product colour | Black |

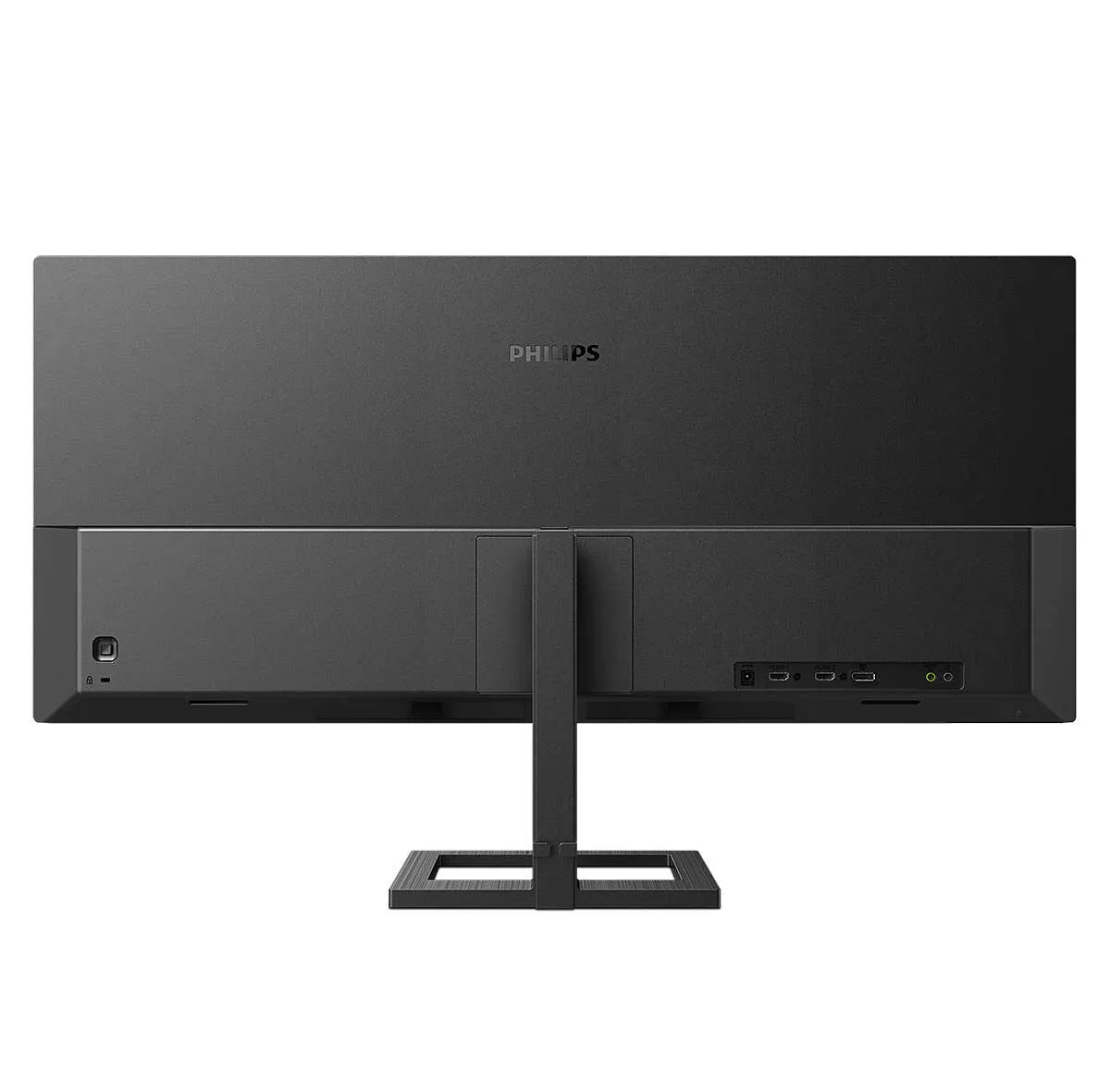

| Ports & interfaces | |
|---|---|
| PC Audio in | Yes |
| Headphone out | Yes |
| Audio input | Yes |

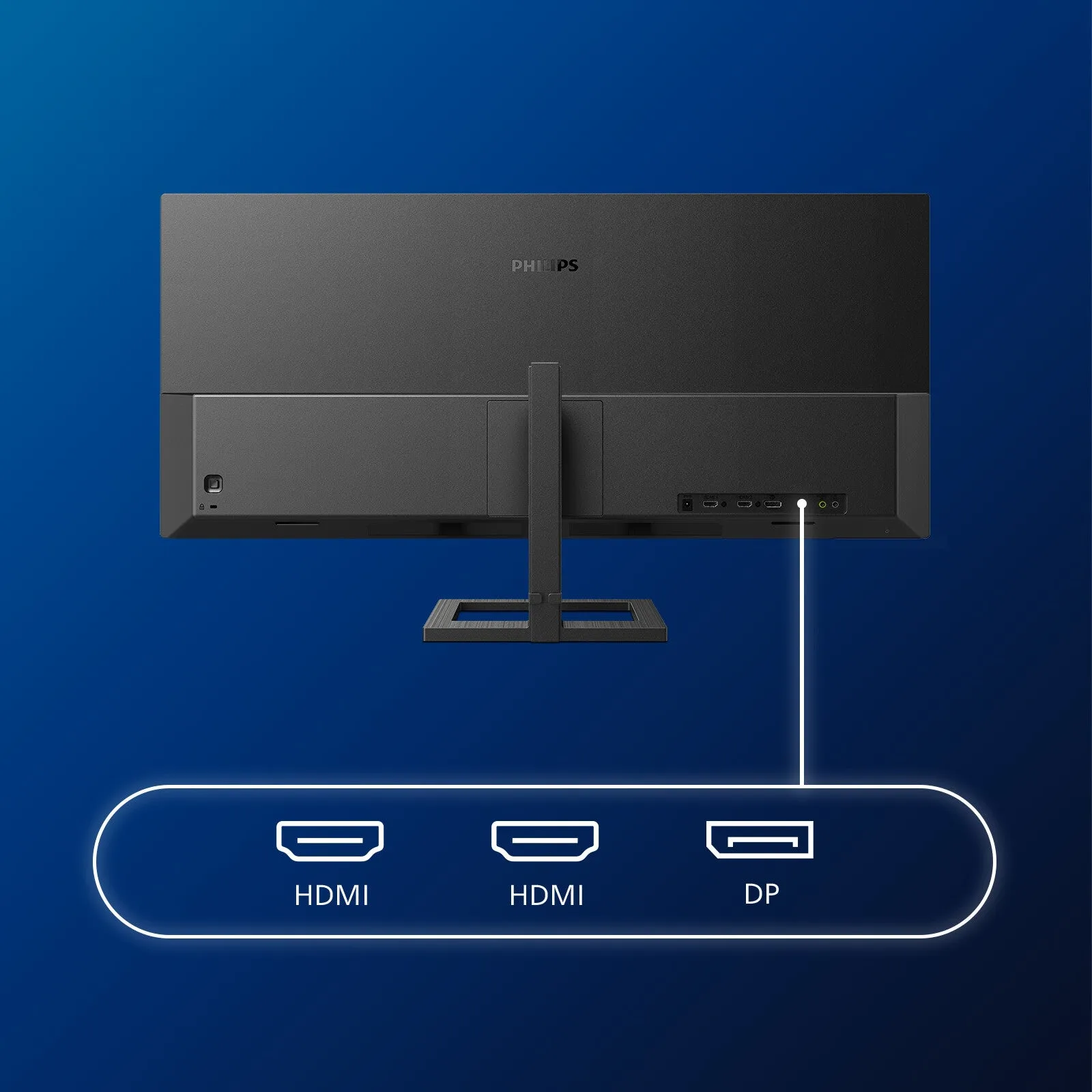

| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| DVI port | No |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| LED indicators | Operation, Stand-by |
| Plug and Play | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 21 |
| On Screen Display (OSD) | Yes |
| Picture-in-Picture | Yes |
| Tilt angle range | -5 - 20 |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Adjustable height (max) | 10 cm |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | External |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 26.09 W |
| Energy consumption (SDR) per 1000 hours | 39 kWh |
| Energy efficiency class (SDR) | F |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 C |
| Operating temperature (T-T) | 0 - 40 C |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 413343 |
| Doesn't contain | Mercury, PVC/BFR |
| Sustainability certificates | ENERGY STAR, TCO |
| General | |
|---|---|
| Product family | E Line |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 5.65 kg |
| Height (without stand) | 365 mm |
| Depth (without stand) | 49 mm |
| Width (without stand) | 817 mm |
| Weight (with stand) | 7.61 kg |
| Height (with stand) | 491 mm |
| Depth (with stand) | 235 mm |
| Width (with stand) | 817 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 10.2 kg |
| Package height | 525 mm |
| Package depth | 186 mm |
| Package width | 930 mm |
| Manual | Yes |
| Cables included | DisplayPort, HDMI, AC |
| Stand included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Picture enhancement | SmartImage game |
| Regulatory Approvals | CB; TUV/ISO9241-307; TUV-BAUART; CU-EAC; EAEU RoHS; MEPS; PSB; BSMI; CE Mark |
| MultiView | PIP/PBP mode, 2 x devices |
| Mean time between failures (MTBF) | 50000 h |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Touchscreen | No |
| Recyclable packaging material | 100% |
| Exterior finish type | Textured |
| Picture-by-Picture (PbP) | Yes |
