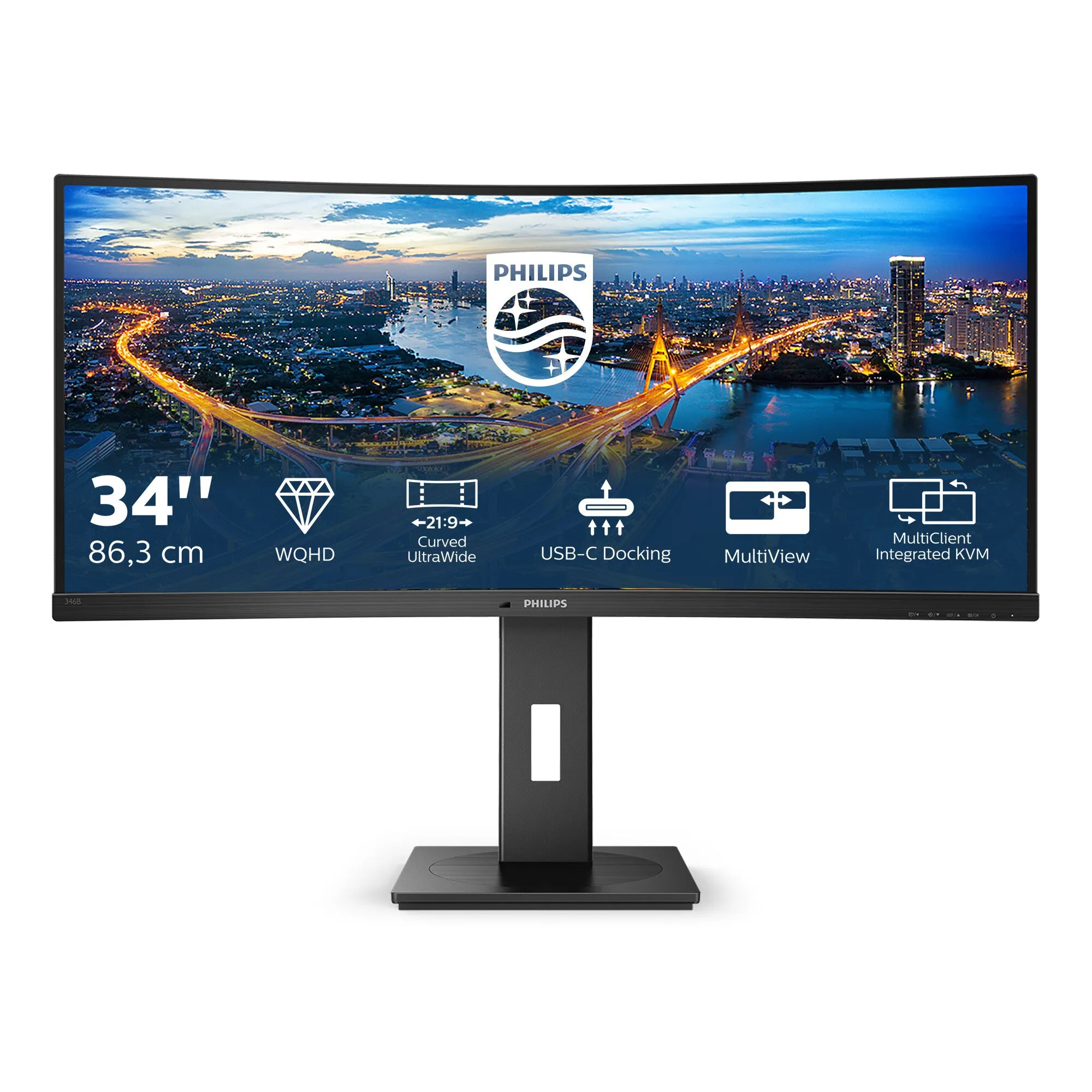

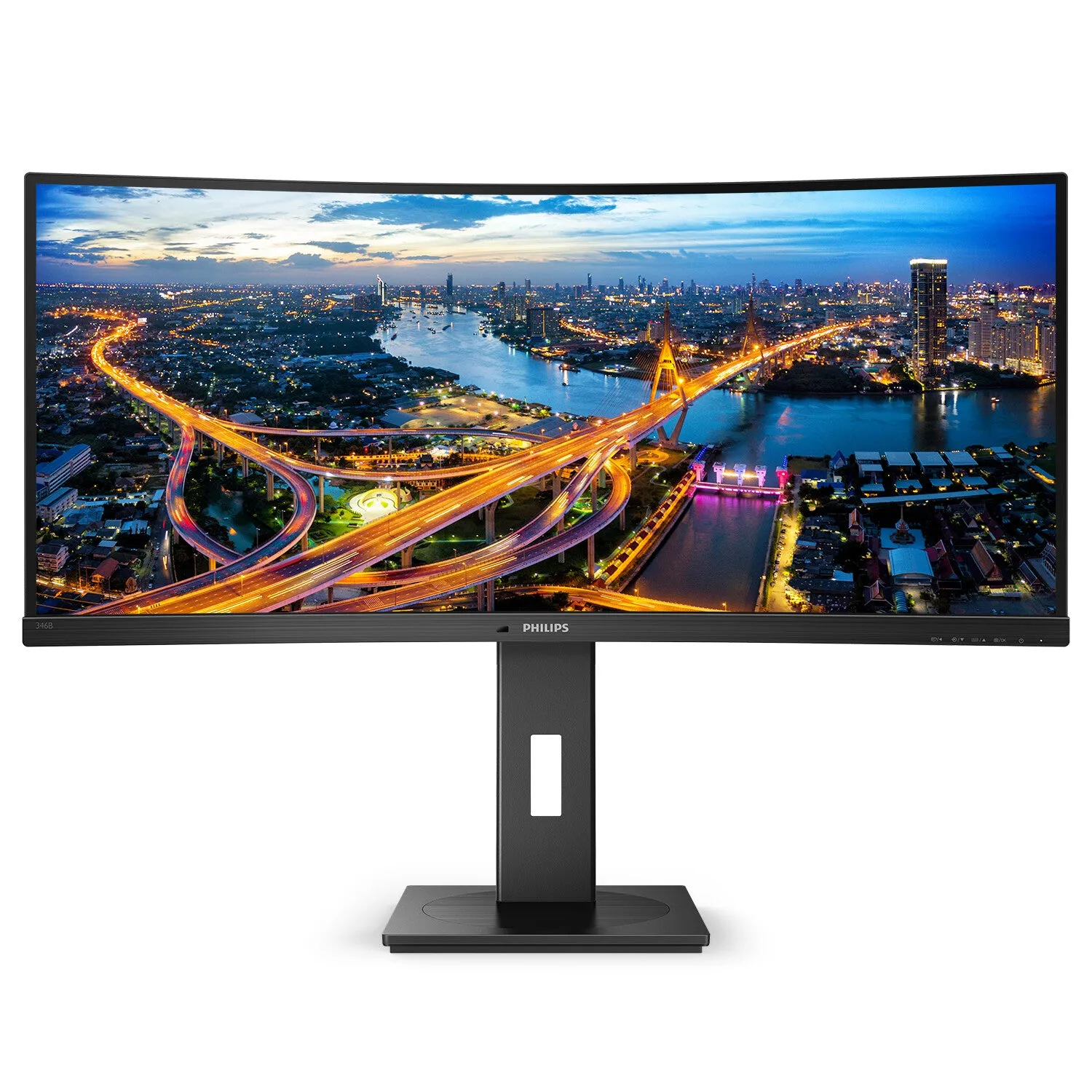

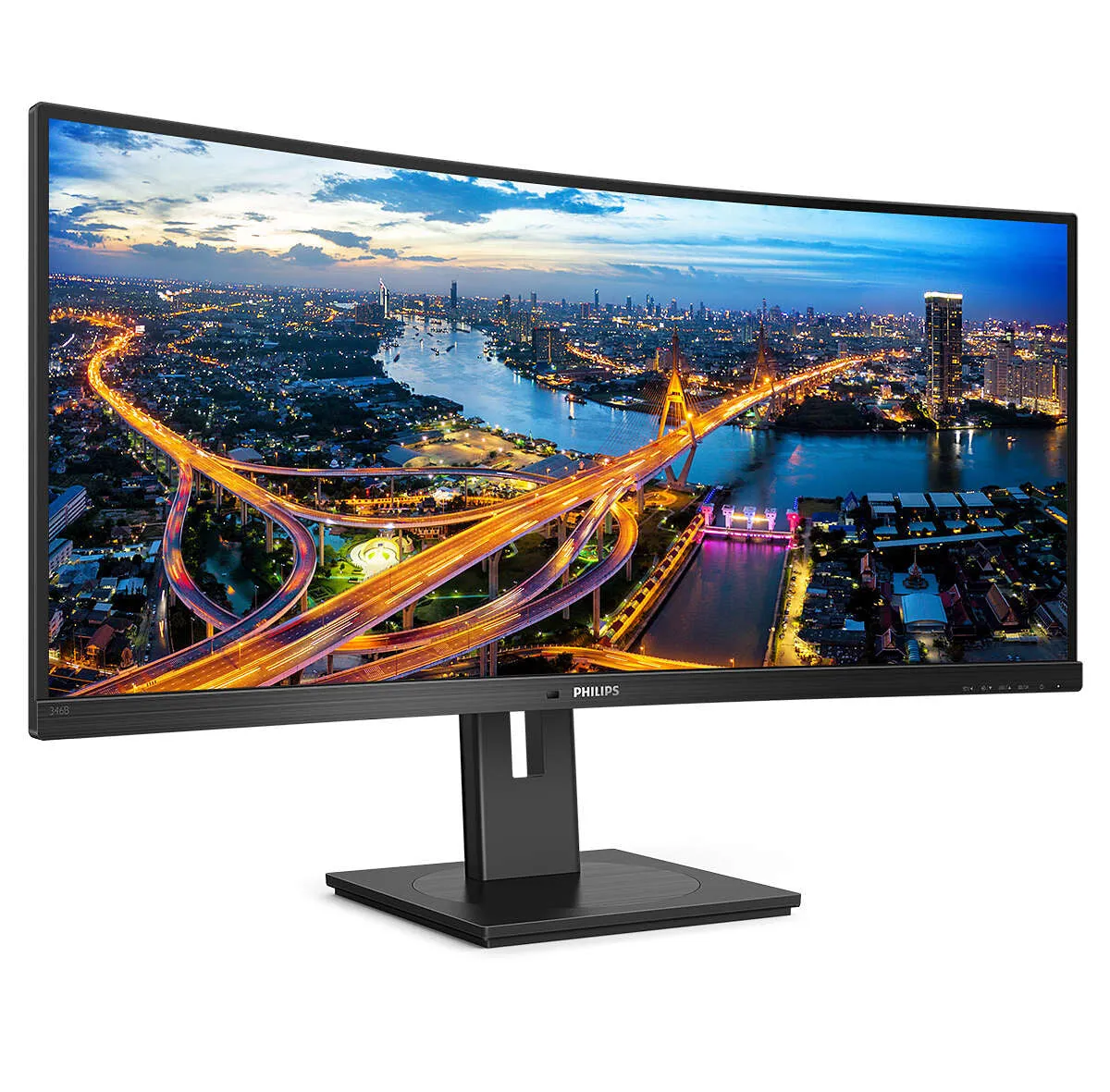

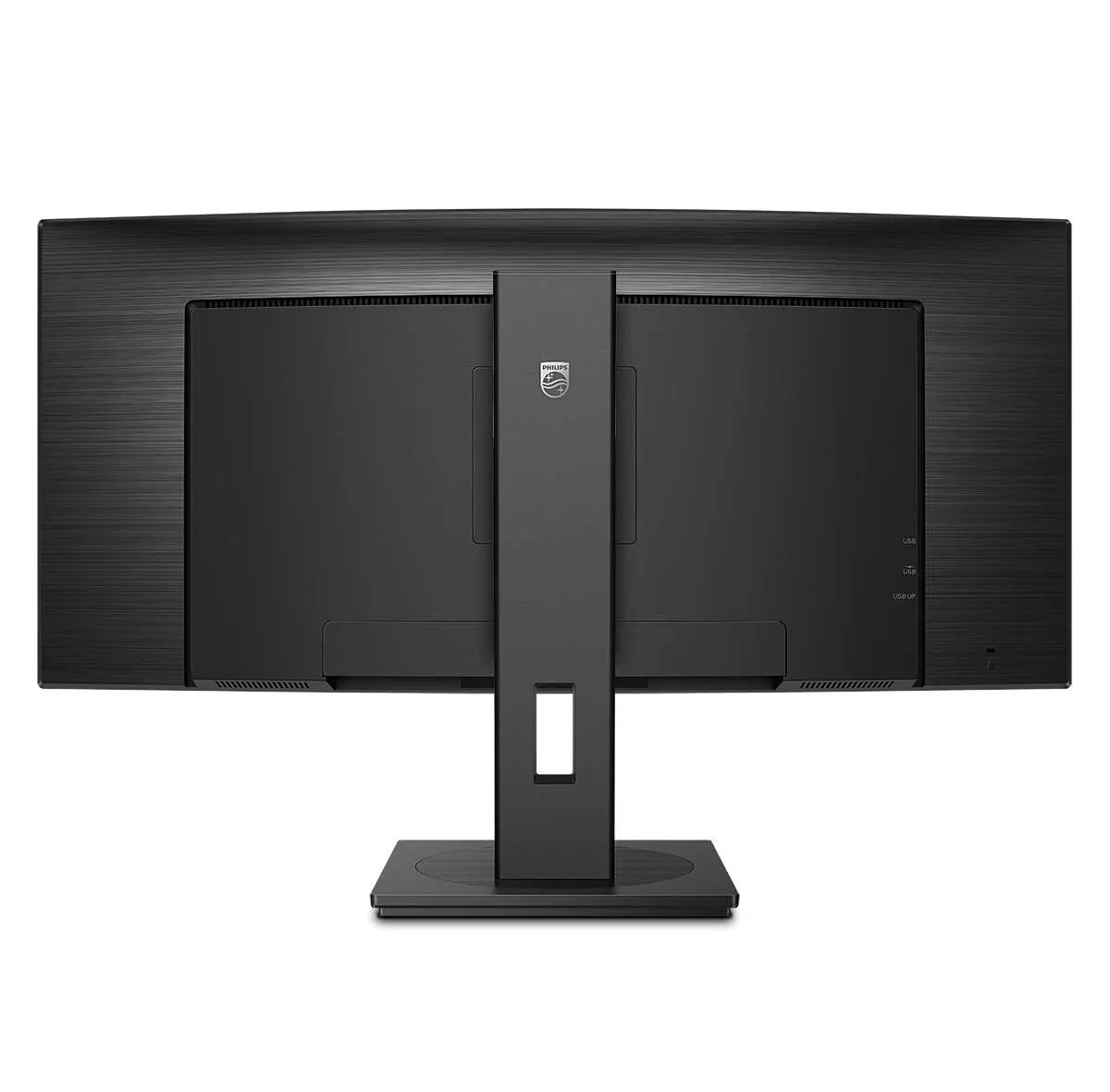

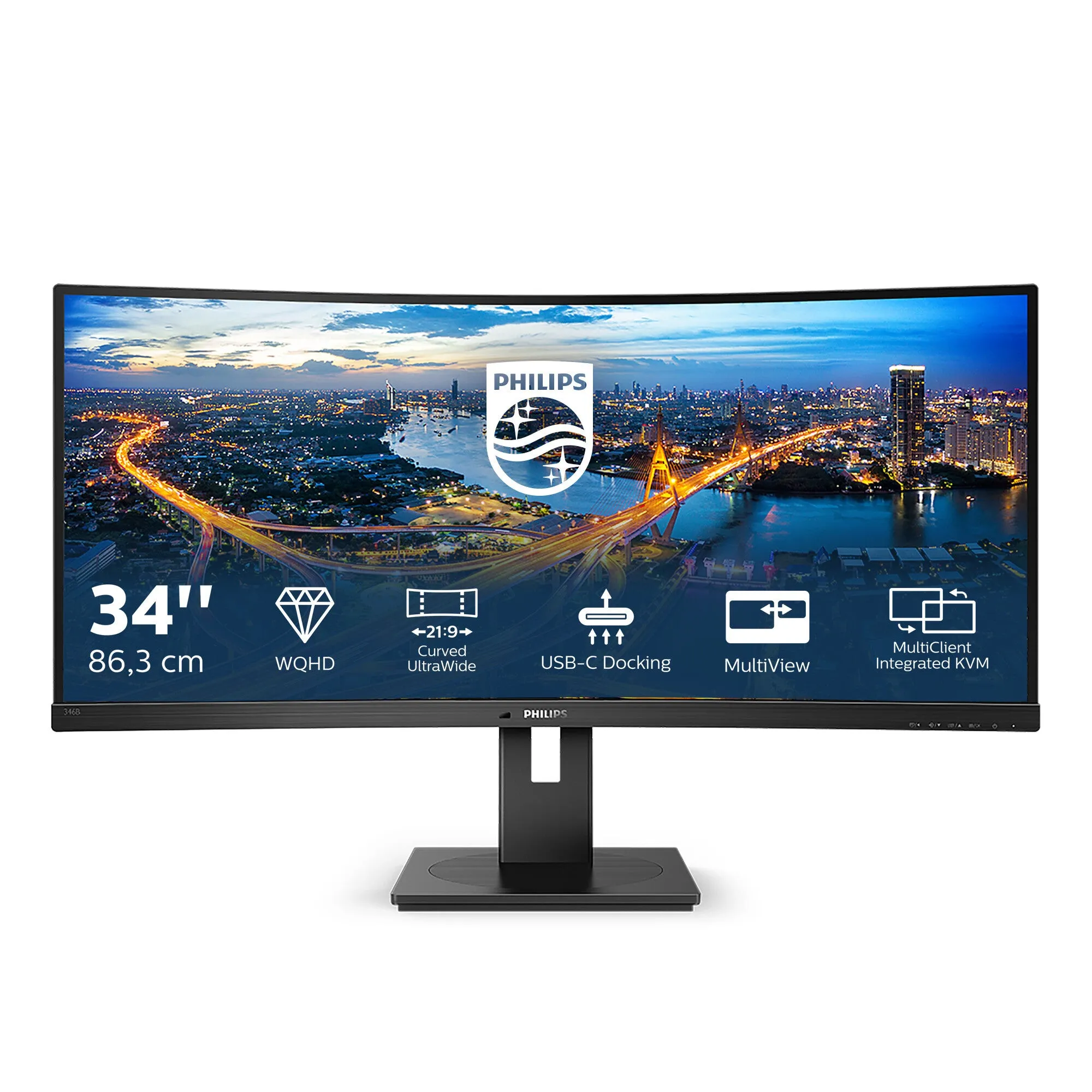

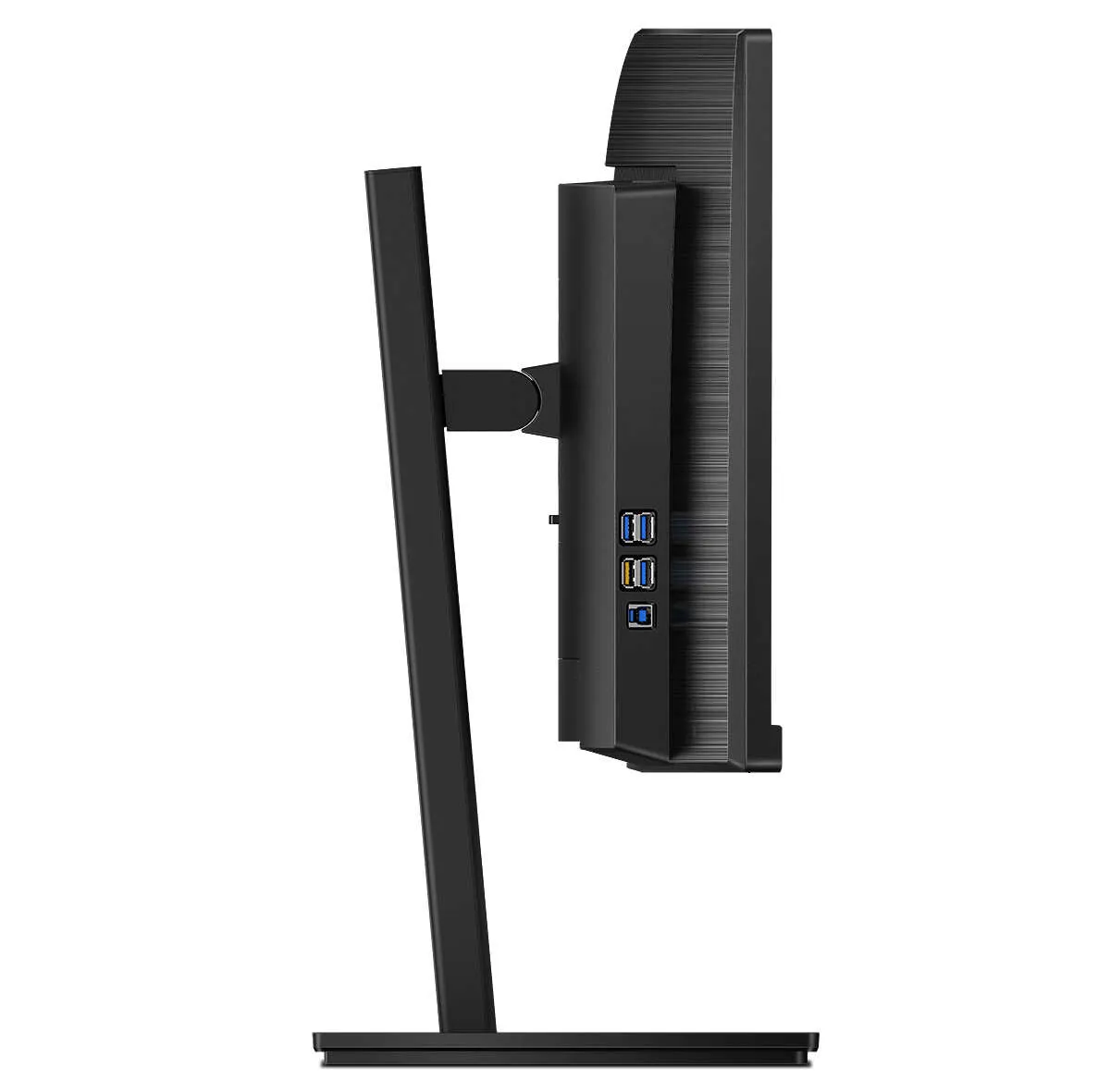

Philips B Line 346B1C/00 34" Quad HD Curved Monitor - 100Hz, 4ms, VA, Adaptive-Sync, Height Adjustable, Speakers, Black
Philips B Line 346B1C/00. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: Quad HD, Display technology: LCD, Display surface: Matt, Response time: 4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178, Viewing angle, vertical: 178. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
The Philips B line 34" curved UltraWide display gives wrap-around view of your work. All-in-one USB-C and ergonomic stand design make for optimal working conditions. Eye comfort features with TUV certified to reduce eye fatigue.
| Display |
|---|
| Adobe RGB coverage | 90% |
| NTSC coverage (typical) | 100% |
| sRGB coverage (typical) | 119% |
| Colour gamut | 100% |
| Surface hardness | 2H |
| Haze rate | 25% |
| Colour gamut standard | sRGB |
| DDC/CI | Yes |
| Display sRGB | Yes |
| Display diagonal (metric) | 86.36 cm |
| Digital vertical frequency | 48 - 100 Hz |
| Digital horizontal frequency | 30 - 160 kHz |
| Viewable size, vertical | 33.4 cm |
| Viewable size, horizontal | 79.7 cm |
| Vertical scan range | 48 - 100 Hz |
| Horizontal scan range | 30 - 160 kHz |
| Pixel pitch | 0.23175 x 0.23175 mm |
| Pixel density | 110 ppi |
| 3D | No |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178 |
| Viewing angle, horizontal | 178 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 100 Hz |
| Contrast ratio (dynamic) | 80000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Aspect ratio | 21:9 |
| Supported graphics resolutions | 3440 x 1440 |

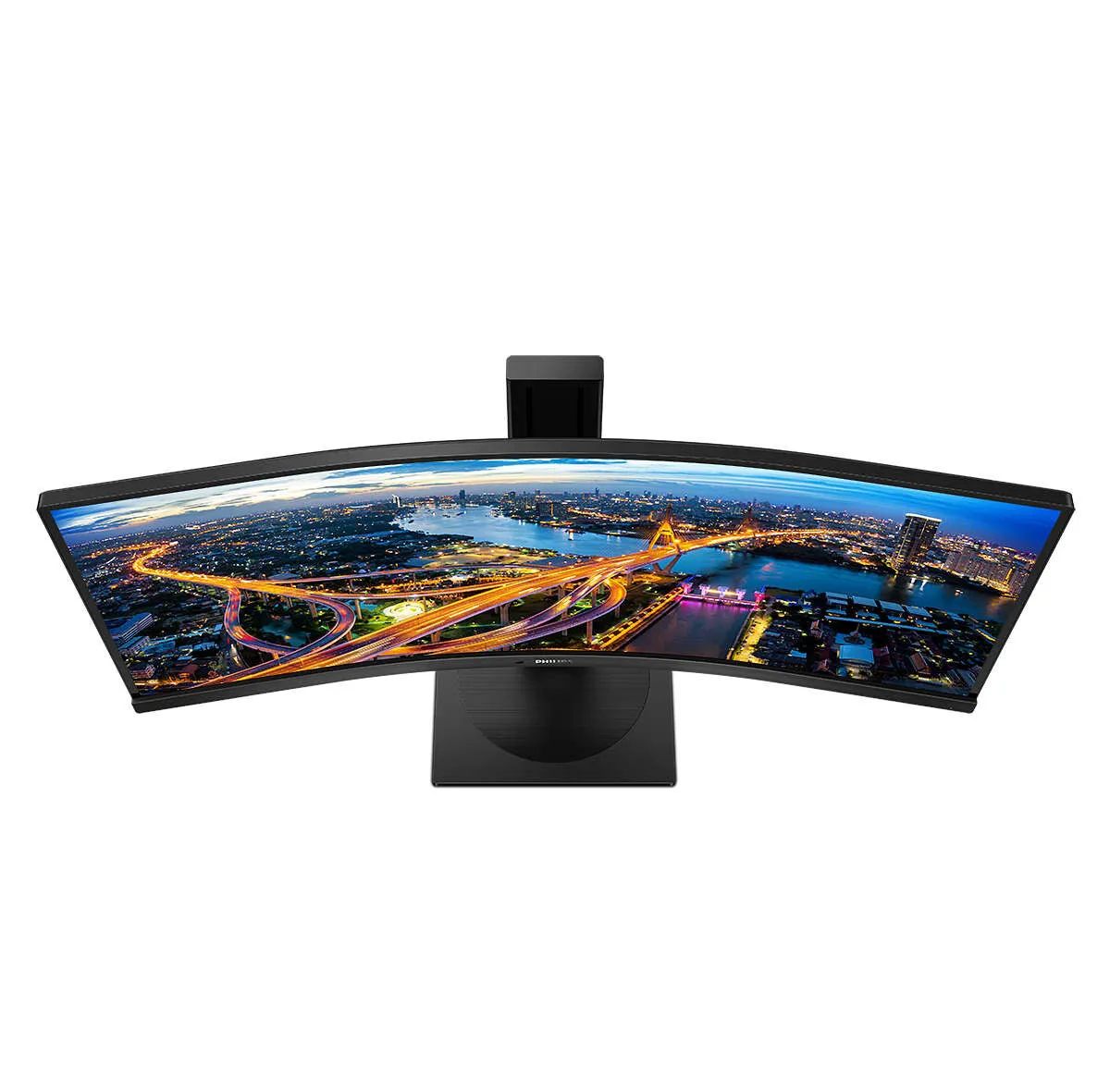

| Screen curvature | 150 cm |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Display surface | Matt |
| Display technology | LCD |
| Backlight type | W-LED |
| HD type | Quad HD |

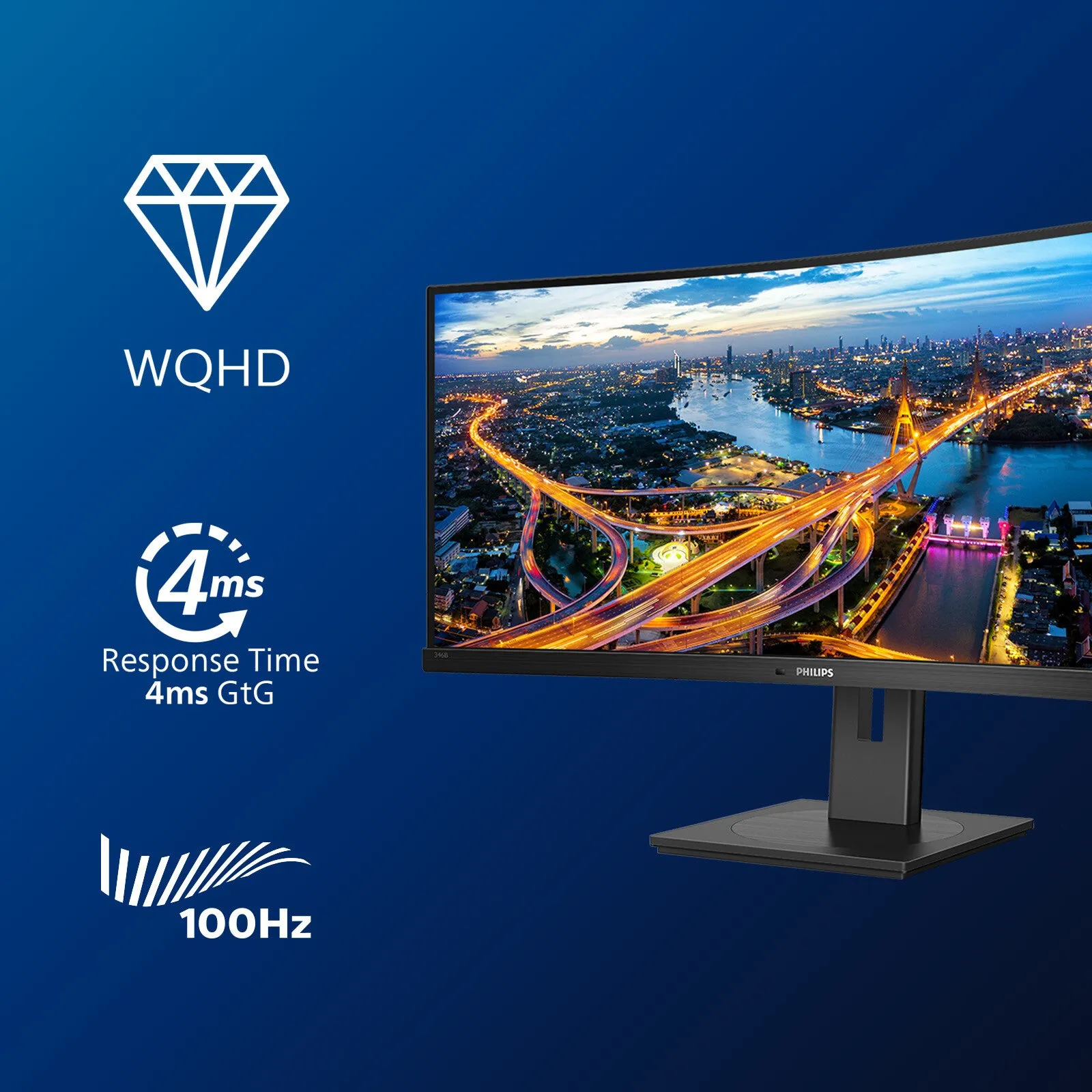

| Response time | 4 ms |
| Display brightness (typical) | 300 cd/m |
| Panel type | VA |
| Native aspect ratio | 21:9 |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34") |
| Performance |
|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Component video sync | Separate sync |
| VESA Adaptive Sync support | Yes |
| Multimedia |
|---|
| RMS rated power | 10 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design |
|---|
| Certification | CB, EPA, cETLus, FCC Class B, ICES-003, CE Mark, TUV/GS, TUV Ergo, SEMKO, CU-EAC, UKRAINIAN, TUV Eye Comfort certified |
| Heavy metals free | Hg (mercury), Pb (lead) |
| Feet colour | Black |
| Front bezel colour | Black |
| Product colour | Black |
| Market positioning | Home |

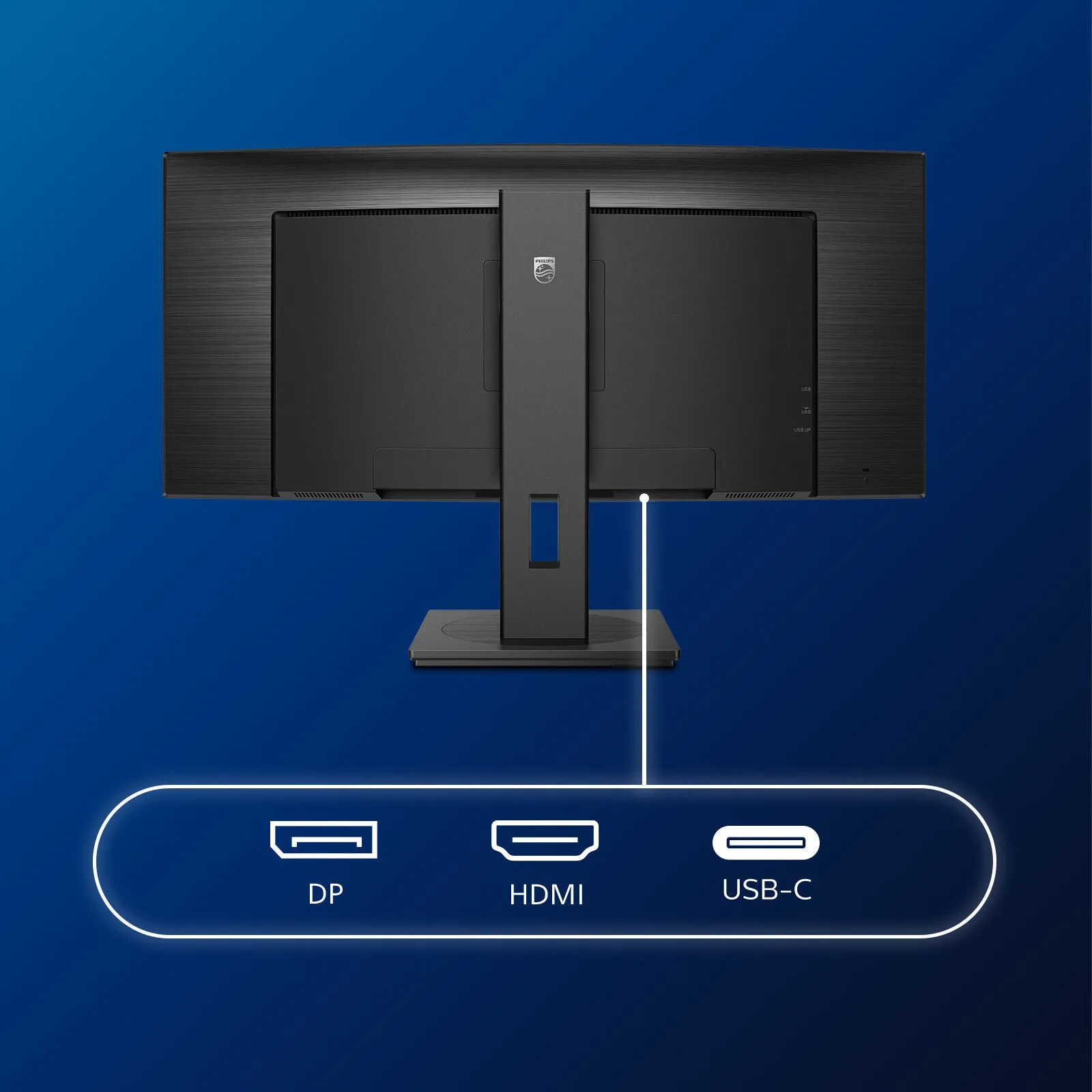

| Ports & interfaces |
|---|
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio input | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 90 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Type-A downstream ports quantity | 4 |
| USB upstream port type | USB Type-B, USB Type-C |
| Number of upstream ports | 2 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |

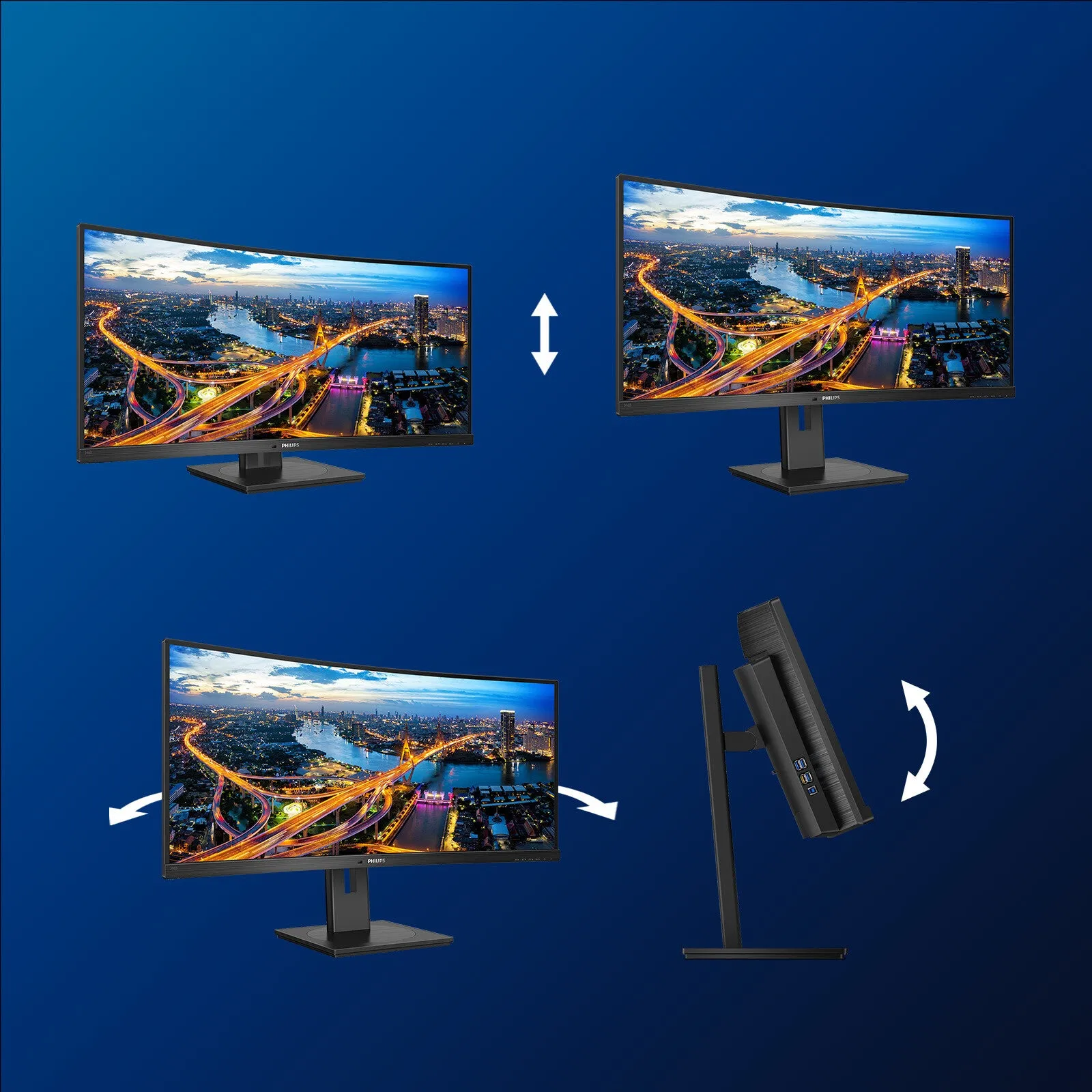

| Ergonomics |
|---|
| LED indicators | Operation, Stand-by |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| On Screen Display (OSD) | Yes |
| Picture-in-Picture | Yes |
| Tilt angle range | -5 - 30 |
| Swivel angle range | -180 - 180 |
| Swivelling | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Adjustable height (max) | 18 cm |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power |
|---|
| External power adapter | No |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 34 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 28.36 W |
| Energy consumption (SDR) per 1000 hours | 35 kWh |
| Energy efficiency class (SDR) | G |
| Operational conditions |
|---|
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 C |
| Operating temperature (T-T) | 0 - 40 C |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code | 420504 |
| Doesn't contain | Mercury, PVC/BFR |
| Sustainability certificates | ENERGY STAR, TCO |
| General |
|---|
| Product family | B Line |
| Weight & dimensions |
|---|
| Weight (without stand) | 7.79 kg |
| Height (without stand) | 367 mm |
| Depth (without stand) | 110 mm |
| Width (without stand) | 807 mm |
| Weight (with stand) | 11.5 kg |
| Height (with stand) | 601 mm |
| Depth (with stand) | 250 mm |
| Width (with stand) | 807 mm |
| Packaging data |
|---|
| Bundled software | SmartControl |
| Package type | Box |
| Package weight | 15.3 kg |
| Package height | 525 mm |
| Package depth | 282 mm |
| Package width | 930 mm |
| Manual | Yes |
| Cables included | HDMI, DisplayPort, USB Type-C, AC |
| Stand included | Yes |
| Logistics data |
|---|
| Harmonized System (HS) code | 85285210 |
| Technical details |
|---|
| Compliance certificates | RoHS |
| Other features |
|---|
| Wake-on-LAN | Yes |
| Picture enhancement | SmartImage |
| Regulatory Approvals | CB; EPA; cETLus; FCC Class B; ICES-003; CE Mark; TUV/GS; TUV Ergo; SEMKO; CU-EAC; UKRAINIAN; TUV Eye Comfort certified |
| MultiView | PIP/PBP mode, 2 x devices |
| Delta E | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mean time between failures (MTBF) | 70000 h |
| Ethernet LAN | Yes |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Touchscreen | No |
| Recyclable packaging material | 100% |
| Light sensor | Yes |
| Philips SmartUniformity | 93 - 105% |
| Exterior finish type | Textured |
| Picture-by-Picture (PbP) | Yes |
| TV tuner integrated | No |
| USB Power Delivery revision | 3.0 |
| On/off switch | Yes |
