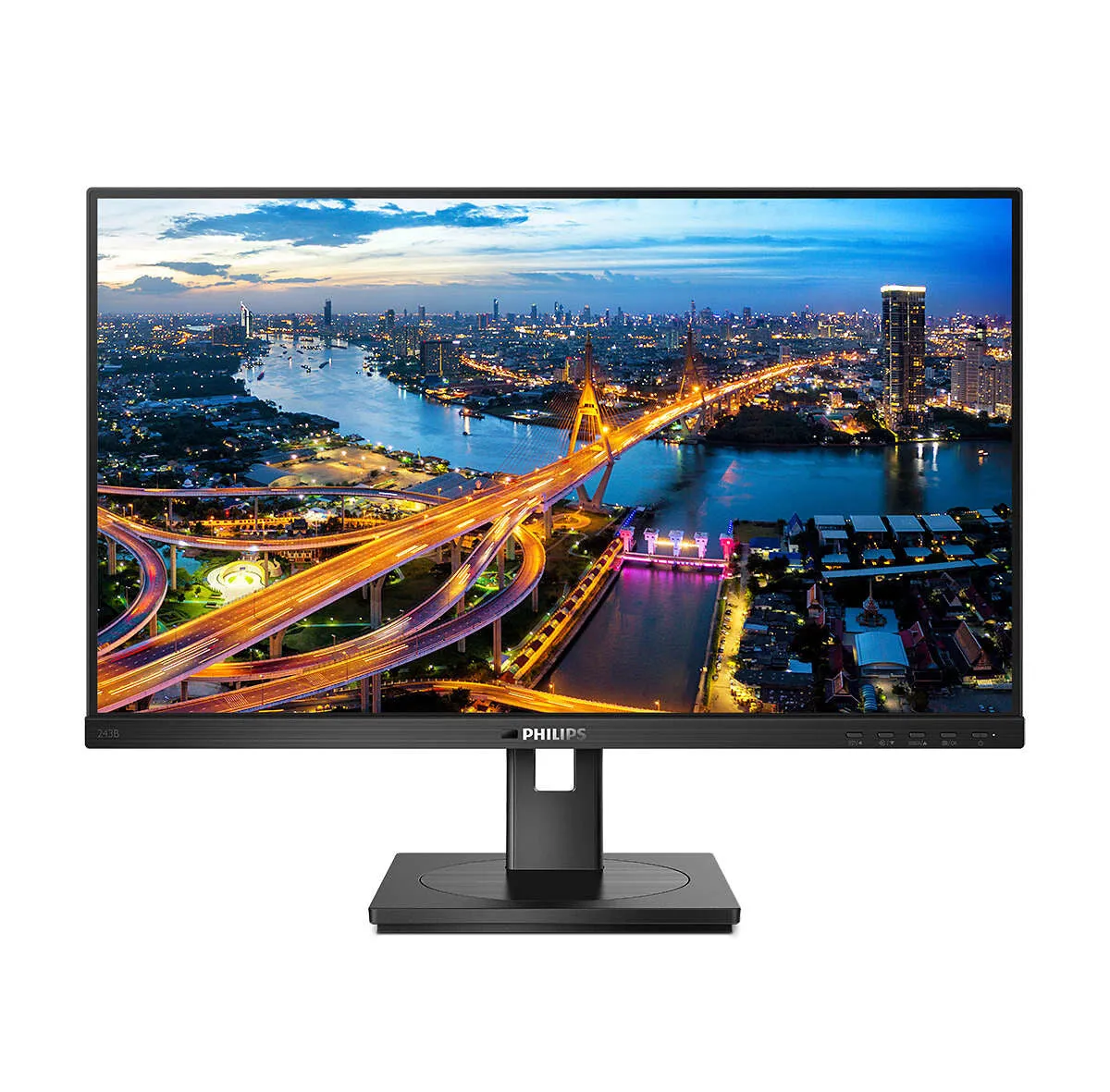

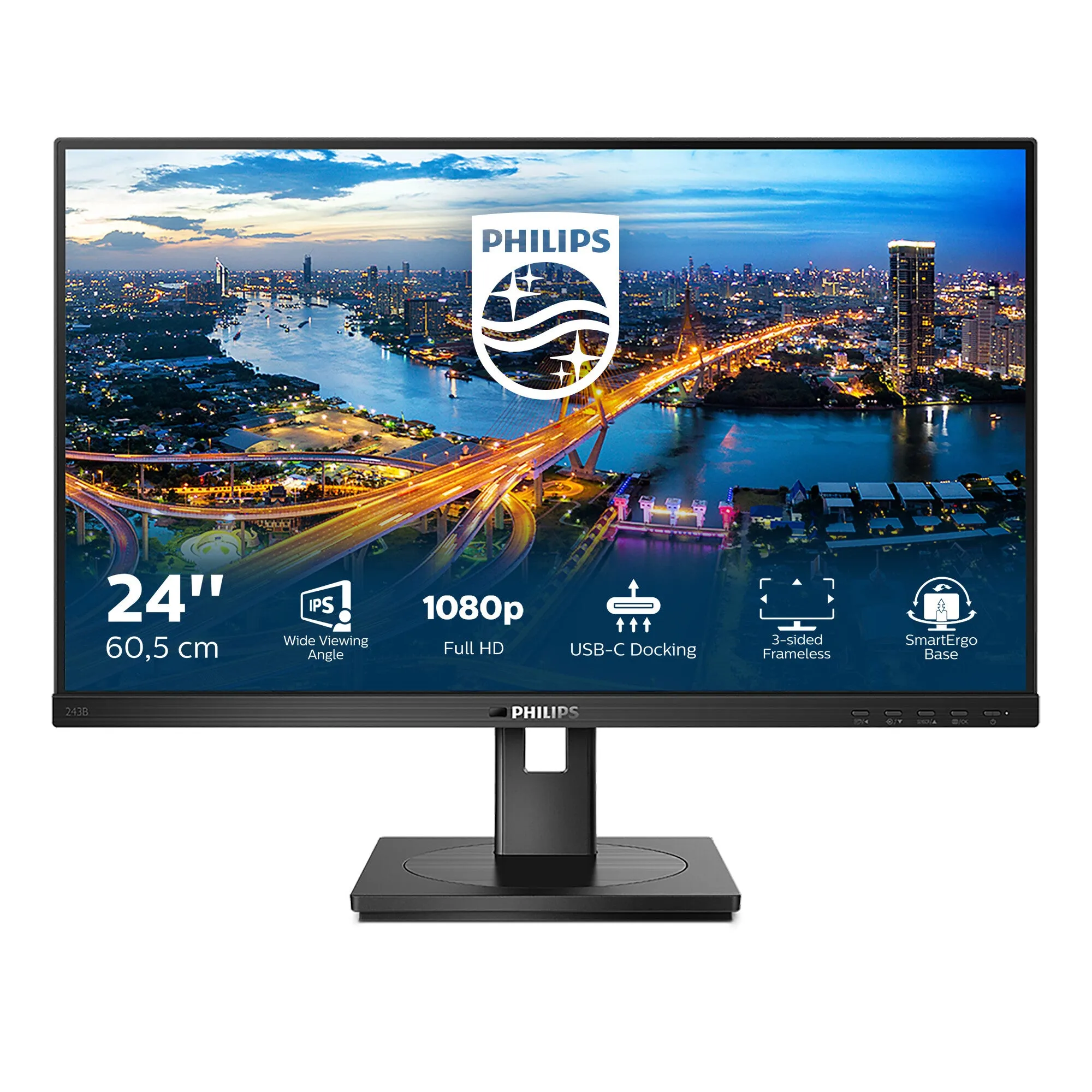

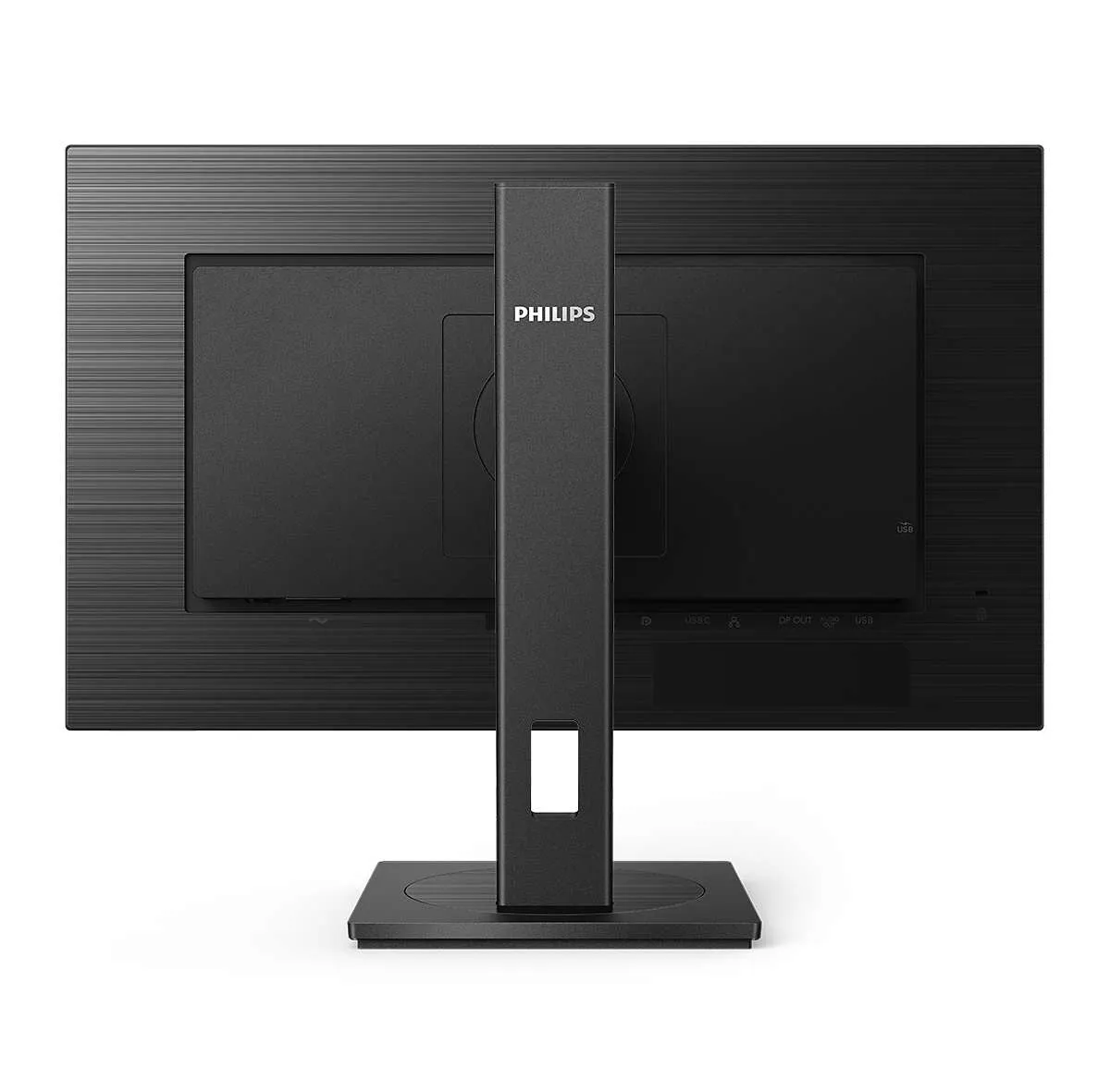

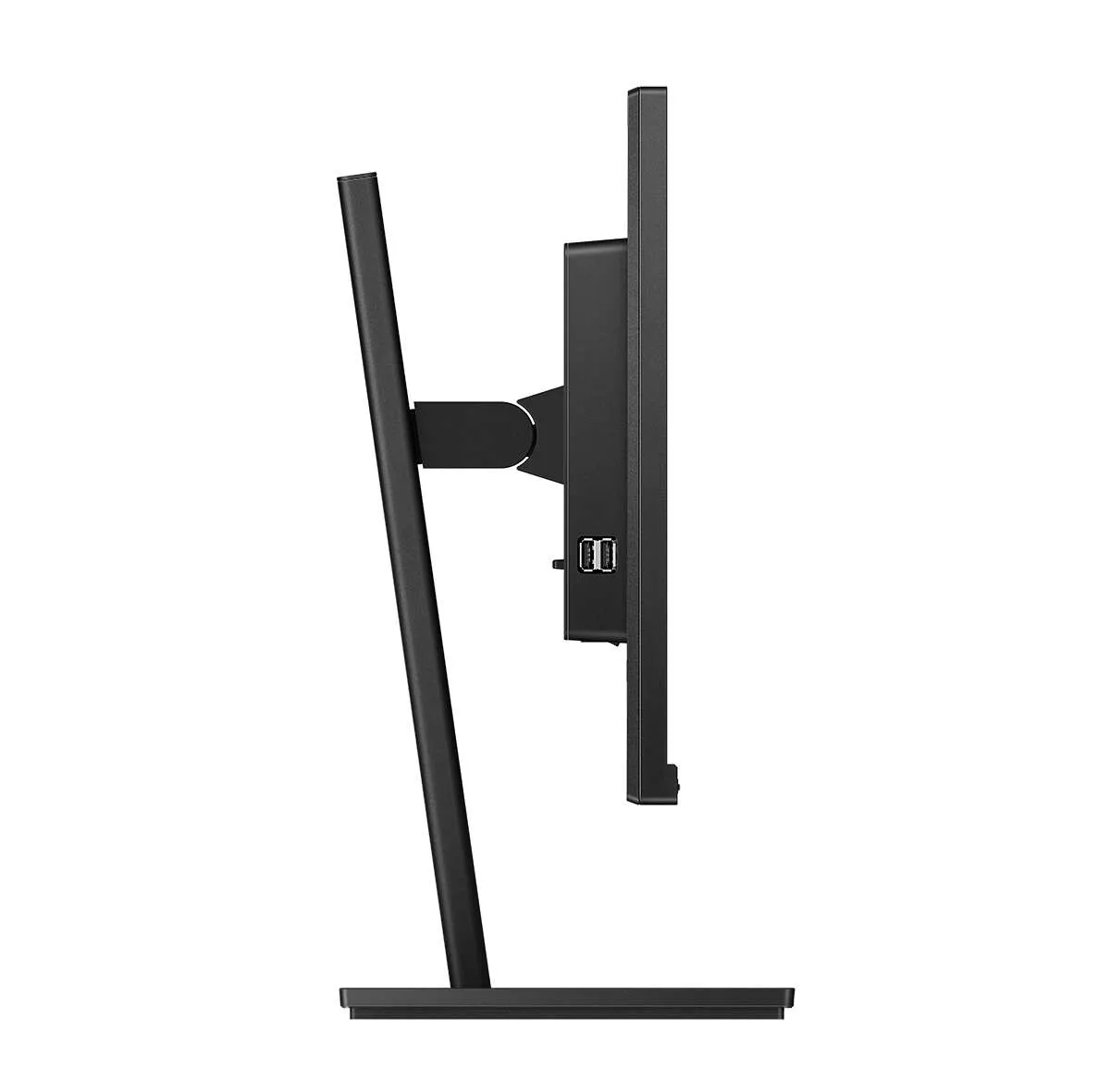

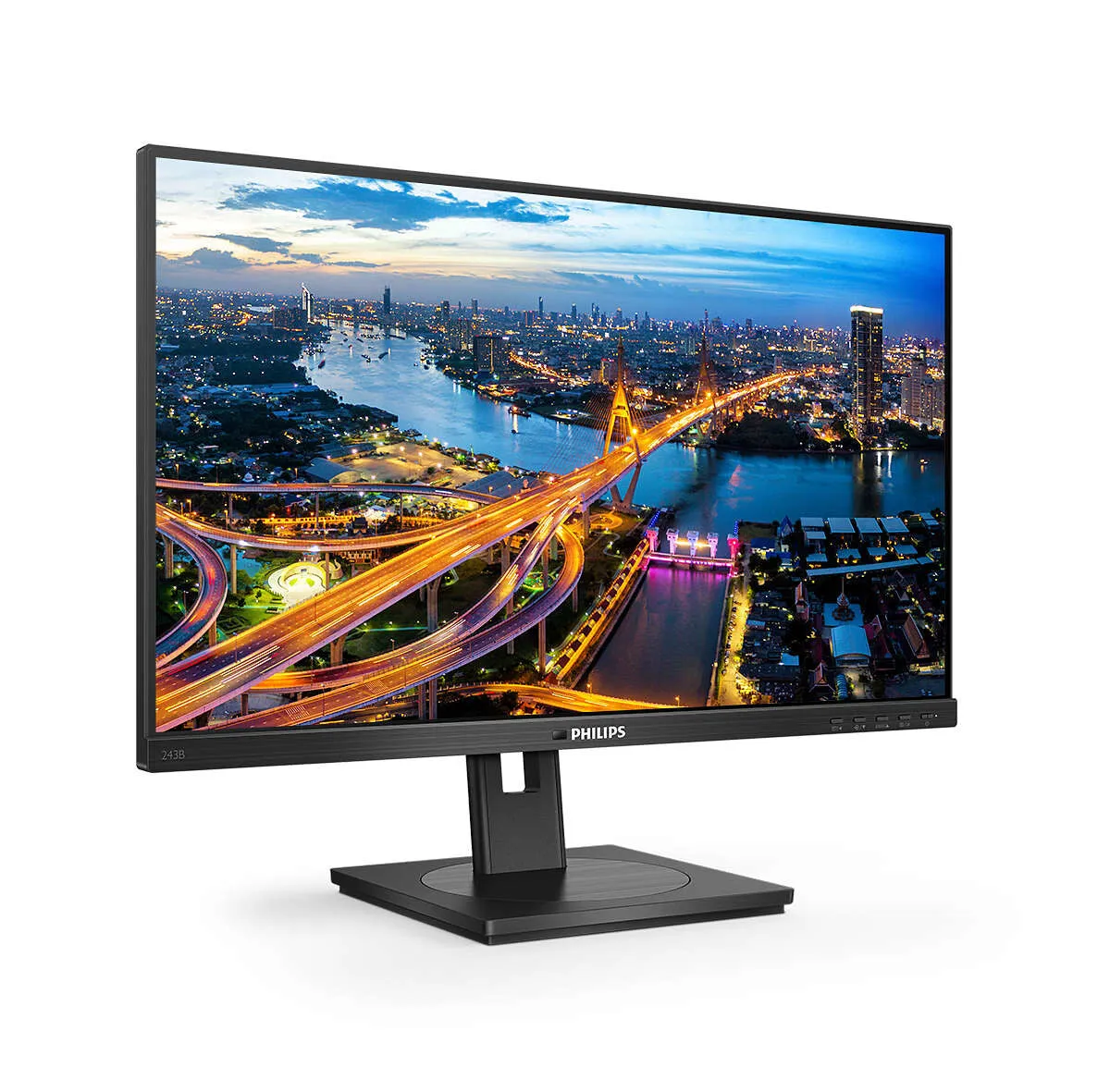

Philips B Line 243B1/00 23.8" Full HD Monitor - 75Hz, 4ms, IPS, Height Adjustable, Speakers, Black
Philips B Line 243B1/00. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178, Viewing angle, vertical: 178. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black
The Philips USB-C monitor replaces cable clutter. View FHD image and recharge a laptop, all at the same time with a single USB-C cable. Features like Daisy chain for multi-display setup, Eye comfort with TUV certified to reduce eye fatigue
| Display |
|---|
| NTSC coverage (typical) | 91% |
| sRGB coverage (typical) | 107% |
| Colour gamut | 91% |
| Surface hardness | 3H |
| Haze rate | 25% |
| Colour gamut standard | sRGB |
| DDC/CI | Yes |
| Colour space supported | NTSC, sRGB |
| Display sRGB | Yes |
| Display diagonal (metric) | 60.5 cm |
| Separate H/V sync | Yes |
| Digital vertical frequency | 48 - 75 Hz |
| Digital horizontal frequency | 30 - 85 kHz |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Vertical scan range | 48 - 75 Hz |
| Horizontal scan range | 30 - 85 kHz |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Pixel density | 93 ppi |
| 3D | No |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178 |
| Viewing angle, horizontal | 178 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (dynamic) | 50000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 900 (WXGA ), 1680 x 1050 (WSXGA ), 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Display technology | LED |
| Backlight type | W-LED |
| HD type | Full HD |
| Response time | 4 ms |
| Display brightness (typical) | 300 cd/m |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance |
|---|
| HBR3 support | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Component video sync | Separate sync |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia |
|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design |
|---|
| Certification | CE Mark, FCC Class B, SEMKO, CU-EAC, EAEU RoHS, TUV/GS, TUV Ergo, UKRAINIAN, ICES-003, CB, TUV Eye Comfort certified |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
| Front bezel colour | Black |
| Product colour | Black |
| Market positioning | Home |
| Ports & interfaces |
|---|
| HDCP version | 1.4 |
| HDCP | Yes |
| DisplayPort output | Yes |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio output | Yes |
| Audio input | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 90 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
| Built-in USB hub | Yes |
| Ergonomics |
|---|
| LED indicators | Operation, Stand-by |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 16 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35 |
| Swivel angle range | -180 - 180 |
| Pivot | Yes |
| Pivot angle | -90 - 90 |
| Swivelling | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Adjustable height (max) | 15 cm |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power |
|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 12.6 W |
| Power consumption (off) | 0 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15.2 W |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Energy efficiency class (SDR) | E |
| Operational conditions |
|---|
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 C |
| Operating temperature (T-T) | 0 - 40 C |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code | 388593 |
| Doesn't contain | PVC/BFR, Mercury |
| Sustainability certificates | ENERGY STAR, TCO |
| General |
|---|
| Product family | B Line |
| Weight & dimensions |
|---|
| Weight (without stand) | 3.4 kg |
| Height (without stand) | 323 mm |
| Depth (without stand) | 51 mm |
| Width (without stand) | 540 mm |
| Weight (with stand) | 4.98 kg |
| Height (with stand) | 501 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 540 mm |
| Packaging data |
|---|
| Bundled software | SmartControl |
| Package weight | 7.66 kg |
| Package height | 465 mm |
| Package depth | 198 mm |
| Package width | 730 mm |
| Manual | Yes |
| Cables included | HDMI, DisplayPort, USB Type-C, AC |
| Stand included | Yes |
| Recycling data |
|---|
| Post-consumer recycled plastic | 85% |
| Recyclable material | 100% |
| Logistics data |
|---|
| Harmonized System (HS) code | 85285210 |
| Technical details |
|---|
| Compliance certificates | RoHS, WEEE |
| Other features |
|---|
| Wake-on-LAN | Yes |
| Picture enhancement | SmartImage |
| Regulatory Approvals | CE Mark; FCC Class B; SEMKO; CU-EAC; EAEU RoHS; TUV/GS; TUV Ergo; UKRAINIAN; ICES-003; CB; TUV Eye Comfort certified |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mean time between failures (MTBF) | 70000 h |
| Ethernet LAN | Yes |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Touchscreen | No |
| Recyclable packaging material | 100% |
| Light sensor | Yes |
| Exterior finish type | Textured |
| TV tuner integrated | No |
| USB Power Delivery revision | 3.0 |
| On/off switch | Yes |
