Philips 172B9T/00 17" SXGA Monitor - 60Hz, 1ms, TN, Height Adjustable, Speakers, Black
Philips 172B9T/00. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Display surface: Gloss, Response time: 1 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170, Viewing angle, vertical: 160. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
A sturdy water- and dust-resistant touch-screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.
| Display |
|---|
| NTSC coverage (typical) | 87% |
| sRGB coverage (typical) | 103% |
| Colour gamut | 87% |
| Surface hardness | 7H |
| Colour gamut standard | sRGB |
| DDC/CI | Yes |
| Display sRGB | Yes |
| Display diagonal (metric) | 43.2 cm |
| Digital vertical frequency | 48 - 75 Hz |
| Digital horizontal frequency | 30 - 85 kHz |
| Viewable size, vertical | 27 cm |
| Viewable size, horizontal | 33.8 cm |
| Vertical scan range | 48 - 75 Hz |
| Horizontal scan range | 30 - 85 kHz |
| Pixel pitch | 0.264 x 0.264 mm |
| Pixel density | 96 ppi |
| 3D | No |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 160 |
| Viewing angle, horizontal | 170 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 50000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 5:4 |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Screen shape | Flat |
| Display surface | Gloss |
| Display technology | LCD |
| Backlight type | W-LED |
| HD type | SXGA |
| Response time | 1 ms |
| Display brightness (typical) | 250 cd/m |
| Touchscreen technology | Projected capacitive system |
| Panel type | TN |
| Native aspect ratio | 5:4 |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17") |
| Performance |
|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Component video sync | Separate sync, Sync-on-green (SOG) |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia |
|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design |
|---|
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Heavy metals free | Hg (mercury) |
| International Protection (IP) code | IP65 |
| Feet colour | Black |
| Front bezel colour | Black |
| Product colour | Black |
| Market positioning | Home |

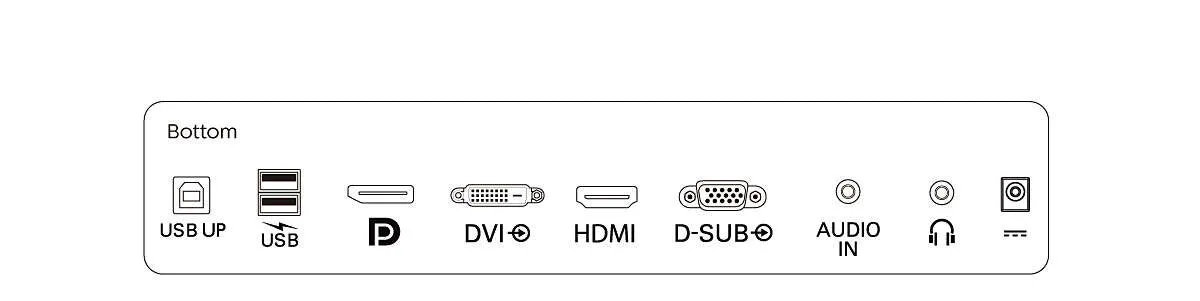

| Ports & interfaces |
|---|
| HDCP | Yes |
| PC Audio in | Yes |
| Headphone out | Yes |
| Audio input | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1.2 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1.4 |
| HDMI | Yes |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| USB Type-A downstream ports quantity | 2 |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics |
|---|
| LED indicators | Operation, Stand-by |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Palm rejection area | 30 x 30 mm |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 90 |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Adjustable height (max) | 7.6 cm |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power |
|---|
| External power adapter | Yes |
| Energy efficiency scale | A to G |
| Power supply type | External |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 7.7 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 9.14 W |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Energy efficiency class (SDR) | D |
| Operational conditions |
|---|
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 C |
| Operating temperature (T-T) | 0 - 40 C |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code | 388185 |
| Doesn't contain | PVC/BFR, Mercury |
| Sustainability certificates | ENERGY STAR, TCO |
| Weight & dimensions |
|---|
| Weight (without stand) | 3.26 kg |
| Height (without stand) | 322 mm |
| Depth (without stand) | 45 mm |
| Width (without stand) | 376 mm |
| Weight (with stand) | 6.24 kg |
| Height (with stand) | 399 mm |
| Depth (with stand) | 227 mm |
| Width (with stand) | 376 mm |
| Packaging data |
|---|
| Bundled software | SmartControl |
| Package type | Box |
| Package weight | 7.95 kg |
| Package height | 420 mm |
| Package depth | 159 mm |
| Package width | 445 mm |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Stand included | Yes |
| Logistics data |
|---|
| Harmonized System (HS) code | 85285210 |
| Technical details |
|---|
| Compliance certificates | RoHS, WEEE |
| Other features |
|---|
| Touch method | Stylus, Finger, Glove |
| Picture enhancement | SmartImage |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
| Recommended resolution | 1280 x 1024 @ 60 Hz |
| Mean time between failures (MTBF) | 70000 h |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Folding angle | 70 |
| EasyRead mode | Yes |
| Multi-touch | Yes |
| Number of simultaneous touchpoints | 10 |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Display viewable area (HxV) | 337.9 x 270.3 mm |
| Recyclable packaging material | 100% |
| TV tuner integrated | No |
| On/off switch | Yes |
