Intel Core i5-11400F (12MB Cache, 2.6GHz), 16GB DDR4-SDRAM, 512GB SSD, NVIDIA GeForce RTX 3060 Ti (8GB GDDR6), LAN, WLAN, Bluetooth, Windows 10 Home

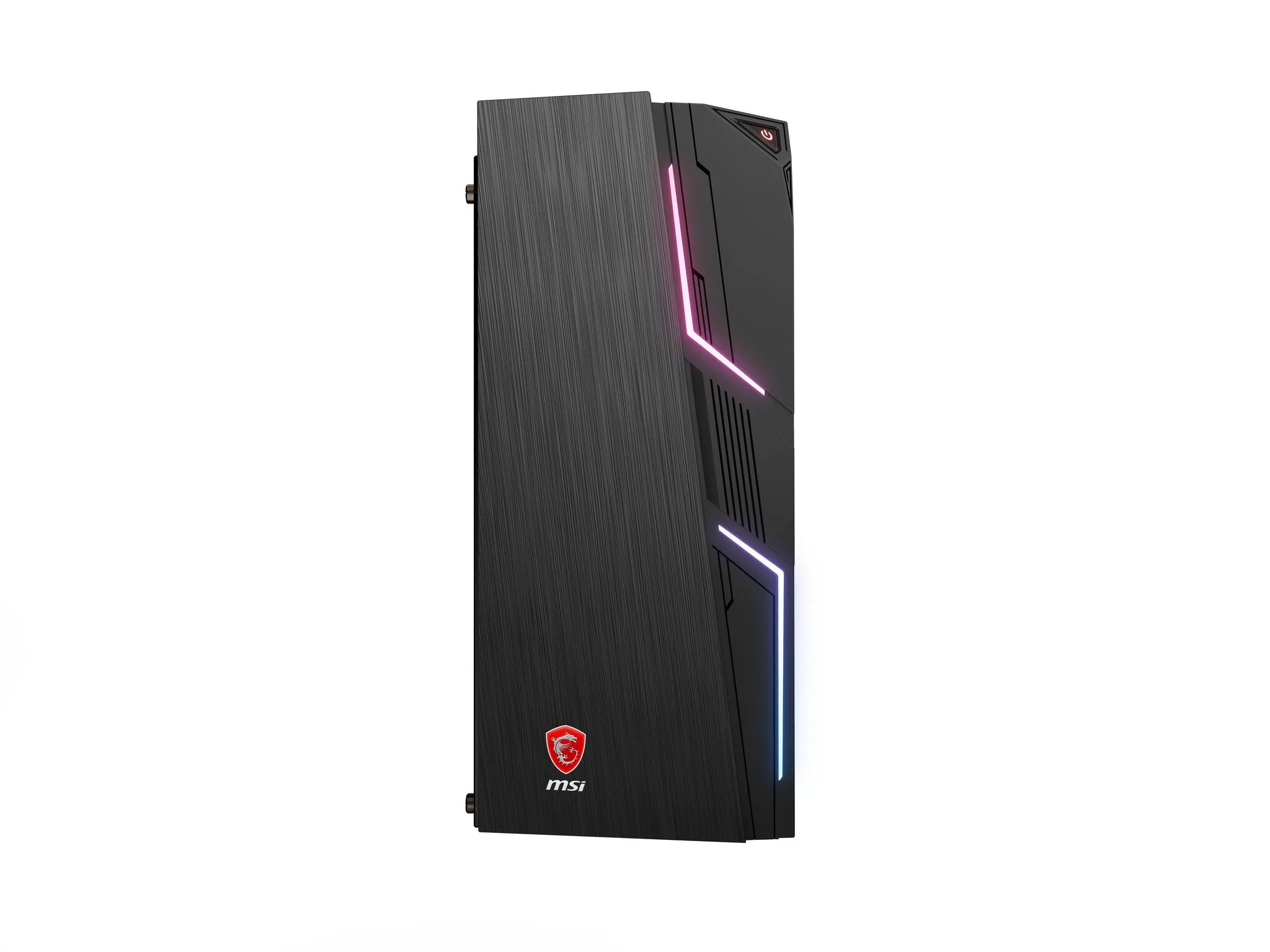

MSI MAG Codex 5 11TG-820UK. Processor frequency: 2.6 GHz, Processor family: Intel Core i5, Processor model: i5-11400F. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD. Discrete graphics card model: NVIDIA GeForce RTX 3060 Ti. Operating system installed: Windows 10 Home. Power supply: 500 W. Chassis type: Desktop. Product type: PC. Weight: 9.4 kg. Product colour: Black
CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
RULE YOUR GAMING EMPIRE WITH MINIMALIST STYLE
MAG Codex 5 series gaming desktop is designed for entry gamers, features Intel latest processor and the latest NVIDIA RTX series graphics card, providing the best gaming experience. Exclusive thermal solution with the best air cooling, promise the longer system performance, RGB lighting effect design with tempered glass, show off your personally gaming style, MSI MAG Codex 5 series will lead the players to conquer the wonderful battles.
ULTIMATE PERFORMANCE
With the 11th Gen Intel Core i7 processor built in, MAG Codex 5 provide the exceptional performance. Bring you the extraordinary gaming experiences.
MAG CODEX 5 AIR FLOW PATH
MAG Codex 5 gaming desktop has large surface dedicated for air-inlet, and a large inner space for installing fans. Such efficient heat-dissipating design will prevent the system from overheating during high performance.

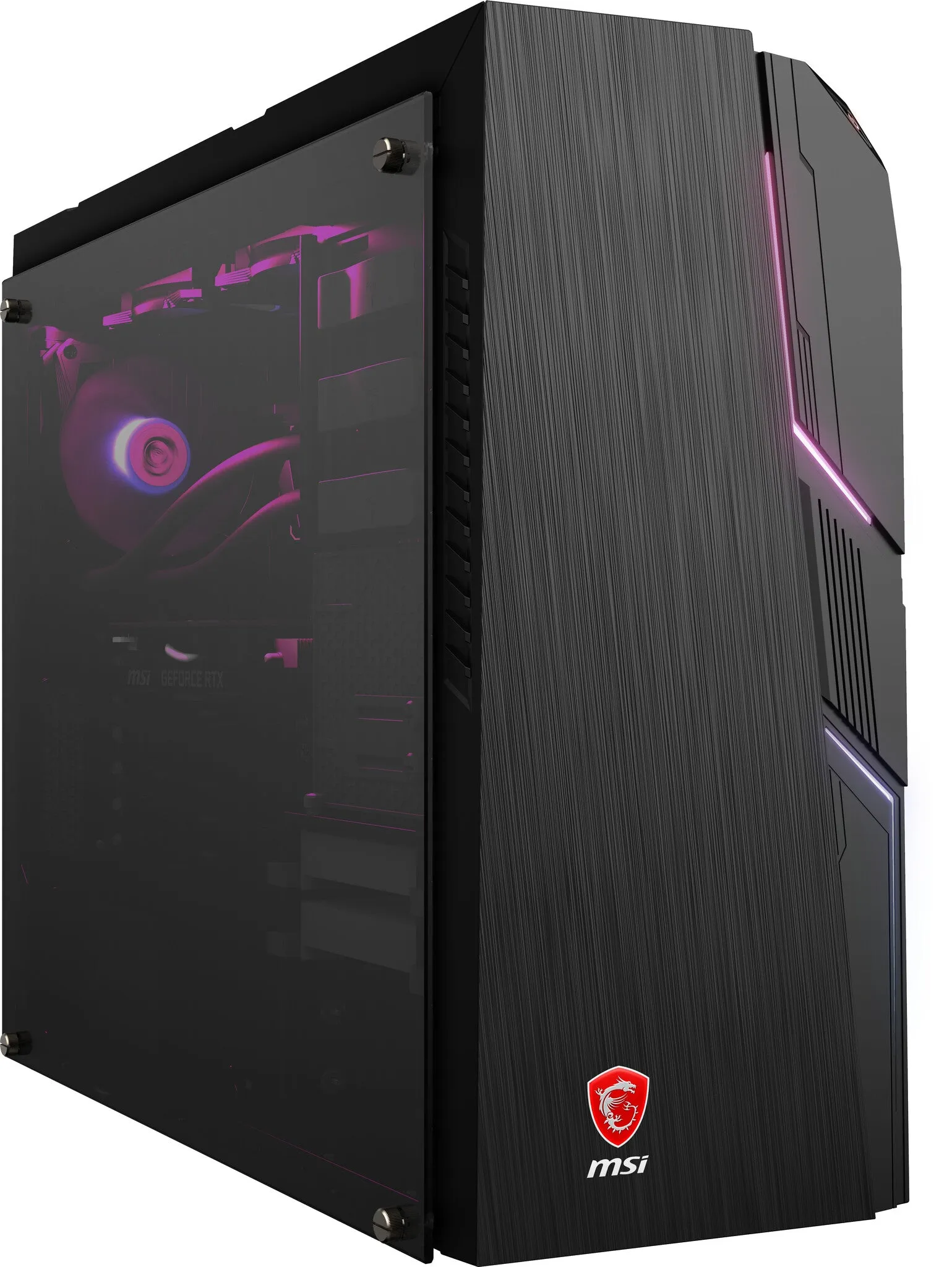

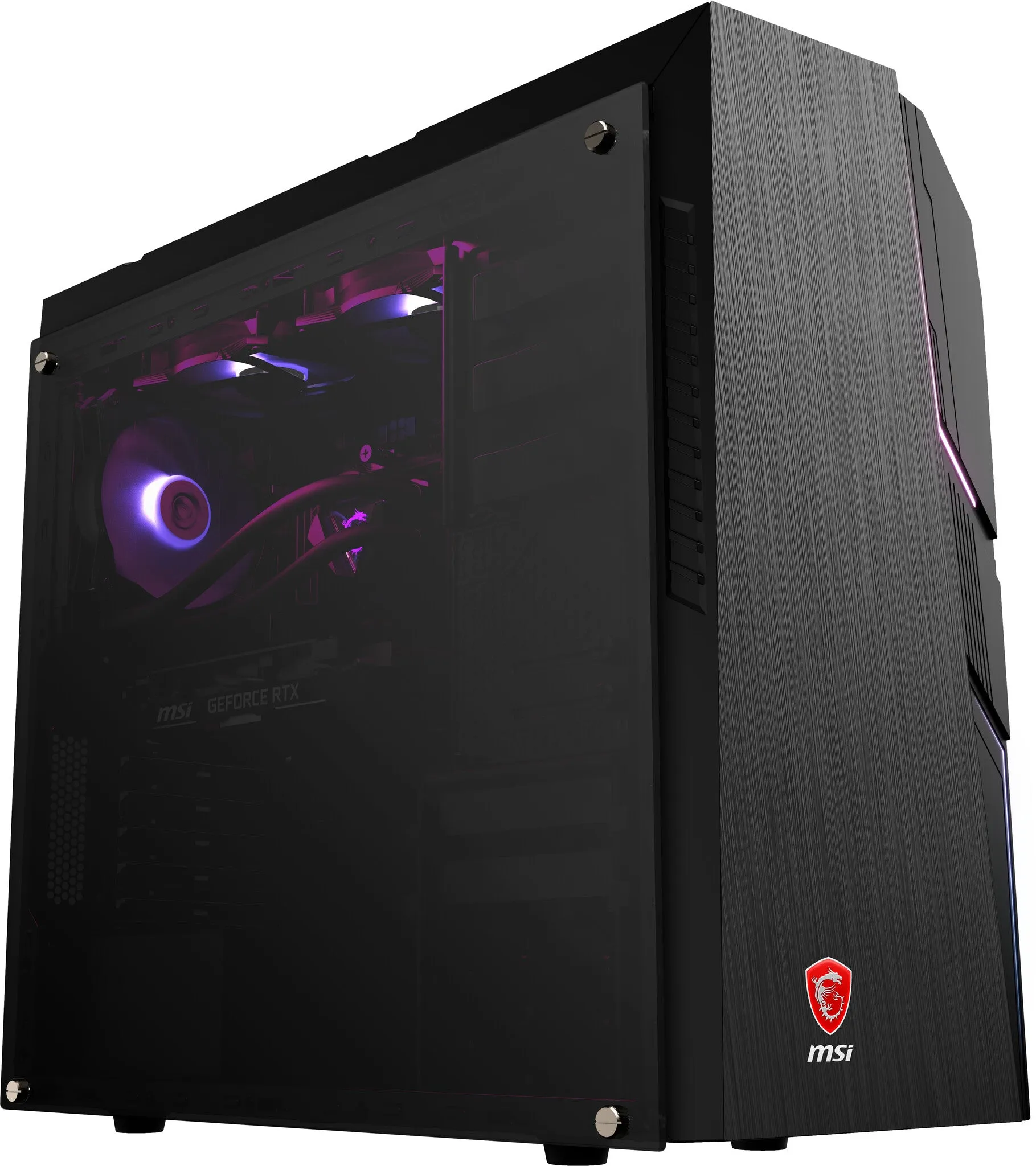

BEAUTY AND SOLID TEMPERED GLASS PANEL
The MAG Codex 5 features glass panel design, the solid tempered glass panel can prevent damage, pass through the glass panel you can show the personalized configuration clearly.
PERSONALIZE YOUR GAMING RIG
Customize your MAG Codex 5 with Mystic Light. You can select any of the colors from the palette to match your systems and other devices design, and more LED effects to choose.
ALWAYS READY FOR GAMING
Upgradability is one of the key reasons to choose MSI GAMING desktops, MAG Codex 5 series has easy to upgrade design, you can easily upgrade your gaming rig to the latest components without compromise, fulfill the 3A games system requirements.
LIGHTNING FAST
Unleash the full potential with the latest SSD technology, the NVM Express. 6 times faster than traditional SATA SSD.
FLEXIBLE UPGRADE
ATX is the standard size for all the components inside a computer. ATX components are easy to find and have various options from different brands. To provide a flexible upgrade experience for the users, MSI utilizes ATX components and motherboard slots to build up its gaming desktops, preventing users from getting the products of wrong size.
AUDIO BOOST HOW SOUND IS MEANT TO BE HEARD
Enhance audio detail by 30% with built-in AMP (Audio Power Amplifier) and golden audio jack.

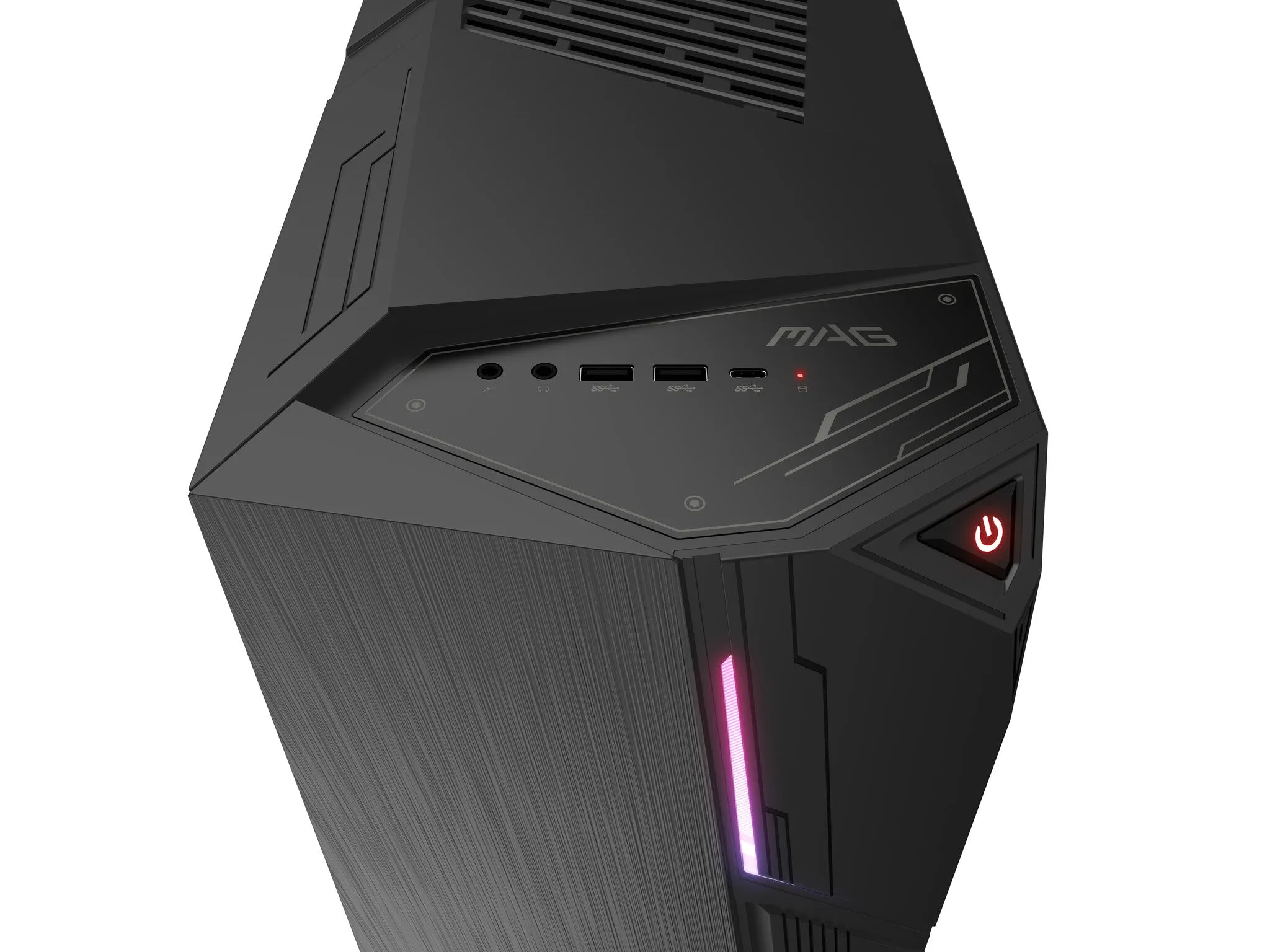

TYPE-C REVERSIBLE CONNECTOR FOR NEXT-GEN USB
Build in front type C , with reversible connector design your can easily connect your portable device.
MSI APP PLAYER
Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless gaming experience between mobile games and PC platform, and leverages customized features as specific keyboard lighting and better graphics with multi-task works.
24 months
| Processor |
|---|
| Number of processors installed | 1 |
| Processor cache | 12 MB |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.4 GHz |
| Processor cores | 6 |
| Processor model | i5-11400F |
| Processor generation | 11th gen Intel Core i5 |
| Processor family | Intel Core i5 |
| Processor manufacturer | Intel |
| Memory |
|---|
| Memory clock speed | 3200 MHz |
| Memory slots | 2x DIMM |
| Maximum internal memory | 64 GB |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Storage |
|---|
| SSD form factor | M.2 |
| SSD interface | NVMe |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Graphics |
|---|
| On-board graphics card model | Not available |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 Ti |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | No |
| Discrete graphics card | Yes |
| Network |
|---|
| Bluetooth | Yes |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Intel WGI219V |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |

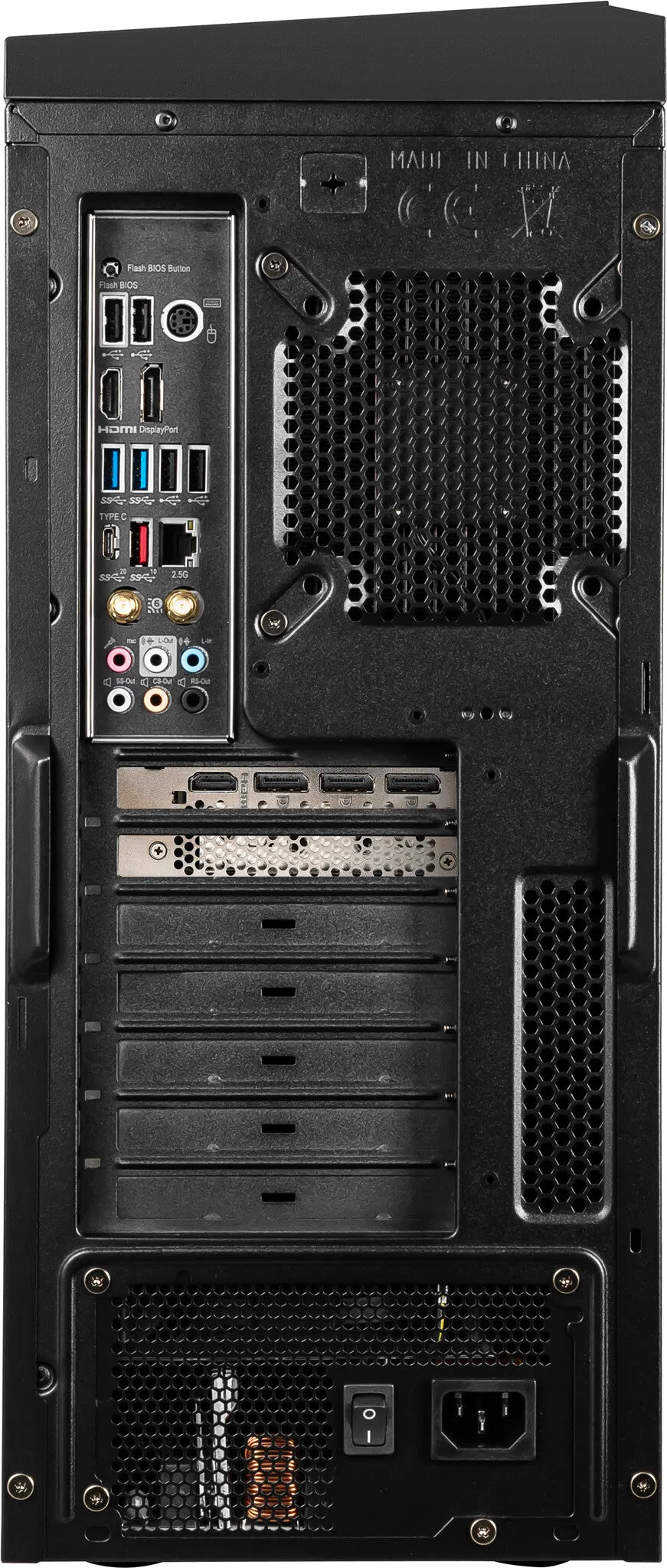

| Ports & interfaces |
|---|
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 6 |
| Design |
|---|
| Country of origin | China |
| Product colour | Black |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Volume | 40 L |
| Chassis type | Desktop |
| Performance |
|---|
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel H510 |
| Market positioning | Gaming |
| Product type | PC |
| Software |
|---|
| Operating system installed | Windows 10 Home |
| Processor special features |
|---|
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power |
|---|
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply | 500 W |
| Operational conditions |
|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 C |
| Operating temperature (T-T) | 0 - 35 C |
| Certificates |
|---|
| Certification | FCC(Class B)CB/CEUL(CUL)BSMIVCCIRCM(C-Tick) |
| Weight & dimensions |
|---|
| Package weight | 14.1 kg |
| Package height | 645 mm |
| Package depth | 351 mm |
| Package width | 611 mm |
| Weight | 9.4 kg |
| Height | 466 mm |
| Depth | 514.8 mm |
| Width | 195 mm |
| Packaging content |
|---|
| Display included | No |
| General |
|---|
| Product family | MAG Codex |
| Other features |
|---|
| Commodity Classification Automated Tracking System (CCATS) | 8471410000 |
