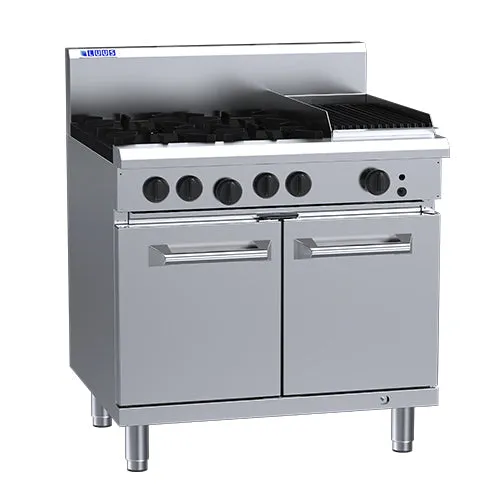

LUUS Professional 4 Burner Chargrill Oven 900mm - RS-4B3C
Our static ovens feature a thick mild steel sole plate to ensure even heat distribution, while nickel plated Italian made 28mj ARC open burners fitted with flame failure deliver performance and safety. The RS series is available in 600, 900 and 1200mm wide models and include multiple open burner, griddle and chargrill combinations. At only 800mm deep they areideal for small spaced kitchens.
24month Platinum Warranty
Open Burners
Nickel plated cast iron 28 mj dual-flame ring burners
Flame failure device standard
Variable flame control valve with low flame setting
Heavy duty cast iron trivets
Pressed 0.7mm 304 stainless steel spillage bowls
Oven
29mj oven burner with mild steel sole plate
Oven flame failure, pilot & piezo ignition as standard
100-340 C thermostat control
Internal cooking space: 740mm x 550mm x 300mm H
Vitreous enamel 1.5mm internal oven door/wall lining
Fibertex Rockwool insulation in oven walls & doors
French (swing) doors for easy oven access
304 stainless steel cool touch door handles
Suits 2/1 Gastronorm size trays
Chrome oven rack supports with 4 positions
Supplied with 2 oven racks
Chargrill/Barbecue
33 mj burners with pilot, FFD and piezo ignition
Cast-iron radiant hood system
RS-4B3C bbq: 280mm x 520mm; 0.15m2 cooking area
Overall Construction
Heavy duty construction
Welded 1.2mm 304 stainless steel front hob
Front, side & door panels 0.9mm 304 stainless steel
Splashback 1.2 mm 304 stainless steel
Stainless steel feet with 55mm height adjustment range
Secondary catchment tray 0.9mm stainless steel
Modular Professional series design
Dimensions
900mm x 800mm x 1100mm H
Working height 900mm
Weight 179kg
Packed dimensions 940mm x 860mm x 1260mm H
Packed weight 204kg
Connections
Gas 3/4 BSP male
180mm from right, 50mm from rear, 140mm from floor
Supplied with Natural gas regulator
Cleaning & Servicing
Removable burner hoods and spillage bowls
Secondary undertray to catch any additonal waste
Oven racks, supports and sole plate easy to remove
Easy access to all parts & components from front
