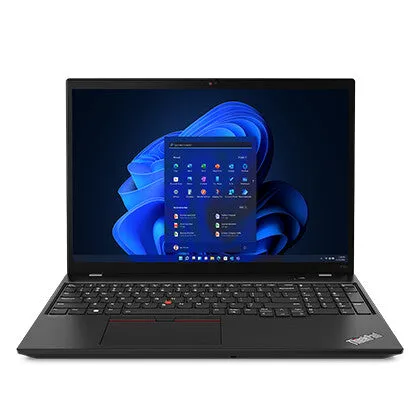

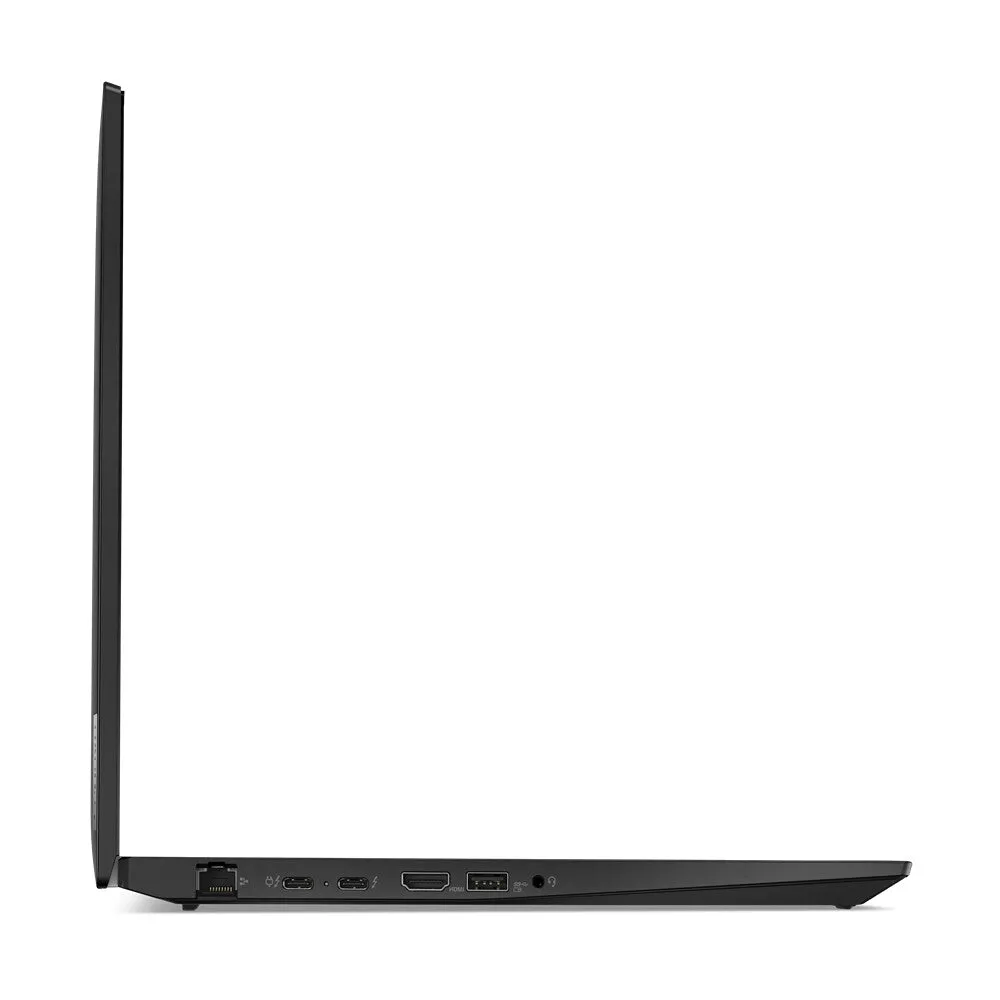

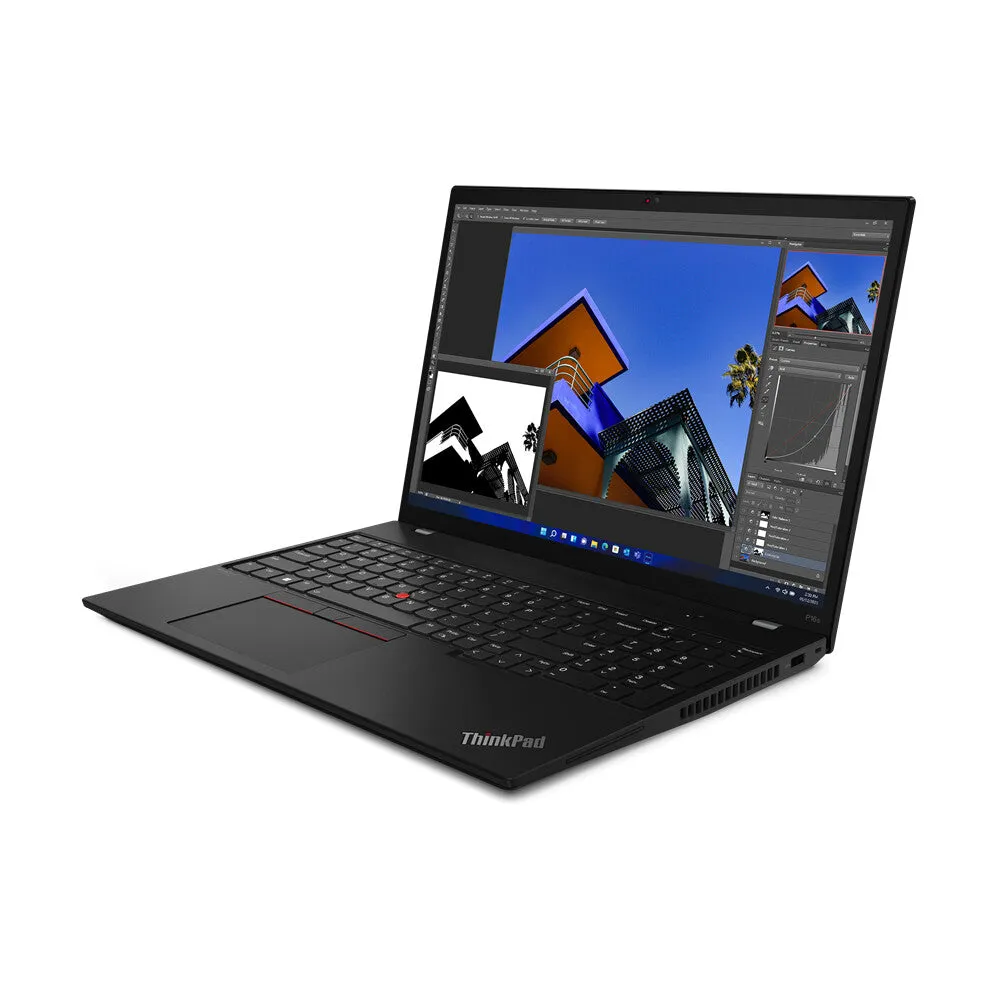

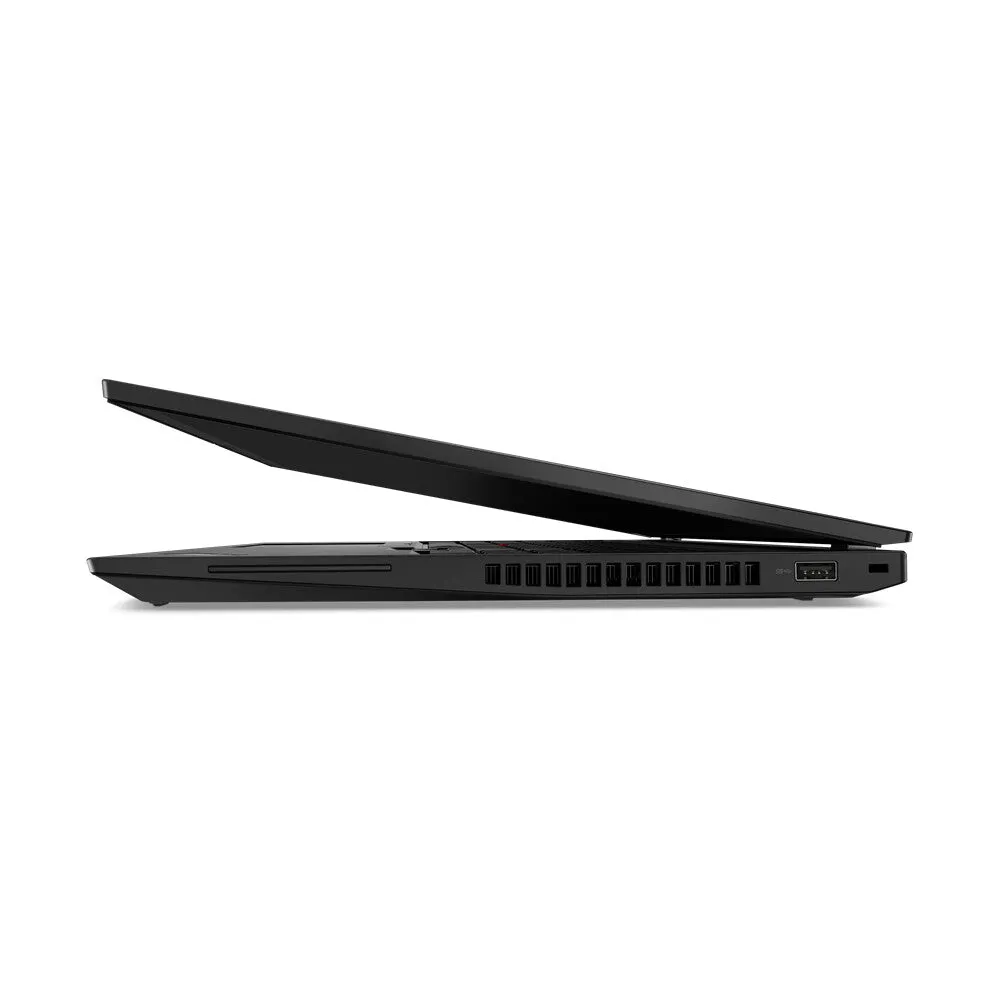

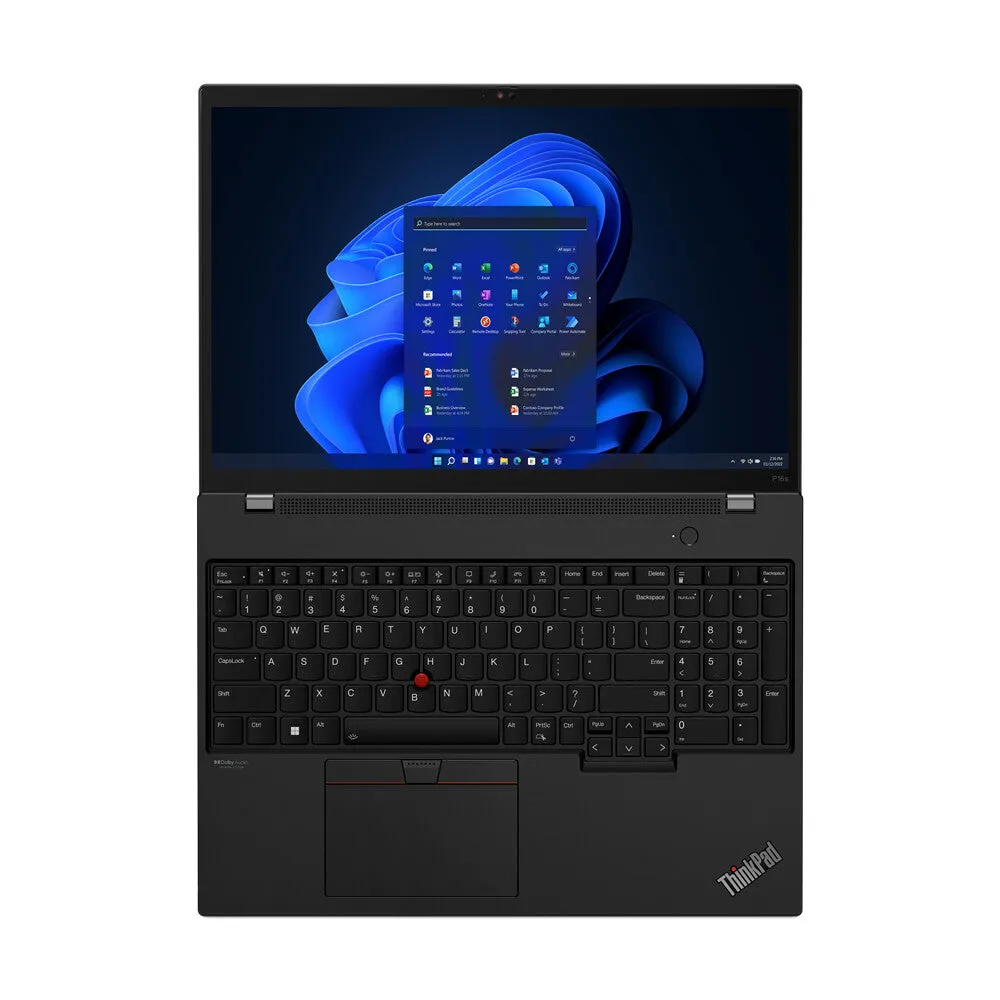

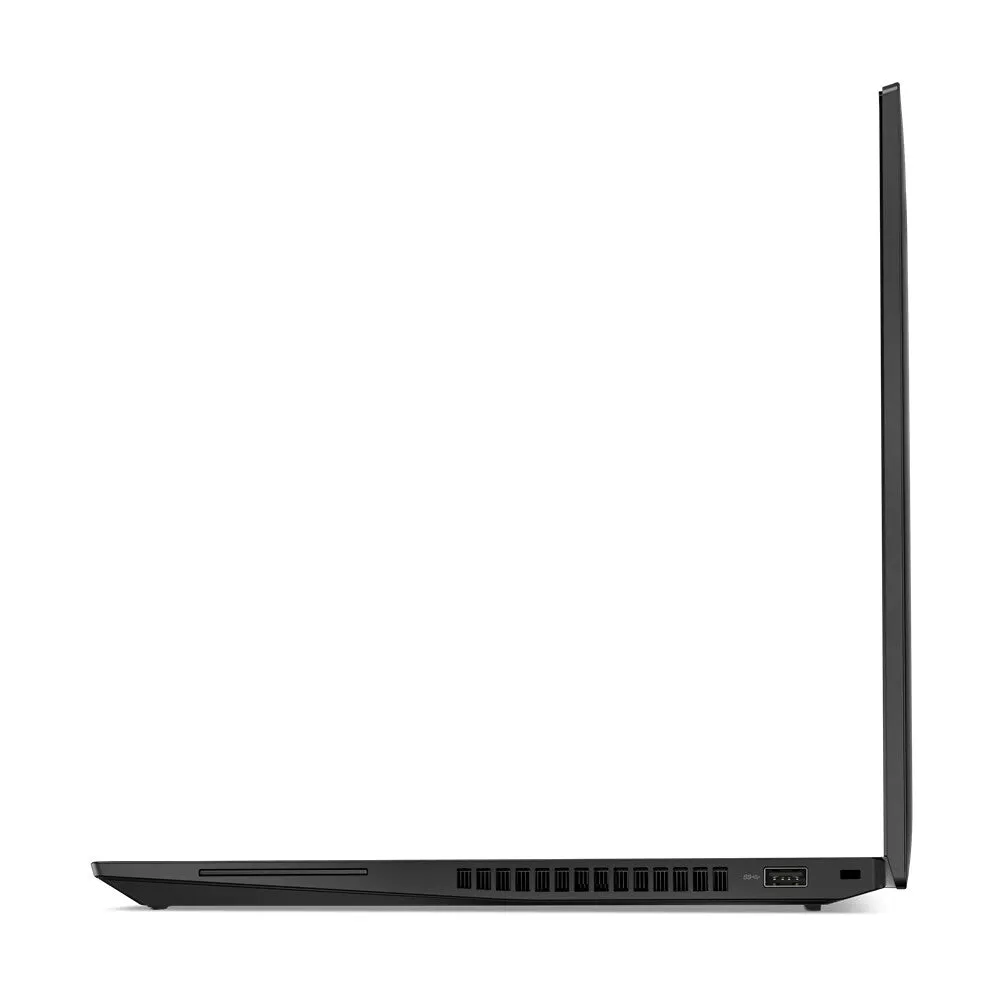

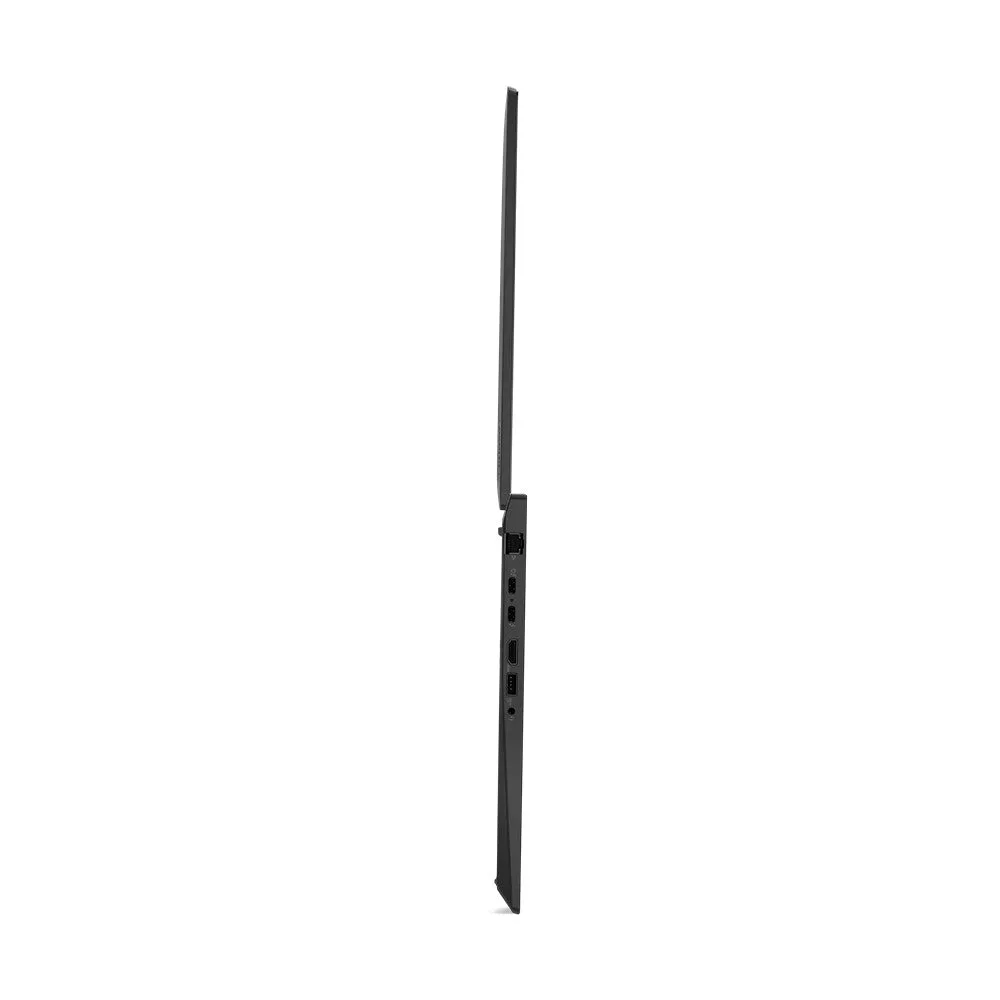

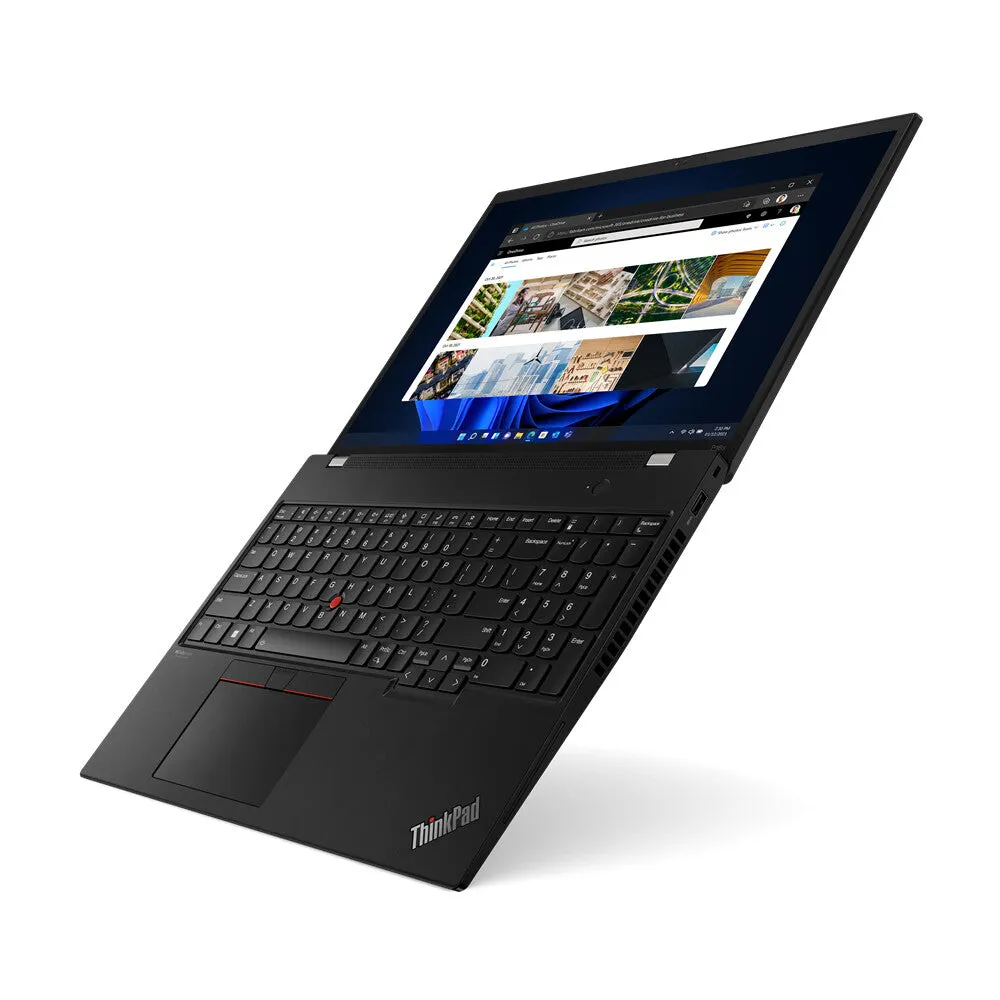

Lenovo ThinkPad P16s G1 16" Mobile Thin Client - Intel Core i5-1240P, 16GB RAM, 512GB SSD, Windows 11 Pro, Black
Lenovo ThinkPad P16s Gen 1 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core i5, Processor model: i5-1240P. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics, Discrete graphics card model: NVIDIA Quadro T550. Operating system installed: Windows 11 Pro. Product colour: Black
Real power meets real freedom
- Powerful, high-performance 16" mobile workstation, ISV-certified
- Latest Intel Core processors, plus choice of NVIDIAor Intel graphics
- Multiple display options, including WQXGA &X-Rite colour calibration
- Next-gen memory & storage for seamless multitasking
- Superb connectivity, including Intel WiFi 6E & Intel Thunderbolt 4
- Includes number pad, glass-like touchpad, & webcam privacy shutter
3-year, Depot
| Design |
|---|
| Housing material | Carbon fibre, Glass fibre, Polycarbonate (PC), Polyphenylene sulfide (PPS) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display |
|---|
| Colour gamut | 45% |
| RGB colour space | NTSC |
| Display brightness | 300 cd/m |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor |
|---|
| Configurable TDP-down | 20 W |
| Motherboard chipset | Intel SoC |
| Processor cache | 12 MB |
| Processor cores | 12 |
| Processor boost frequency | 4.4 GHz |
| Processor model | i5-1240P |
| Processor generation | 12th gen Intel Core i7 |
| Processor family | Intel Core i5 |
| Processor manufacturer | Intel |
| Memory |
|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 40 GB |
| Memory slots | 1x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | On-board SO-DIMM |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage |
|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics |
|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA Quadro T550 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio |
|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio |
| Audio chip | Realtek ALC3287 |
| Camera |
|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera | Yes |
| Network |
|---|
| WWAN | Installed |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Bluetooth | Yes |

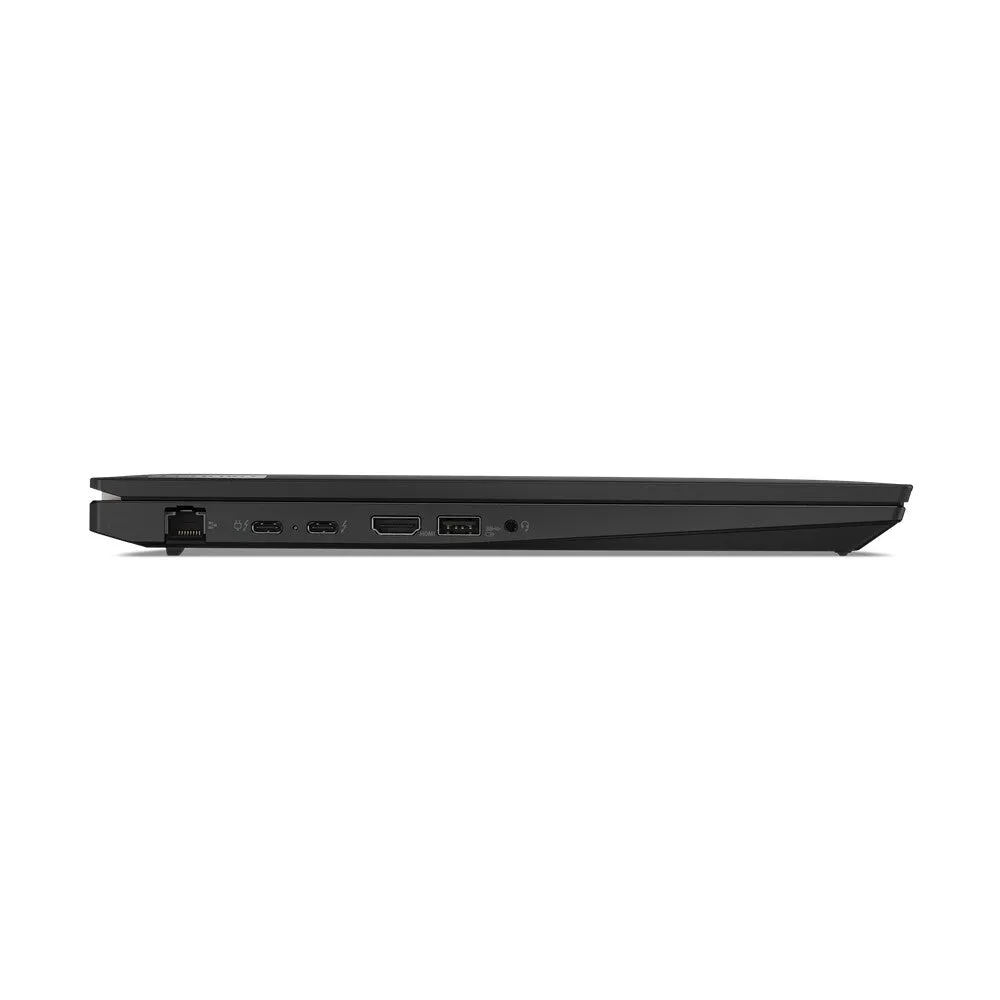

| Ports & interfaces |
|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel Thunderbolt 4 | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard |
|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software |
|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features |
|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| CPU configuration (max) | 1 |
| Battery |
|---|
| Battery capacity (Watt-hours) | 52.5 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power |
|---|
| AC adapter power | 100 W |
| Security |
|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Smart card reader | Yes |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 C |
| Operating temperature (T-T) | 5 - 35 C |
| Certificates |
|---|
| Certification | EPEAT GoldENERGY STAR 8.0TCO Certified 9.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability |
|---|
| Sustainability certificates | TCO, ENERGY STAR, EPEAT Gold |
| Weight & dimensions |
|---|
| Height | 20.8 mm |
| Depth | 255.5 mm |
| Width | 361.9 mm |
| Weight | 1.68 kg |
| General |
|---|
| Product family | ThinkPad |
| Product series | P |
