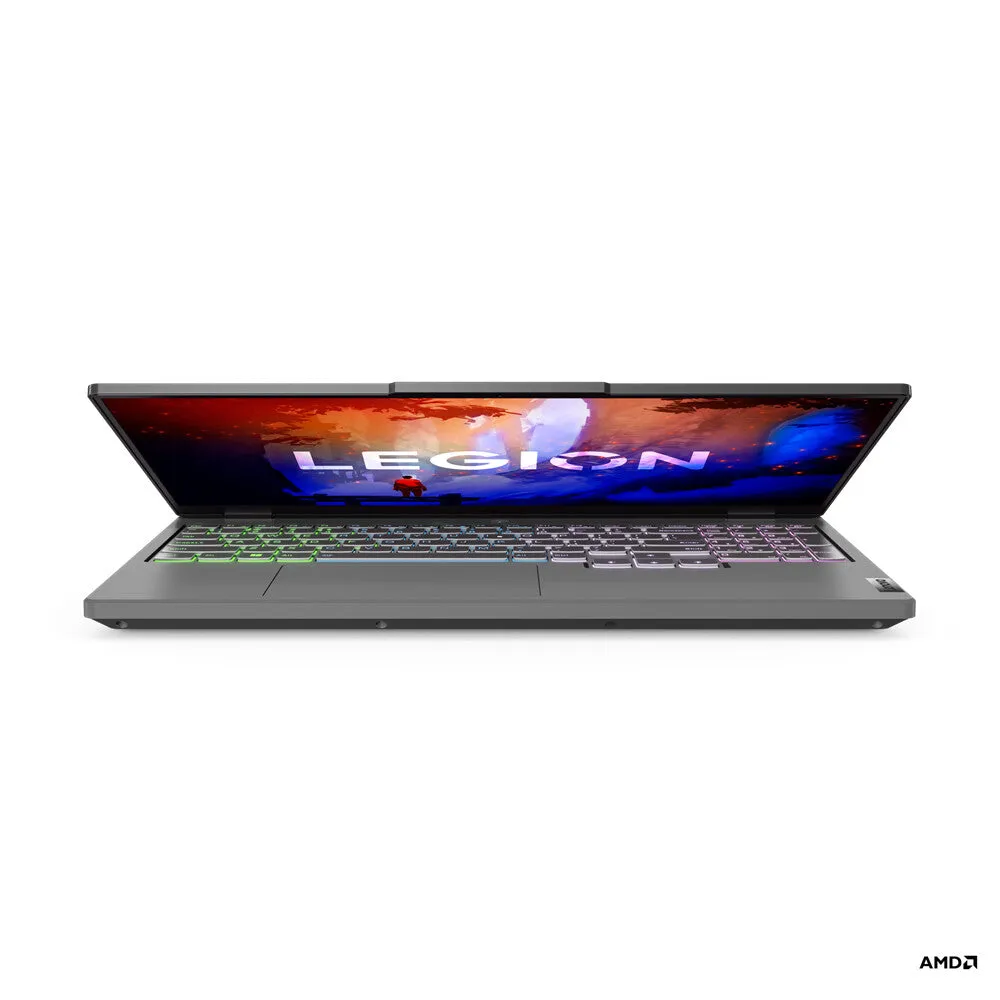

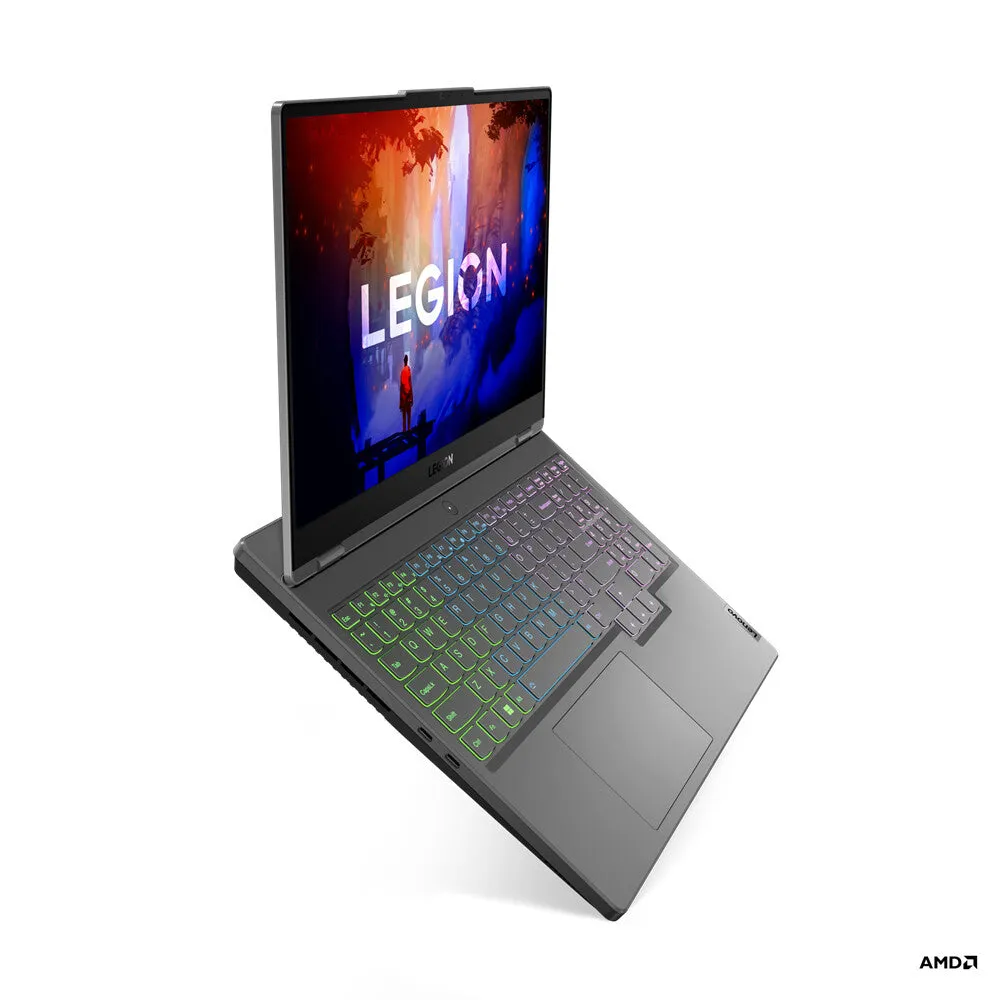

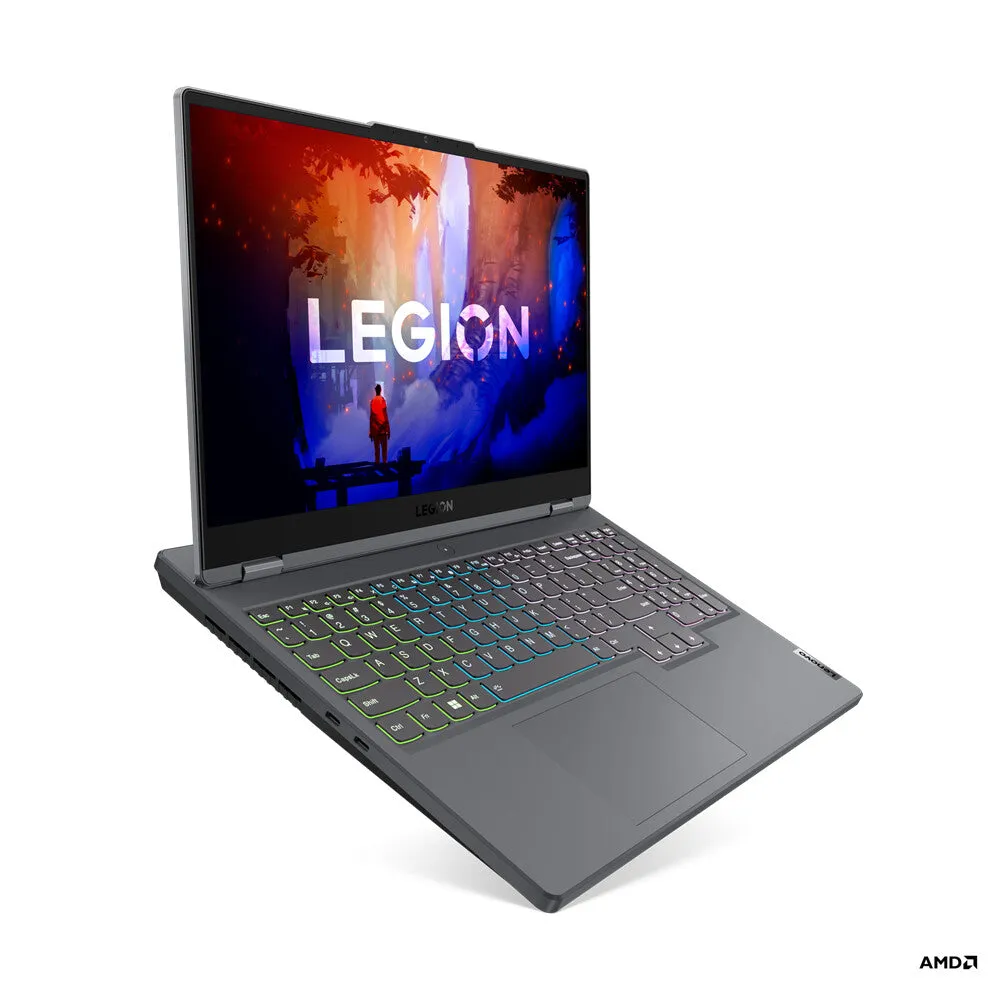

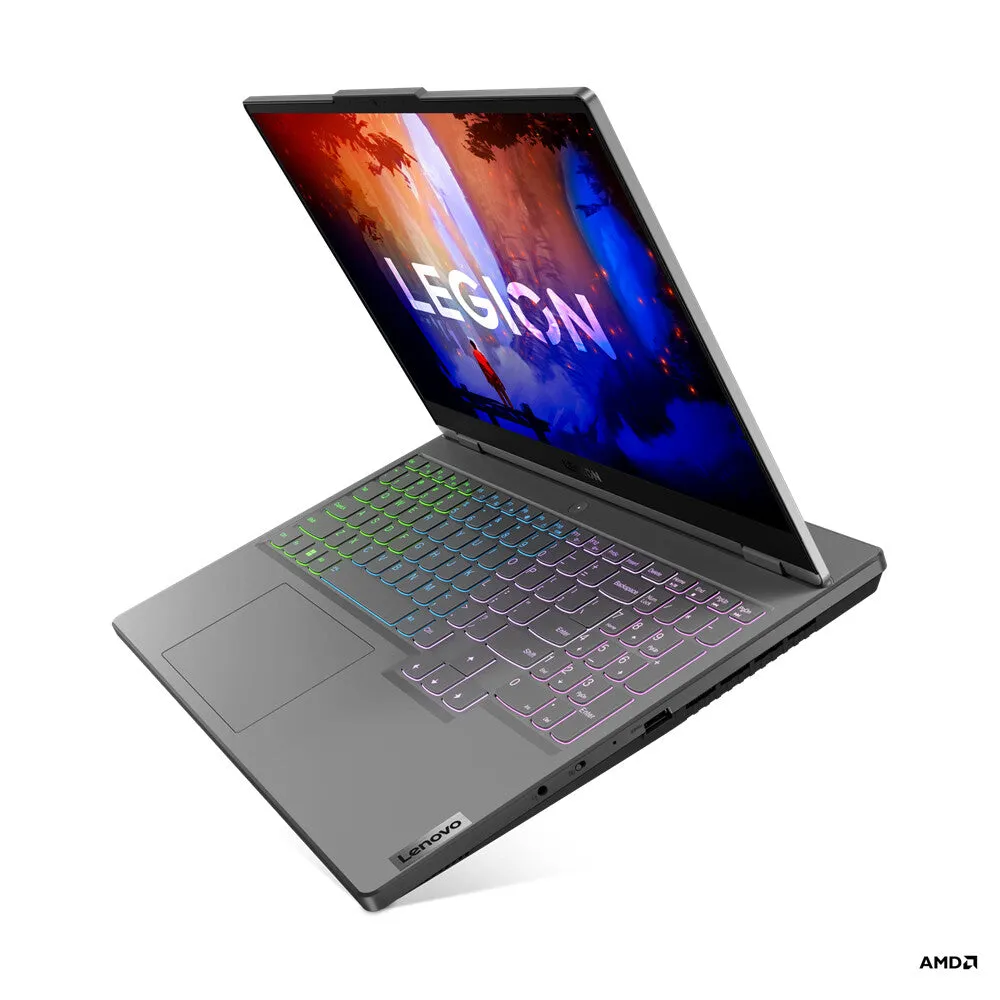

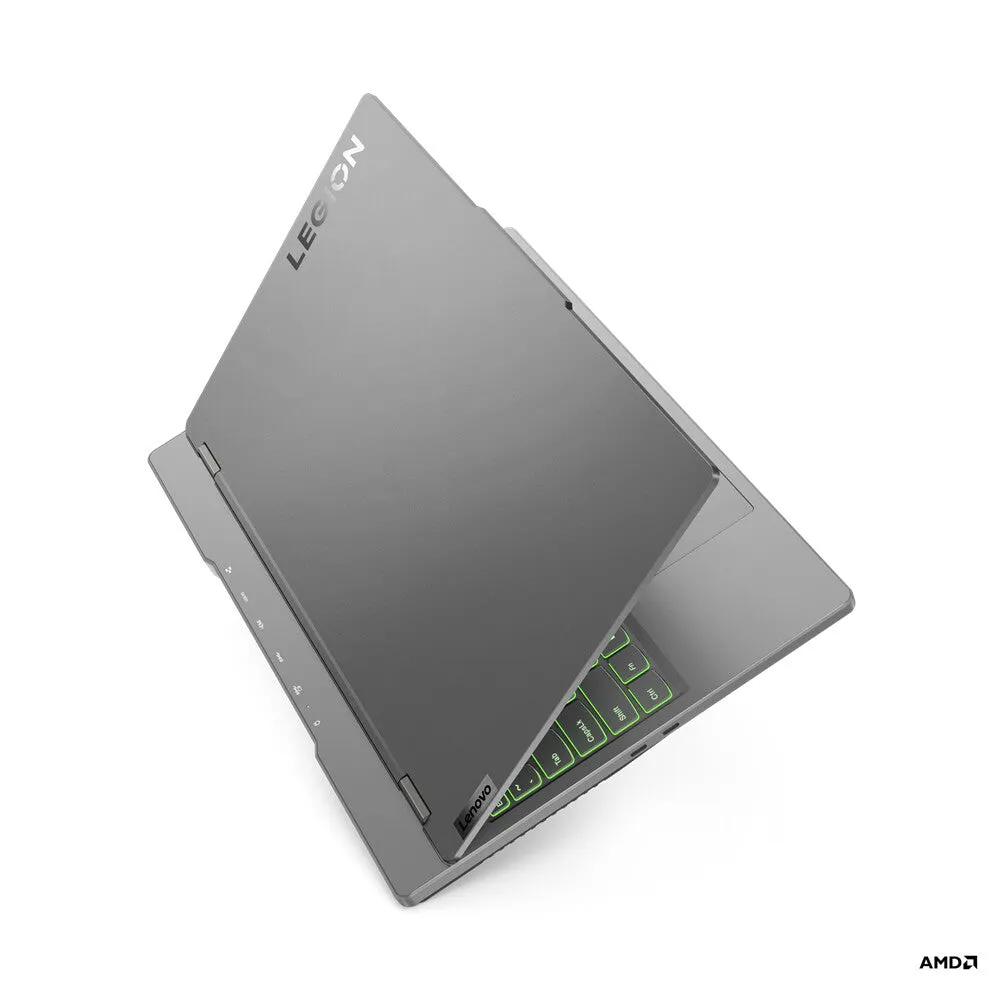

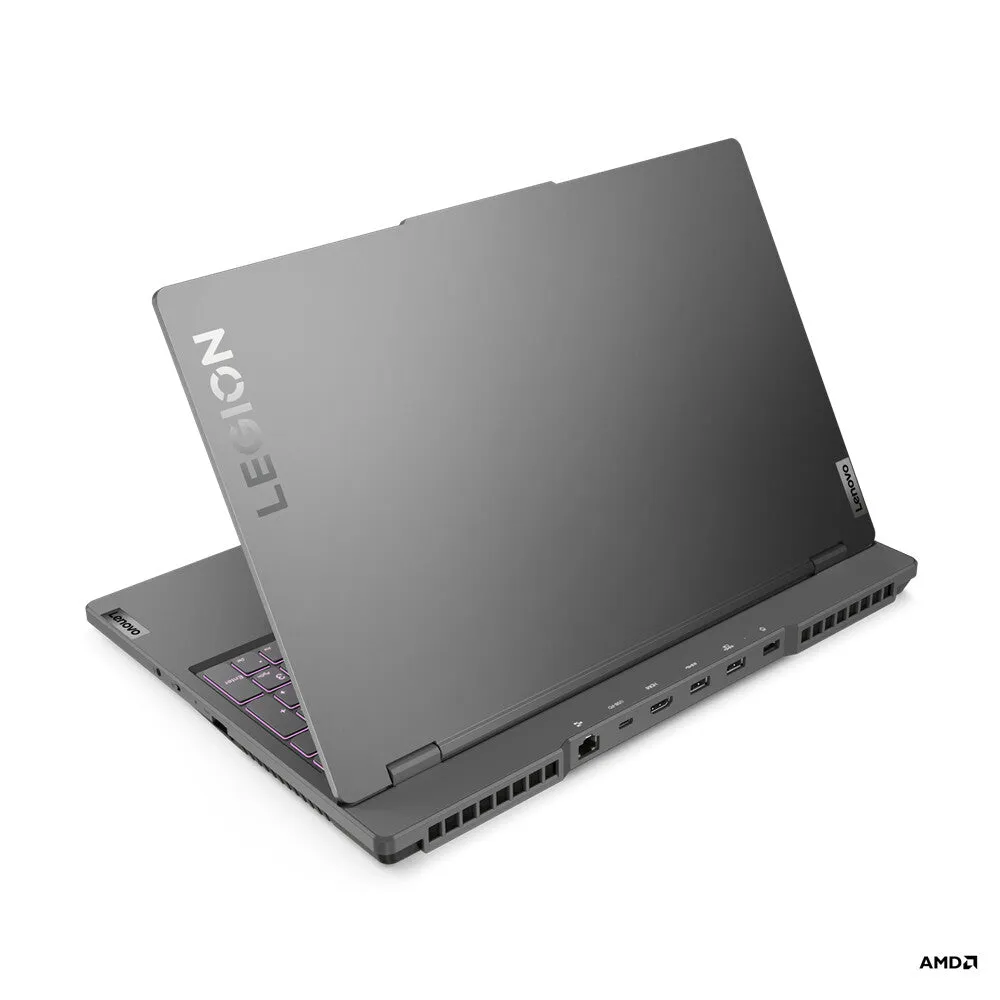

Lenovo Legion 5 15.6" Laptop - AMD Ryzen 7 6800H, 16GB RAM, 512GB SSD, NVIDIA GeForce RTX 3060, Windows 11 Home, Grey/Black
Lenovo Legion 5. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen 7, Processor model: 6800H, Processor frequency: 3.2 GHz. Display diagonal: 39.6 cm (15.6"), HD type: Wide Quad HD, Display resolution: 2560 x 1440 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 680M. Operating system installed: Windows 11 Home. Product colour: Grey, Black
Purpose-built for gamers
- Play with purpose on the latest AMD Ryzen 6000 Series processors
- Enjoy AAA graphics with NVIDIA GeForce RTX 30 series GPUs
- Experience next-gen performance from DDR5 memory
- Execute quick reflexes on a 15.6 screen with up to WQHD resolution & 165Hz refresh rate
- Overclock your game without burning out with Legion Coldfront 4.0 cooling
1-year, Courier or Carry-in
| Design |
|---|
| Country of origin | China |
| Market positioning | Gaming |
| Housing material | Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS), Aluminium |
| Form factor | Clamshell |
| Colour name | Storm grey (top), black (bottom) |
| Product colour | Grey, Black |
| Product type | Laptop |
| Display |
|---|
| High Dynamic Range (HDR) technology | Dolby Vision |
| Contrast ratio (typical) | 1200:1 |
| Maximum refresh rate | 165 Hz |
| Colour gamut | 100% |
| RGB colour space | sRGB |
| Display brightness | 300 cd/m |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| HD type | Wide Quad HD |
| Touchscreen | No |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor |
|---|
| Motherboard chipset | AMD SoC |
| Processor cache type | L3 |
| Processor cache | 16 MB |
| Processor cores | 8 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 3.2 GHz |
| Processor model | 6800H |
| Processor generation | AMD Ryzen 6000 Series |
| Processor family | AMD Ryzen 7 |
| Processor manufacturer | AMD |
| Memory |
|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage |
|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics |
|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| On-board graphics card model | AMD Radeon 680M |
| On-board GPU manufacturer | AMD |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio |
|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Nahimic Audio |
| Audio chip | Realtek ALC3287 |
| Camera |
|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network |
|---|
| Bluetooth version | 5.2 |
| Ethernet LAN data rates | 1000,100 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Bluetooth | Yes |

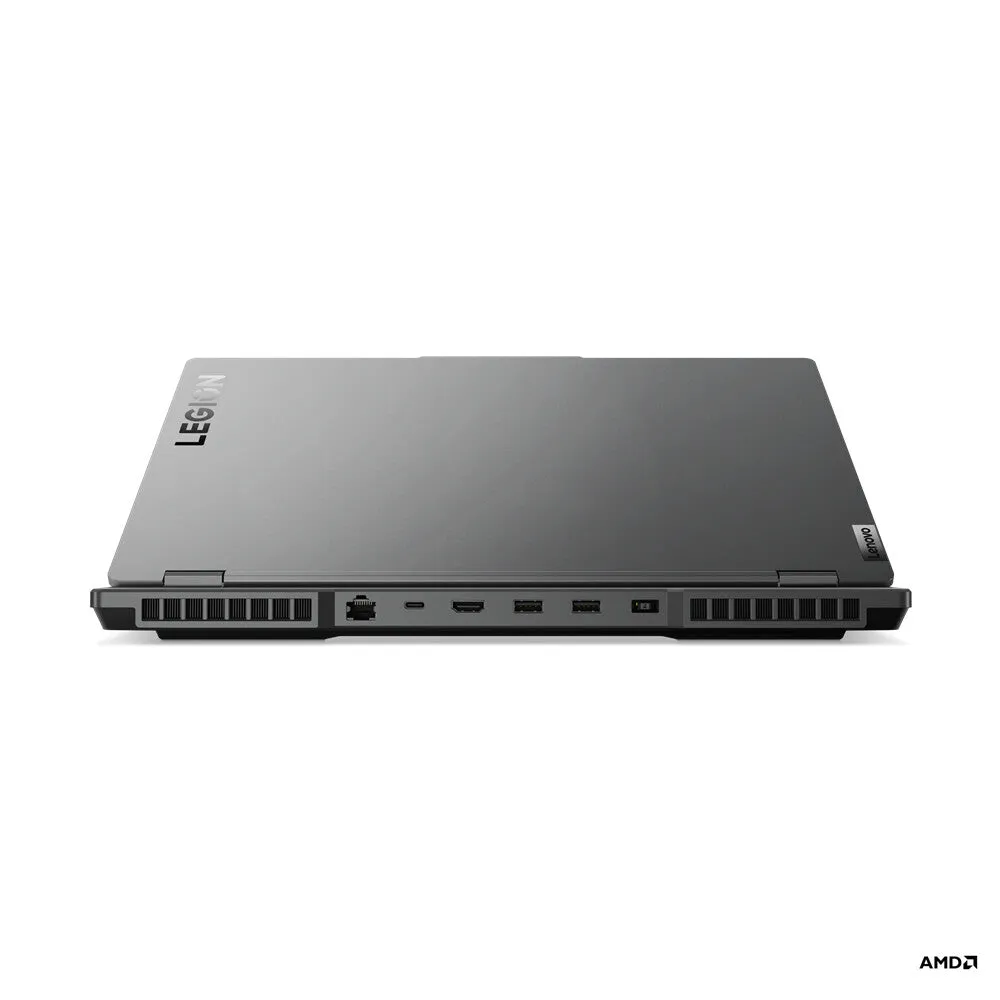

| Ports & interfaces |
|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Keyboard |
|---|
| Keyboard backlit colour | RGB |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software |
|---|
| Trial software | Office |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Battery |
|---|
| Fast charging | Yes |
| Battery life (max) | 10.8 h |
| Battery capacity (Watt-hours) | 80 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power |
|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 300 W |
| Security |
|---|
| Password protection type | Power on, Supervisor, HDD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | No |
| Operational conditions |
|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 C |
| Operating temperature (T-T) | 5 - 35 C |
| Certificates |
|---|
| Certification | ErP Lot 3RoHS compliant |
| Compliance certificates | RoHS |
| Weight & dimensions |
|---|
| Height | 20 mm |
| Depth | 262.4 mm |
| Width | 358.8 mm |
| Weight | 2.4 kg |
| Packaging data |
|---|
| Package weight | 2.59 kg |
| Package height | 86 mm |
| Package depth | 344 mm |
| Package width | 541 mm |
| General |
|---|
| Product family | Legion |
| Logistics data |
|---|
| Harmonized System (HS) code | 8471300000 |
