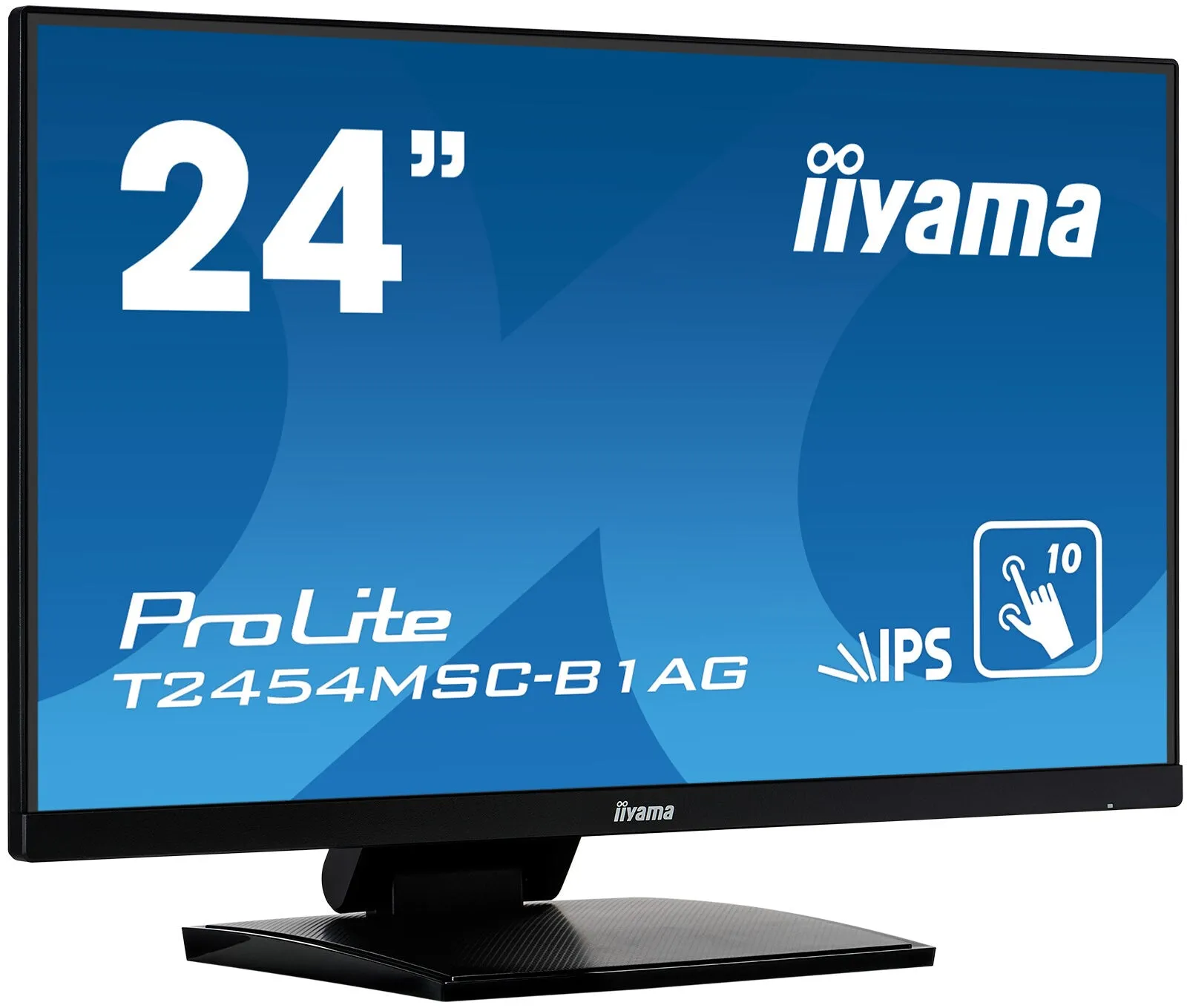

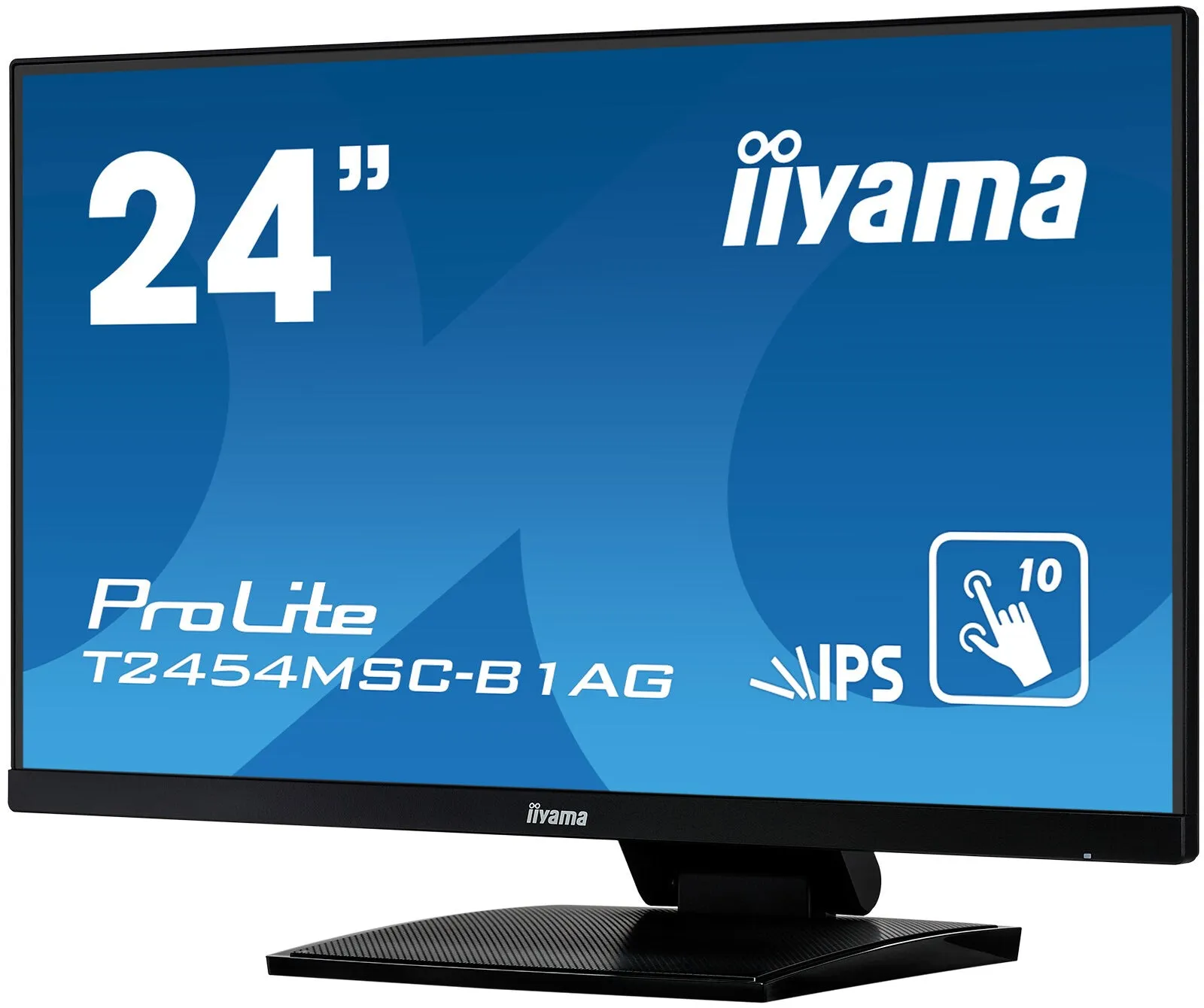

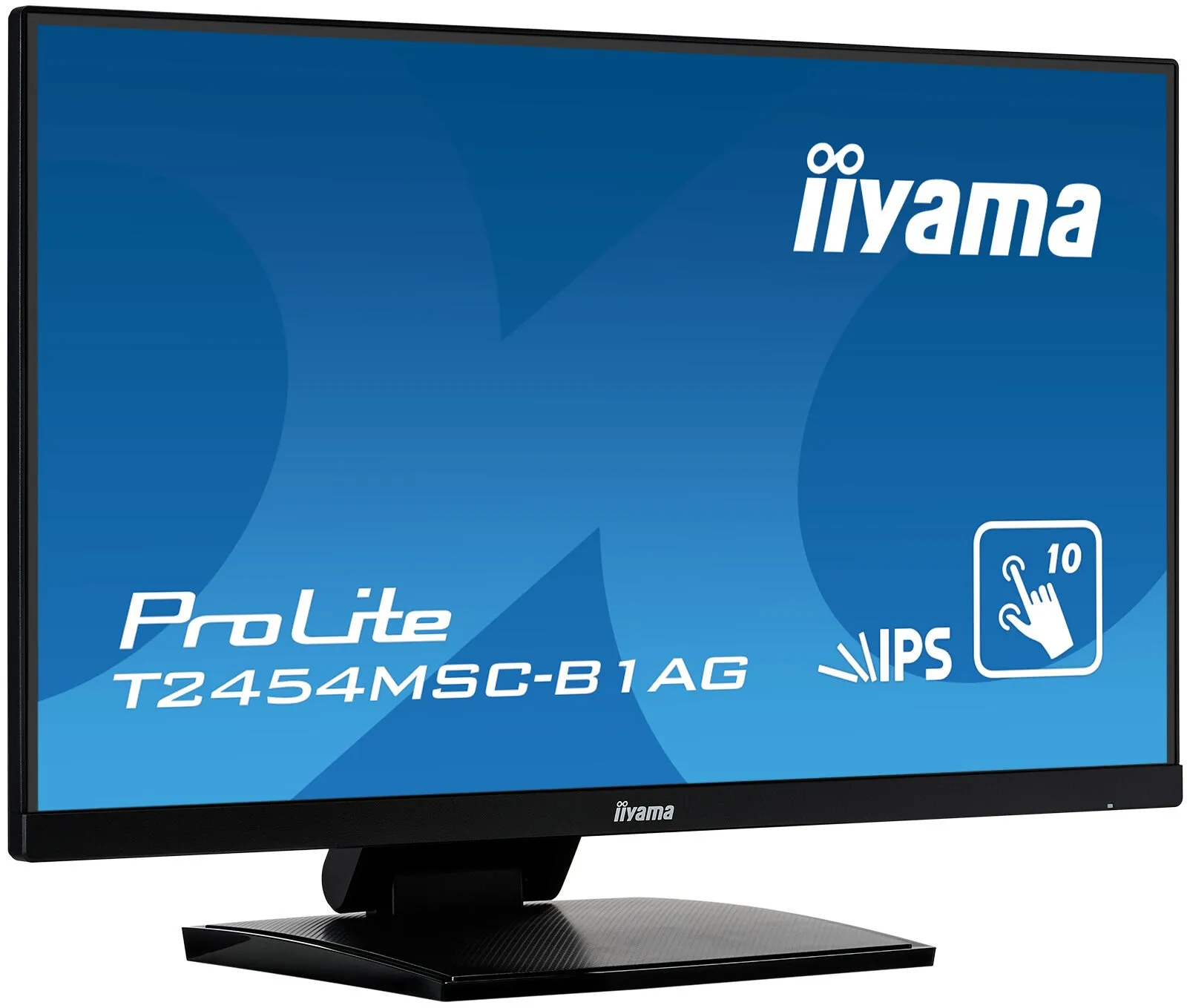

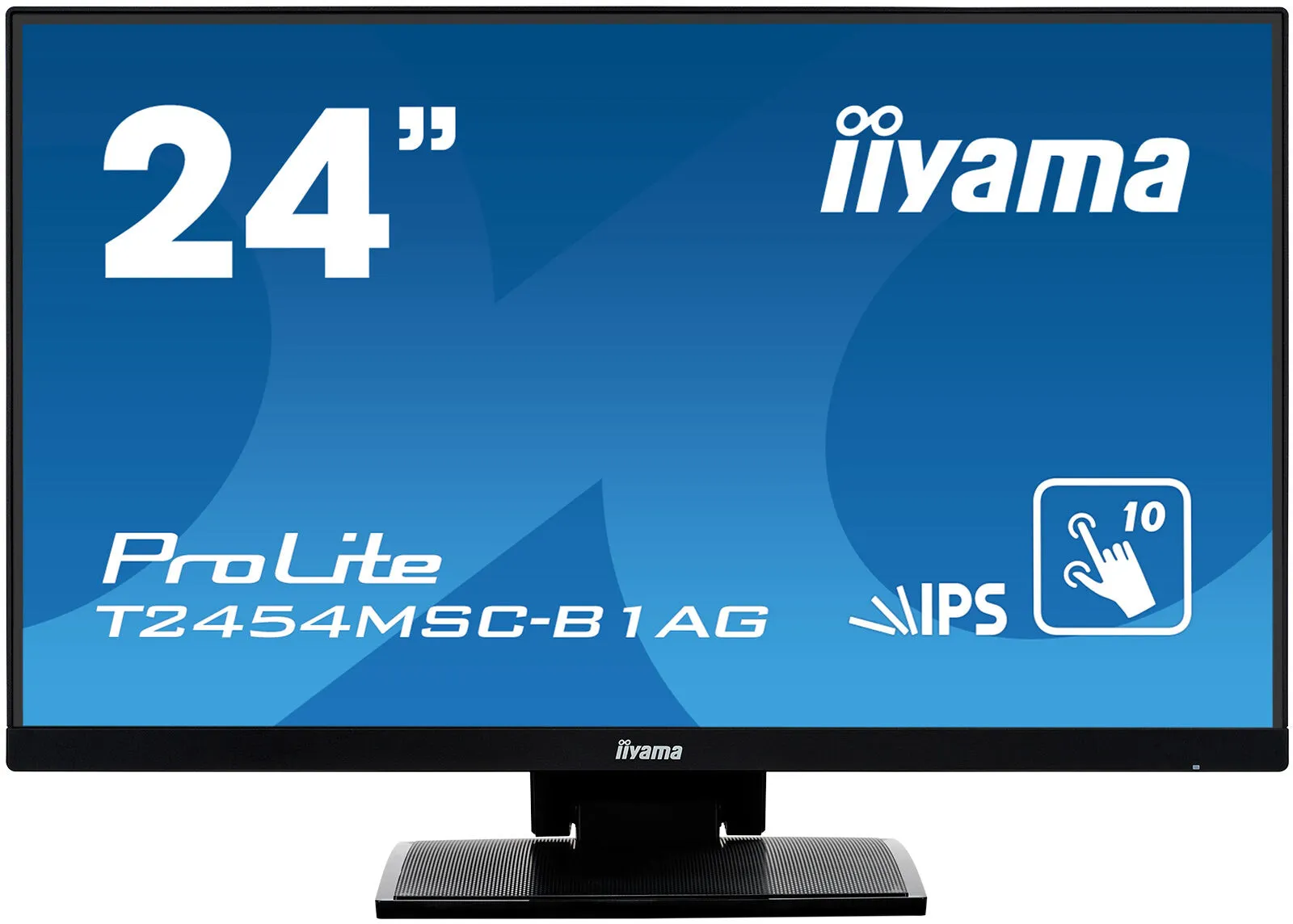

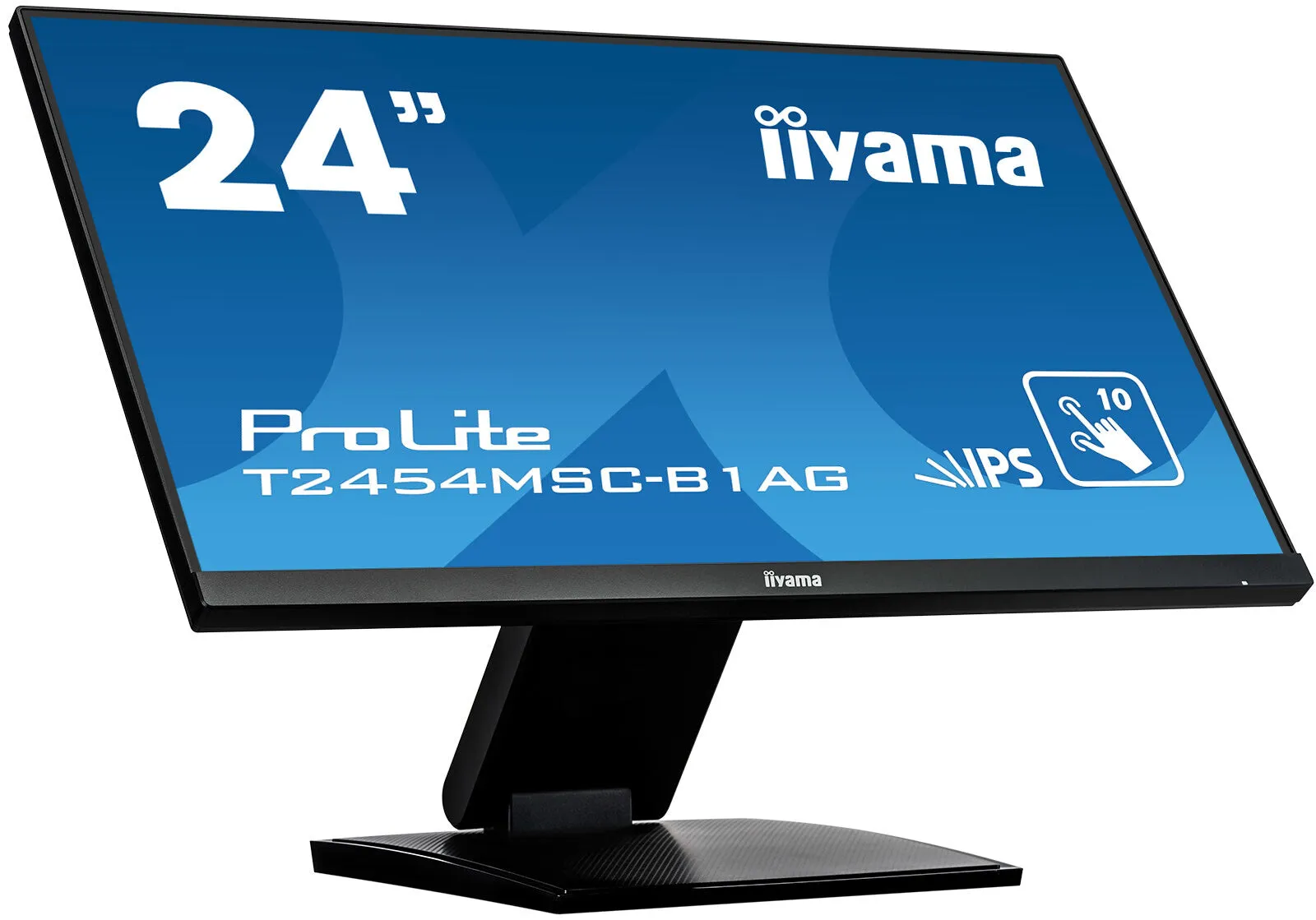

iiyama ProLite T2454MSC-B1AG 23.8" Full HD Monitor - 4ms, IPS, Height Adjustable, Speakers, Black
iiyama ProLite T2454MSC-B1AG. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178, Viewing angle, vertical: 178. Built-in speaker(s). VESA mounting, Height adjustment. Product colour: Black
24 P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating

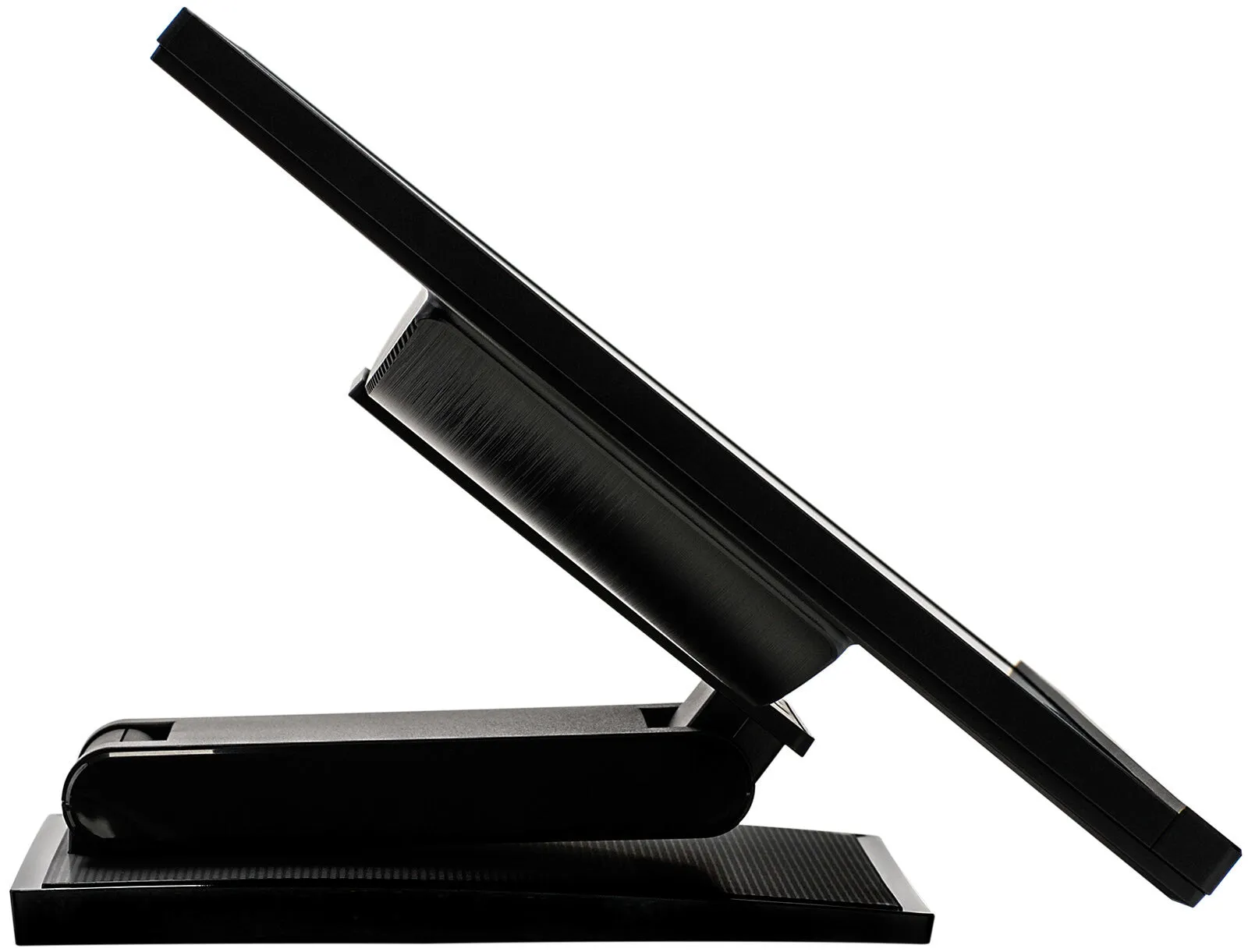

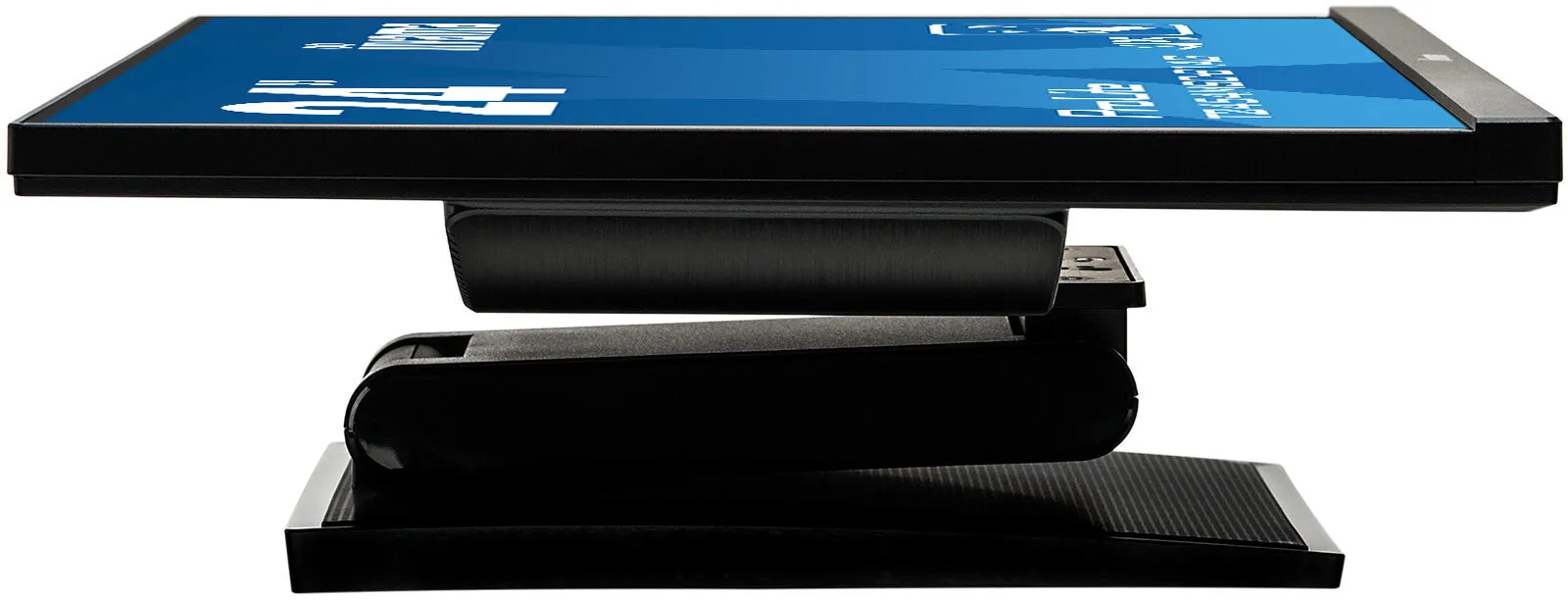

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
AG COATING
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.

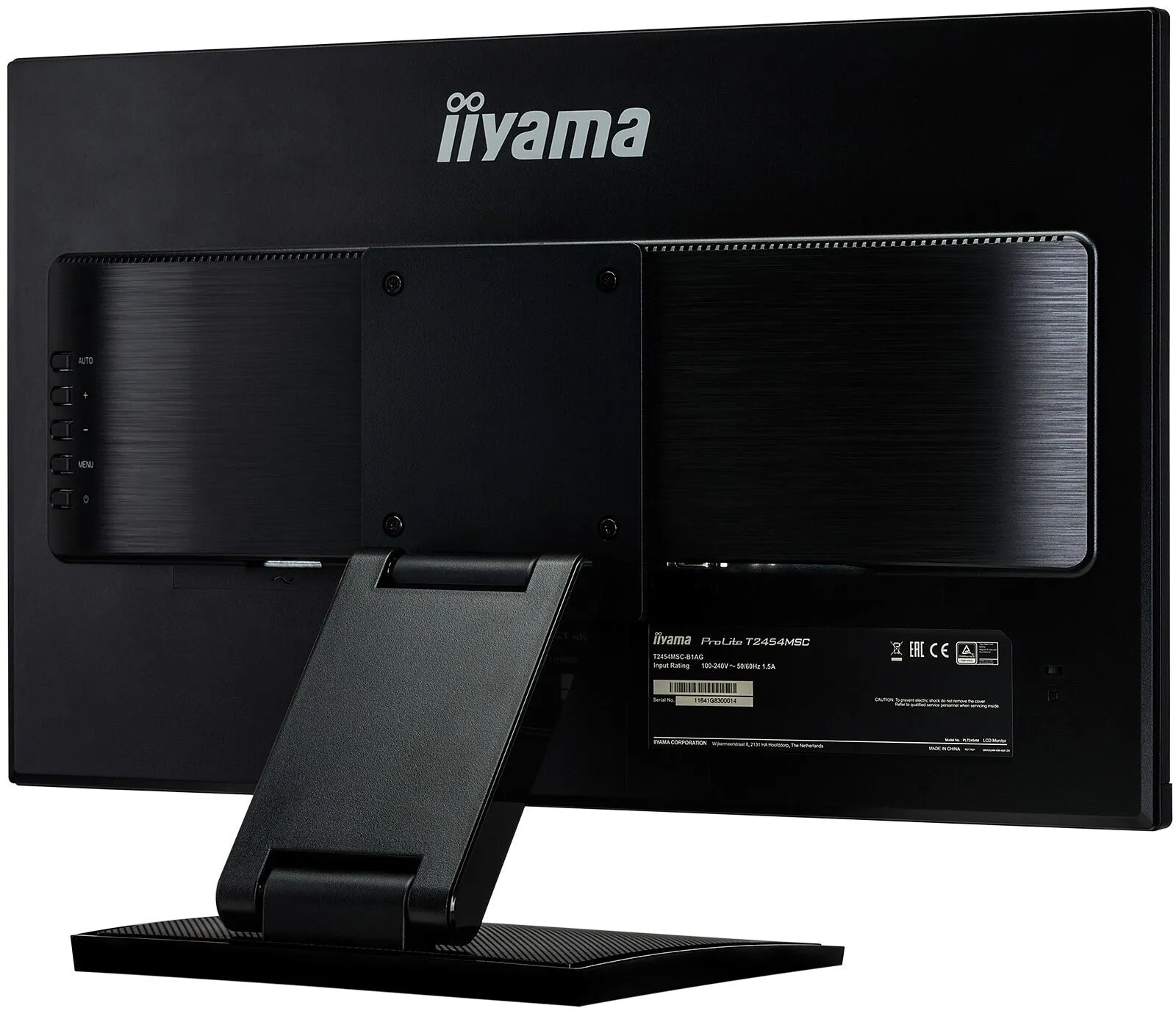

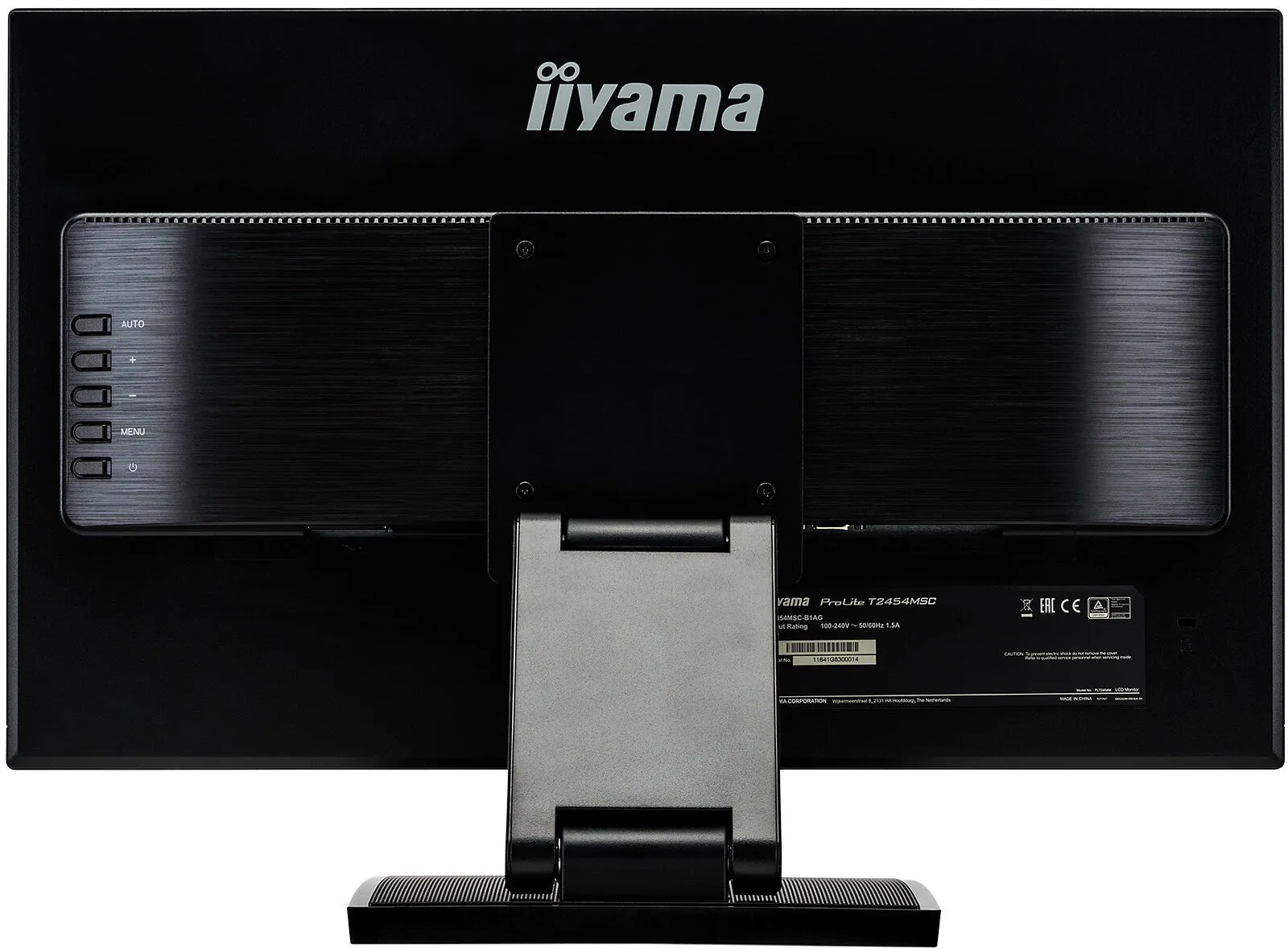

VESA
VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.
3 year
| Display |
|---|
| Display diagonal (metric) | 60.5 cm |
| Vertical scan range | 56 - 75 Hz |
| Horizontal scan range | 30 - 80 kHz |
| Pixel pitch | 0.274 x 0.274 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178 |
| Viewing angle, horizontal | 178 |
| Contrast ratio (dynamic) | 5000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA ), 1680 x 1050 (WSXGA ), 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Display technology | LED |
| HD type | Full HD |
| Response time | 4 ms |
| Display brightness | 250 cd/m |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance |
|---|
| OmniTapps Multitouch compatibility | No |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia |
|---|
| Built-in microphone | No |
| Megapixel | 2.1 MP |
| RMS rated power | 4 W |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design |
|---|
| Certification | CE, TV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB |
| International Protection (IP) code | IPX1 |
| Product colour | Black |

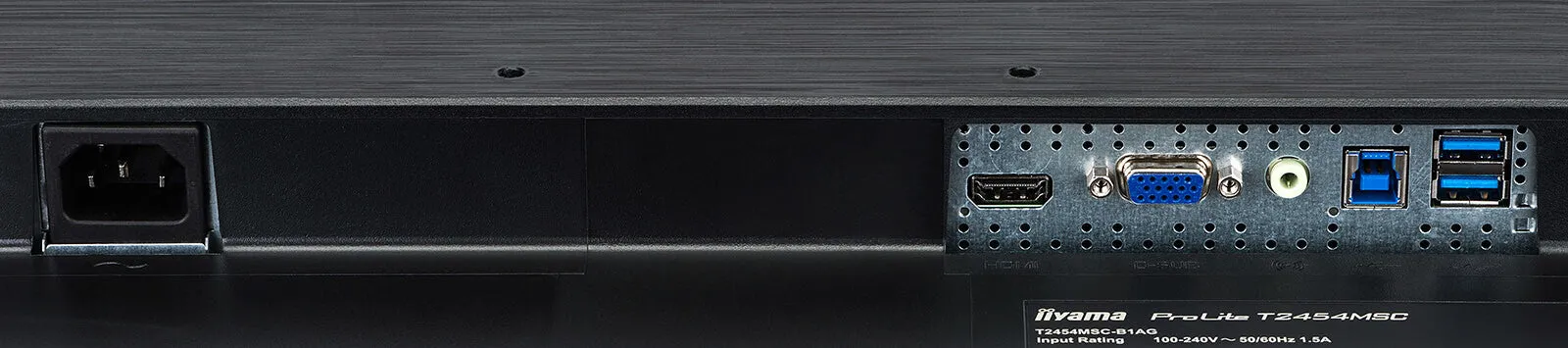

| Ports & interfaces |
|---|
| HDCP | Yes |
| Audio input | 3.5mm |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| USB Type-A downstream ports quantity | 1 |
| Number of upstream ports | 1 |
| Ergonomics |
|---|
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Number of OSD languages | 10 |
| Tilt angle range | -5 - 90 |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Adjustable height (max) | 7 cm |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power |
|---|
| Energy efficiency scale | A to G |
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 24 W |
| Energy consumption (SDR) per 1000 hours | 20 kWh |
| Energy efficiency class (SDR) | F |
| Operational conditions |
|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 C |
| Operating temperature (T-T) | 5 - 35 C |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code | 366281 |
| General |
|---|
| Product family | ProLite |
| Weight & dimensions |
|---|
| Height (without stand) | 322.5 mm |
| Depth (without stand) | 46.5 mm |
| Width (without stand) | 540.5 mm |
| Weight (with stand) | 5.5 kg |
| Height (with stand) | 388 mm |
| Depth (with stand) | 128 mm |
| Width (with stand) | 540.5 mm |
| Packaging data |
|---|
| Quick start guide | Yes |

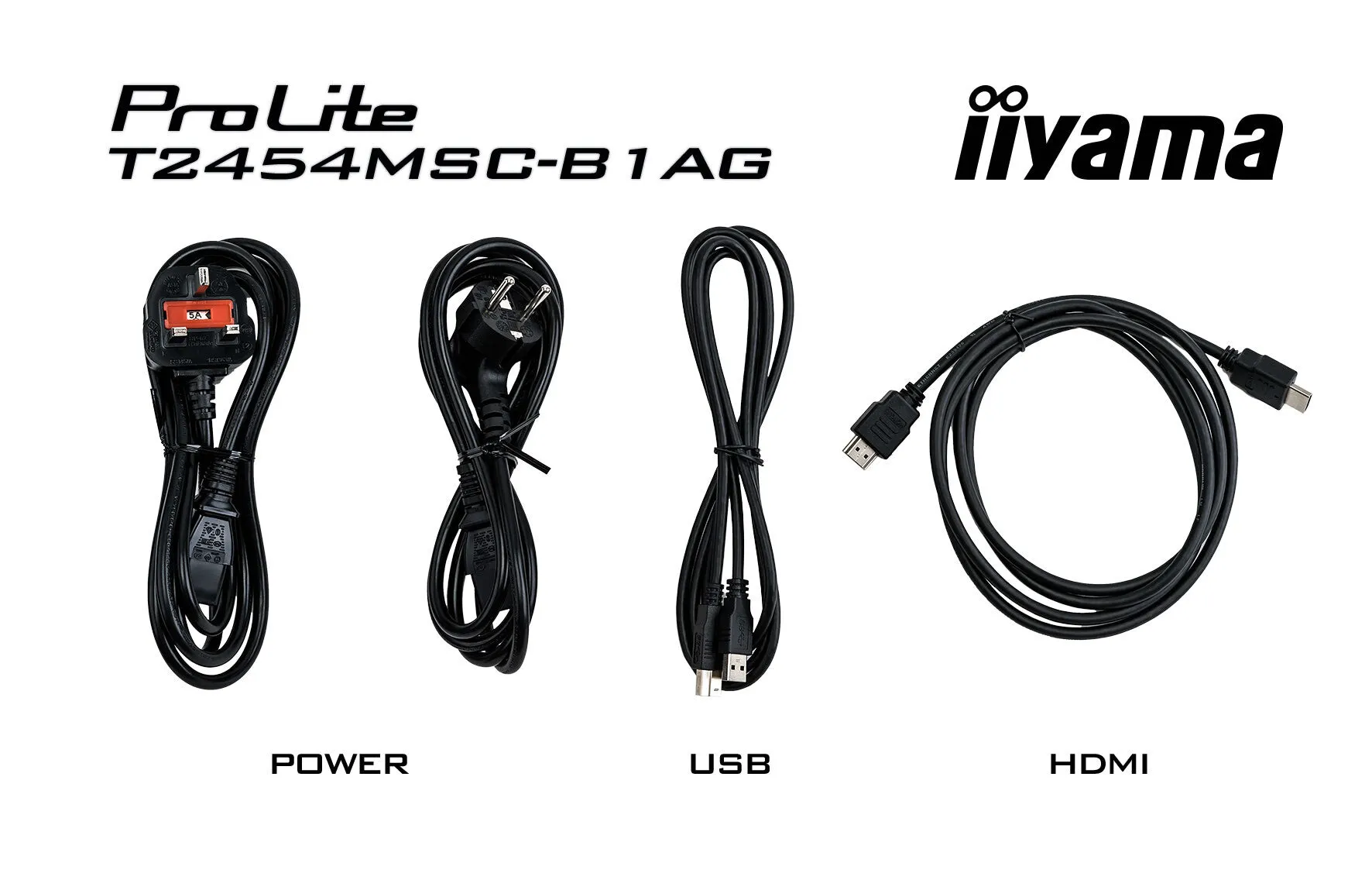

| Cables included | AC, HDMI, USB, VGA |
| Logistics data |
|---|
| Harmonized System (HS) code | 85285210 |
| Technical details |
|---|
| Compliance certificates | RoHS |
| Other features |
|---|
| Mean time between failures (MTBF) | 30000 h |
| Full HD | Yes |
| Number of simultaneous touchpoints | 10 |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |

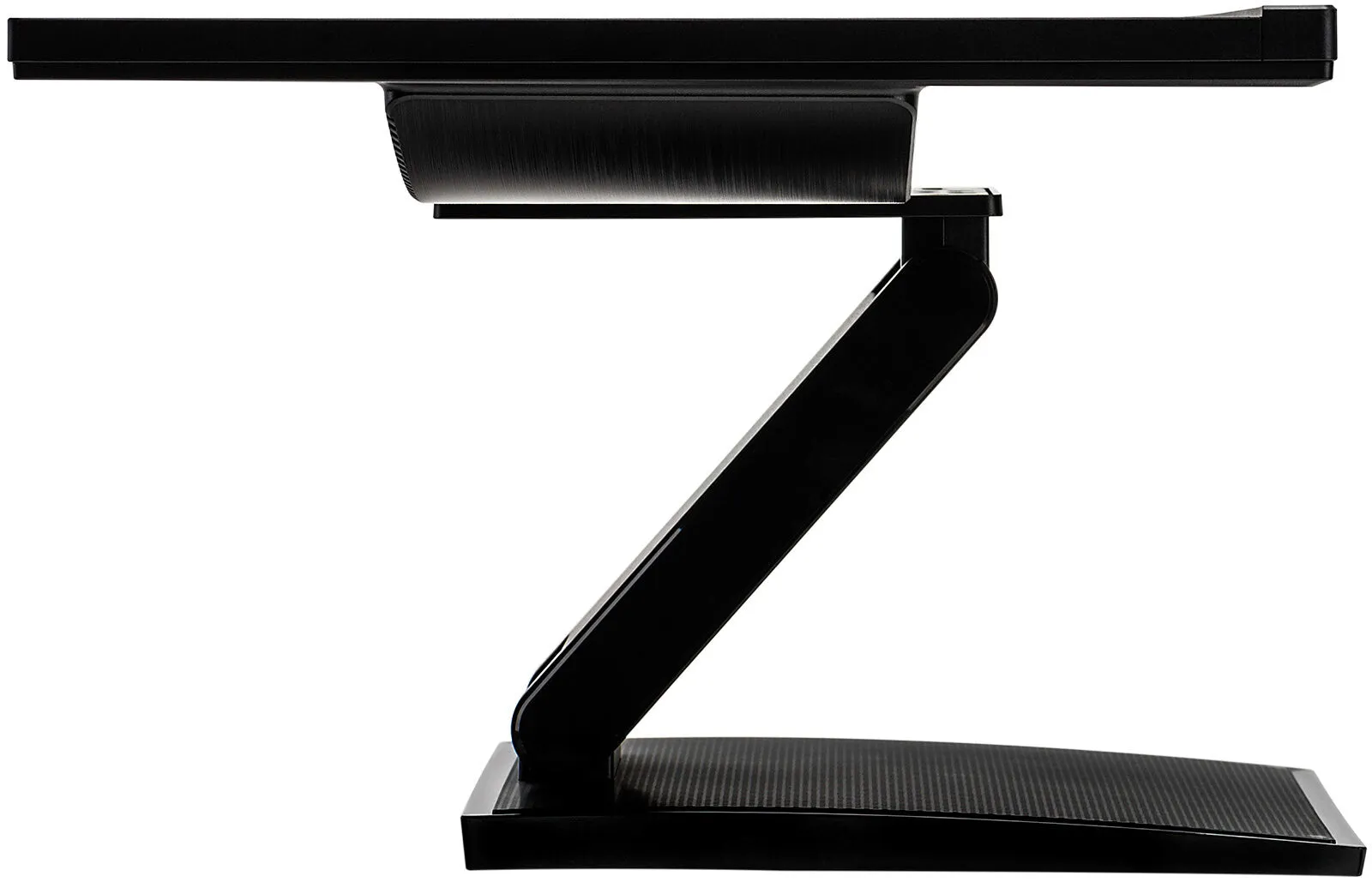

| Placement supported | Horizontal/Vertical |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Dimensions (W x D x H) with stand | 540.5 x 128 x 388 mm |
