Overview

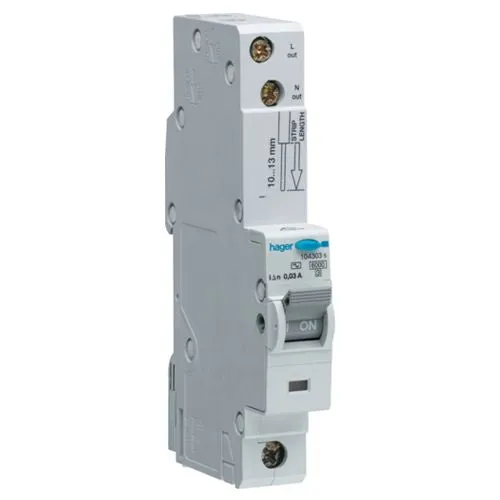

The ADA316G is a 16A, 30mA RCBO from Hager’s range of reduced height, Type A protection devices: combining the overcurrent functions of an MCB with the earth fault functions of an RCCB. Designed to avoid danger and inconvenience in the event of a circuit fault, this 6kA, B-curve RCBO can be installed in a consumer unit to protect wiring concealed in walls or partitions for residential applications.
The RCBO has a 200mm flying neutral lead and its reduced height provides increased wiring space during installation. A bottom din rail clip also allows the product to be removed from a consumer unit without the need to remove the busbar.
Connection capacity: Rigid = 16mm², Flexible = 10mm²
Designed for use in 18th Edition, Hager domestic consumer units, the ADA316G RCBO protects against both earth leakage and fault, preventing injury to humans and saving devices from current overload.
The new ADA RCBOs offer all the same functionality of the ADN range but in the more convenient compact size of a traditional MCB.
Key Features
Dimension 6kA 25A 30mA 92x17.7x73.6mm Circuit Breakers|Description|Product Circuit Breaker Circuit Breakers|Description|Type (Cable Baskets) RCBO Circuit Breakers|Features|Pole Configuration Single Pole (1P) Circuit Breakers|Features|Mounting DIN Rail Circuit Breakers|Features|Ingress Protection IP20 Circuit Breakers|Features|Trip Type Type B Circuit Breakers|Features|Short Circuit Rating 6 kA Circuit Breakers|Features|Sensitivity 30 mA Circuit Breakers|Dimensions|Height 92 mm Circuit Breakers|Dimensions|Width 17.5 mm Circuit Breakers|Dimensions|Depth 70 mm Circuit Breakers|Technical Data|Current Rating 16 A Circuit Breakers|Technical Data|Voltage 230 V Circuit Breakers|General|Standards BSEN61009 Circuit Breakers|Description|Type RCBO Circuit Breakers|Dimensions|Cable Capacity 16 mm2 Circuit Breakers|Features|Ingress Protection IP20 Circuit Breakers|Dimensions|Height 92 mm Circuit Breakers|Dimensions|Width 17.5 mm Circuit Breakers|Dimensions|Depth 70 mm Circuit Breakers|Technical Data|Current Rating 25 A Circuit Breakers|Features|Mounting DIN Rail Circuit Breakers|Dimensions|Height 92 mm Circuit Breakers|Dimensions|Width 17.5 mm Circuit Breakers|Dimensions|Depth 70 mm Manufacturer Hager Ltd - Energy Distribution
